64W PRO 3-in-1 Laser Head

64W PRO Laser Head – High-Power Upgrade & Replacement Module

Take your CNC laser performance to the next level with the 64W PRO Laser Head — now available as a standalone upgrade or replacement for existing J Tech Photonics laser systems. Built from the same high-performance design as the full 64W PRO Laser Kit, this laser head is perfect for users who are replacing a worn unit or upgrading* from a lower-power module to powerful, professional-grade cutting and engraving capabilities.

Why Choose the 64W PRO Laser Head?

Whether you’re upgrading* an older laser or replacing a damaged head, the 64W PRO Laser Head delivers raw power and versatility:

• 🔥 Industry-Leading Power: Delivers over 64W of optical output with a combination of multiple high-power diode lasers — giving you cutting performance comparable to entry-level CO₂ laser systems.

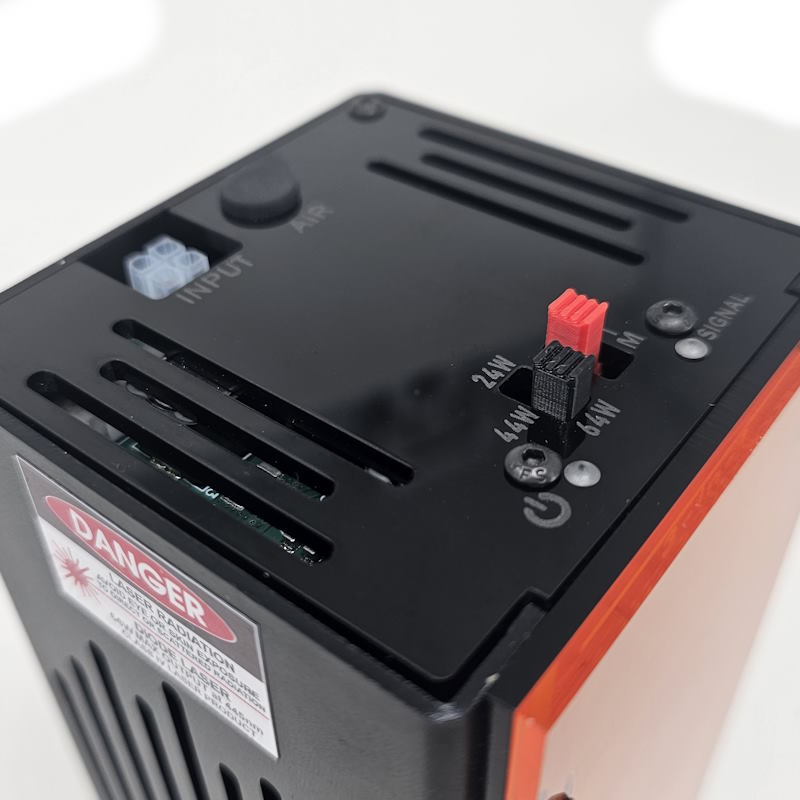

• 🎯 Three Levels of Performance: Switch between power modes for cutting, medium-power, or fine-detail engraving — all from one laser head.

• 💡 Focused Precision: Small spot sizes for exceptional detail work and crisp engraving quality.

• ⚙️ Safety-First Design: Includes integrated safety technology such as tilt-sensing and compatibility with key-switch interlocks when paired with your safety interface module (sold separately).

• Engineered in America: Designed and manufactured with quality components you can trust.

---

Ideal For:

• Replacing a failing or outdated laser head

• Upgrading from lower-power J Tech lasers to professional-level cutting speed and depth (contact sales to see if you qualify)

• Makers, engineers, and fabricators looking to expand material capability on their CNC platform

---

Technical Highlights

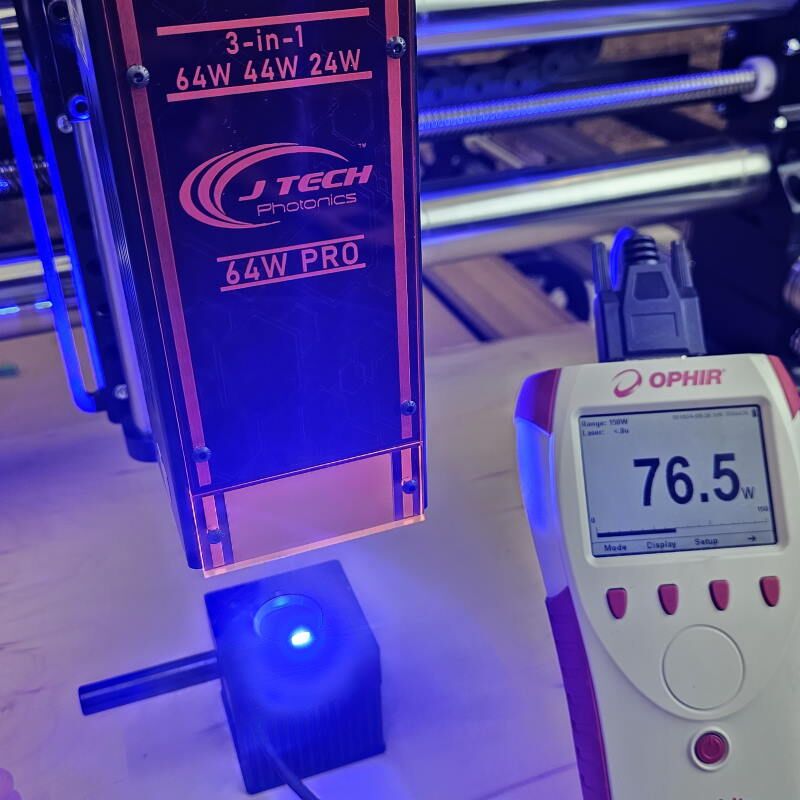

• Maximum Optical Power: >64W (nominal)

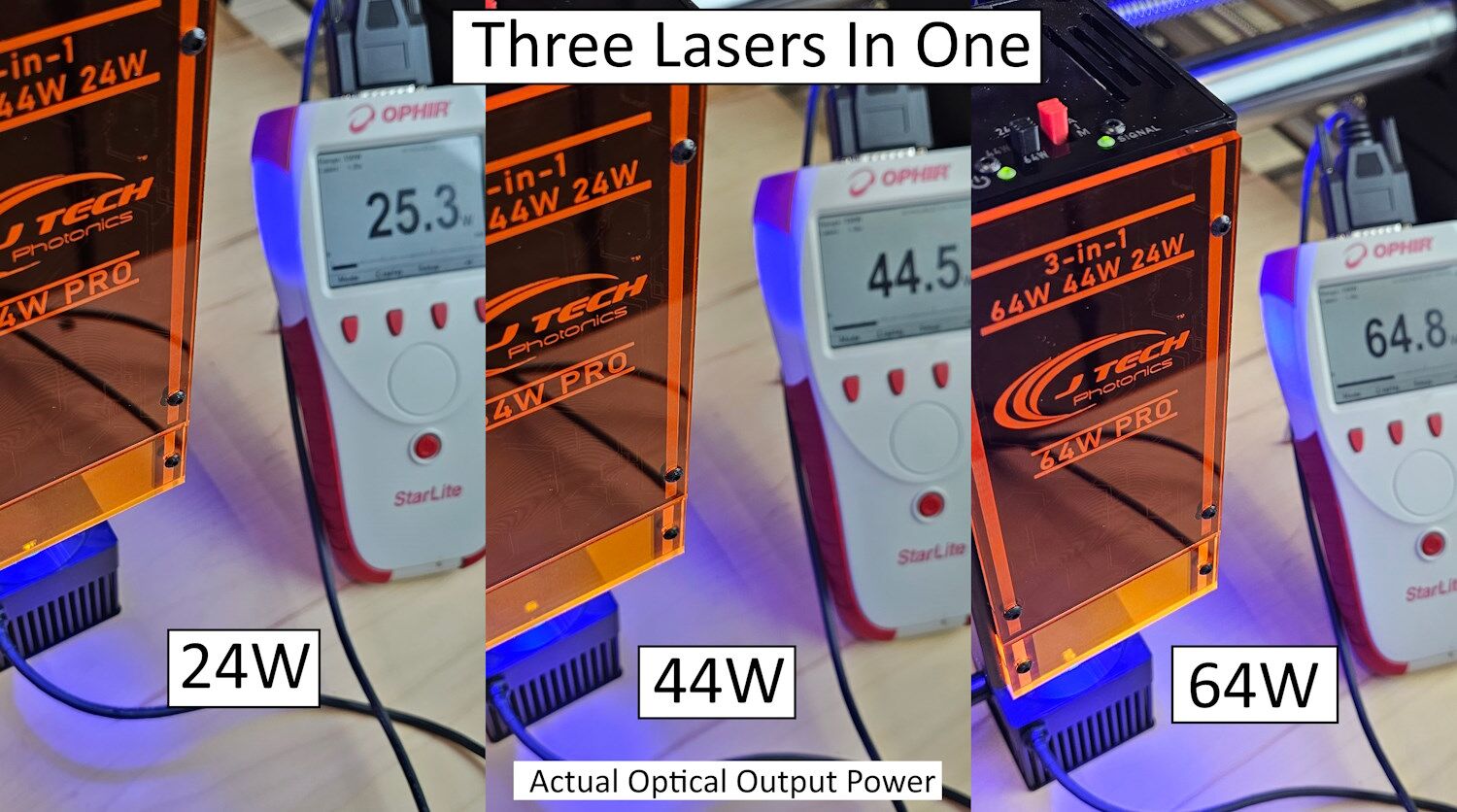

• Multi-Mode Output: 64W / 44W / 24W performance options

• Wavelength: ~455 nm (blue diode)

• Designed for modular integration into existing setups

---

What’s Included (Laser Head Only)

• 64W PRO Laser Head with metal magnetic shroud

• Focus alignment tool

⚠️ Safety Note: A compatible safety interface board, power supply, and fume/air management accessories must be used for proper operation. These may be sourced separately or paired with existing system components.

---

*Perfect Upgrade Path

Already using a J Tech Photonics laser but craving more power and capability? This laser head lets you harness cutting-edge performance without buying a full kit again. Ideal for professional workshops and serious hobbyists alike. Please contact sales to make sure you qualify as an existing J Tech customer.

Specifications

Maximum Laser Optical Power	>64W
Laser Spot 64W	0.15 x 0.25mm
Laser Spot 44W	0.15 x 0.18mm
Laser Spot 24W	0.15 x 0.15mm
Wavelength	455± 5nm
Integrated Safety Feature	Angle sensor, 45 degree
Operating Temperature:	5 to 40 °C
Storage Temperature:	1 to 45 °C
