Solid V Wheel Kit for V-Slot Linear Rail

$19.99

Complete wheel kit for use with V-Slot Linear Rails.

SKU: N/A Category:

Description

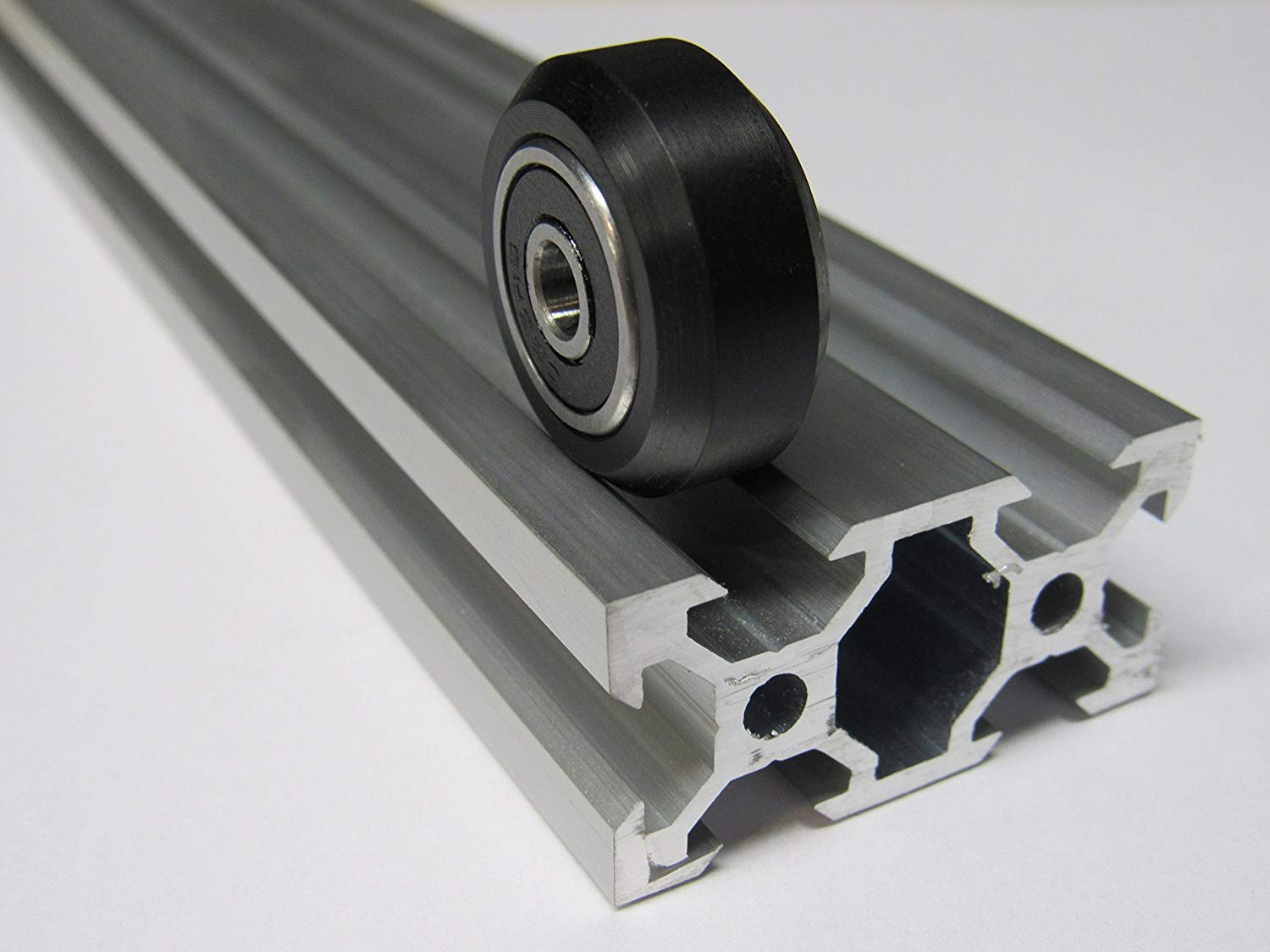

Complete kit includes all assembly hardware. Precise smooth motion for light to medium duty applications ie: Laser Bot, 3D Printer.  Flat surface with a V shaped outer edge allows the wheel to center ride in the track of V-Slot Linear Rail.  Flat profile designed to work effortlessly with a belt on a belt and pinion system as well as lead screw and belt driven systems.

Product Features

  • Long lasting solid construction
  • Ultra smooth finish for precise motion
  • Flat wheel surface for belt travel (belt & pinion option)
  • Self-Centering and Self- Lubricating
  • Even distribution of weight
  • Easily assembled and maintained

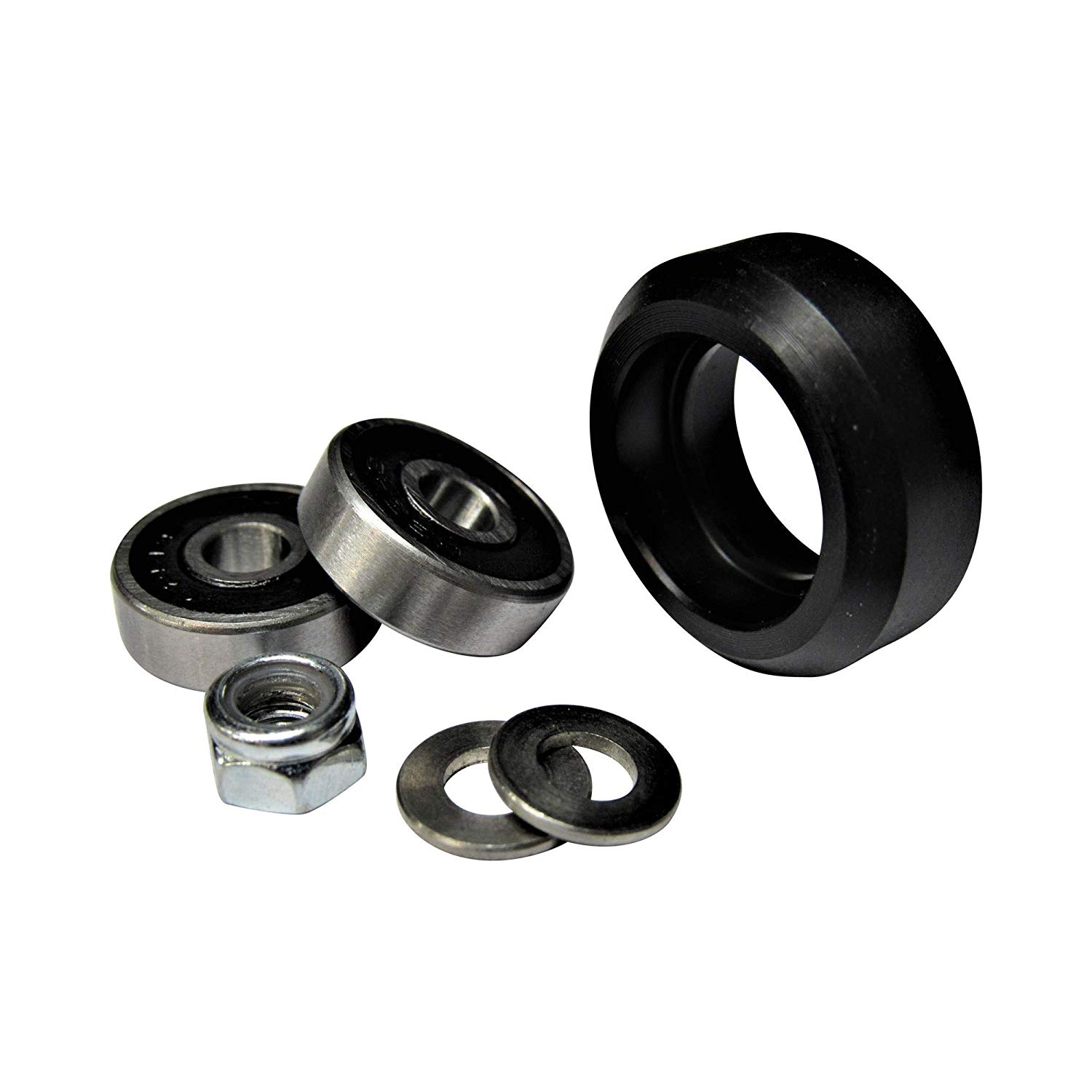

What is included

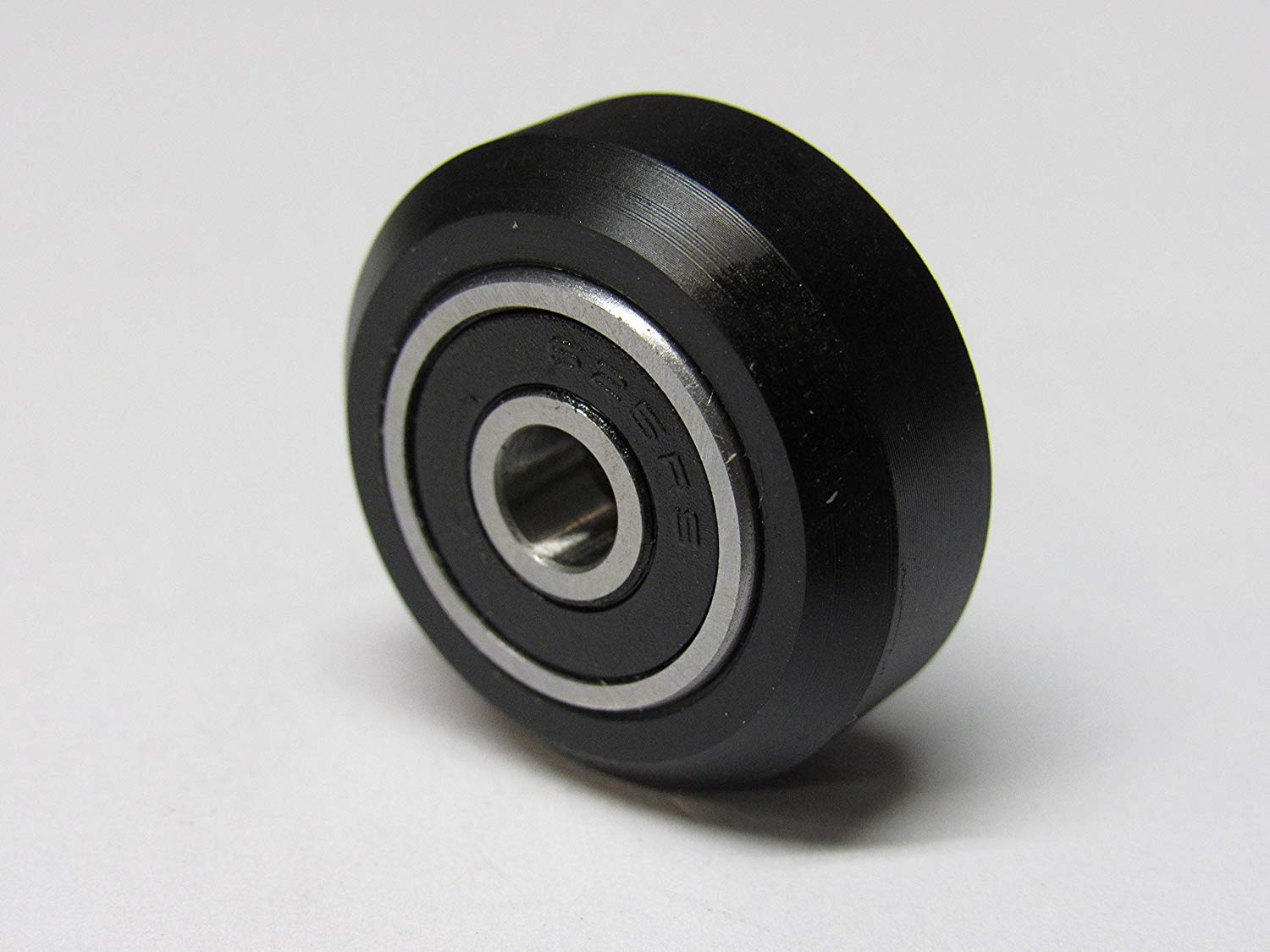

  • (1) Solid V Wheel
  • (2)Ball Bearings – 625 RS
  • (2)5mm Precision Shims
  • (1) M5 Nylon Lock Nut

Product Specifications

  • Rockwell Hardness: M80
  • Compression Strength: 63MPA
  • OD: 23.90mm
  • ID: 16mm
  • Thick: 10.23mm
  • Material: Delrin
  • Color: Black

Additional information

Weight N/A
Dimensions N/A
Pack Option

Pack of 12 Wheel Kits
