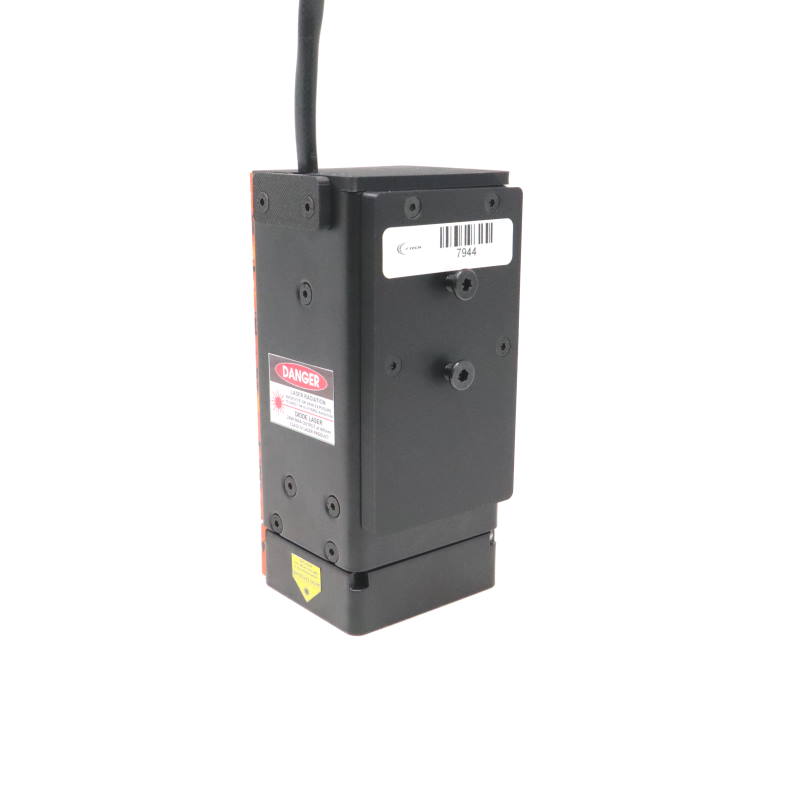

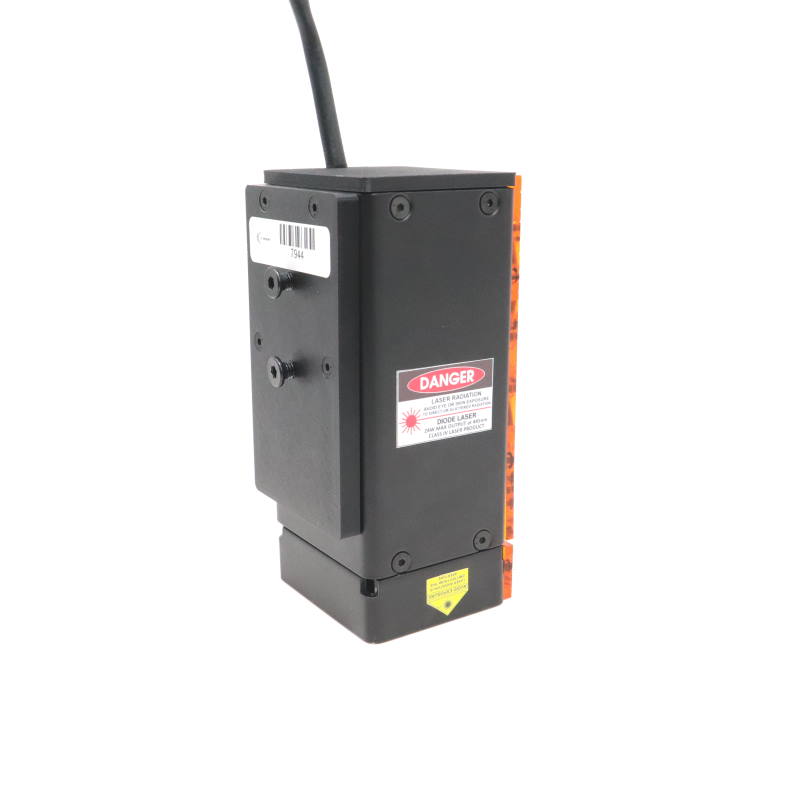

24W Quad PRO Laser Kit with Air Assist

$1,399.99

Bigger, Better, Faster, Stronger!

Our most powerful laser yet.  Combination of FOUR 7W diodes in one compact laser package to produce an amazing 24W of optical output power.  The enhanced magnetic mounting system locks the laser in place on your machine and allows for you to increase your cutting ability for your projects you only dreamed of doing before this laser.

With increased safety features and new electronics, this laser will be a great addition to your CNC machine.  Combine with one of our magnetic mounting kits and you are good to go.

Does not come with a mounting kit.  Purchase one here:
Mounting Kits

Description

Bigger, Better, Faster, Stronger

24W QUAD PRO LASER



Our most powerful laser yet.  Is it possible to combine four 7W laser diodes together in one laser?  The answer our engineers said is YES!

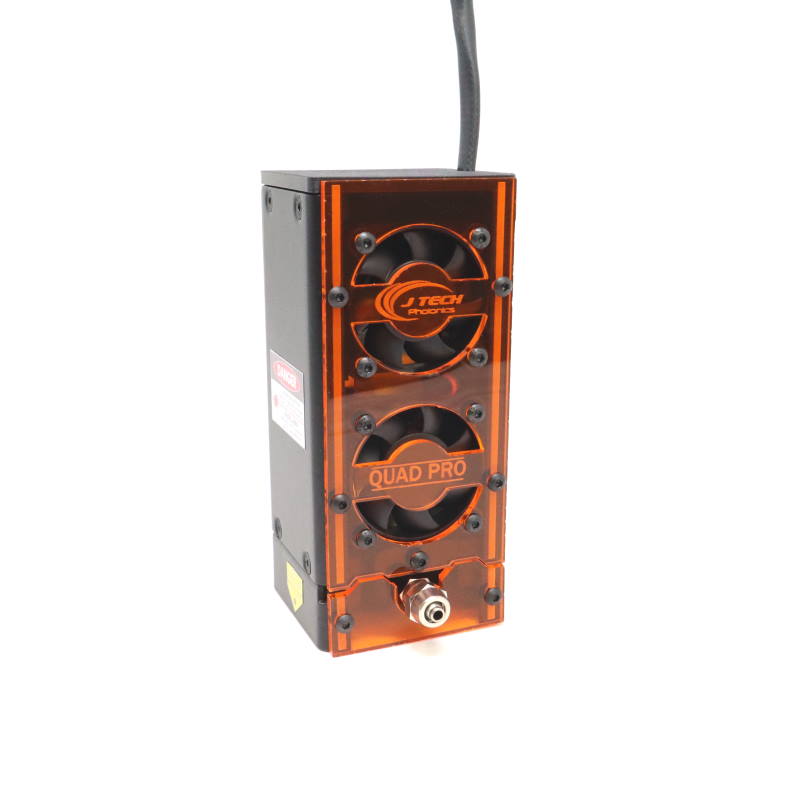

Introducing the most advanced diode laser available on the market.   The J Tech Photonics QUAD PRO 24W laser is here!

Upgrade your CNC for laser cutting and engraving ability.

Product Features:

  • Incredibly Awesome 24W of Maximum Optical Power
  • Integrated electronics – No power loss on extended cable runs
  • Advanced angle detection- laser will only fire when pointed down at the material for extra safety
  • All metal enclosure with integrated J Tech safety shielding
  • Maximum cooling with two fans and aluminum heatsinks.
  • FDA compliant interface module with power on reset and locking key switch.
  • Optically isolated inputs for industrial control
  • Adjustable low power mode – no more burning your project in low power
  • New Magnetic latching mount with the ability to lock in place
  • Optional Integrated Air Assist Nozzle
  • Adjustable Focus for 3D engravings
  • Spindle chuck mount option available (coming soon)



More cutting power to do your jobs faster

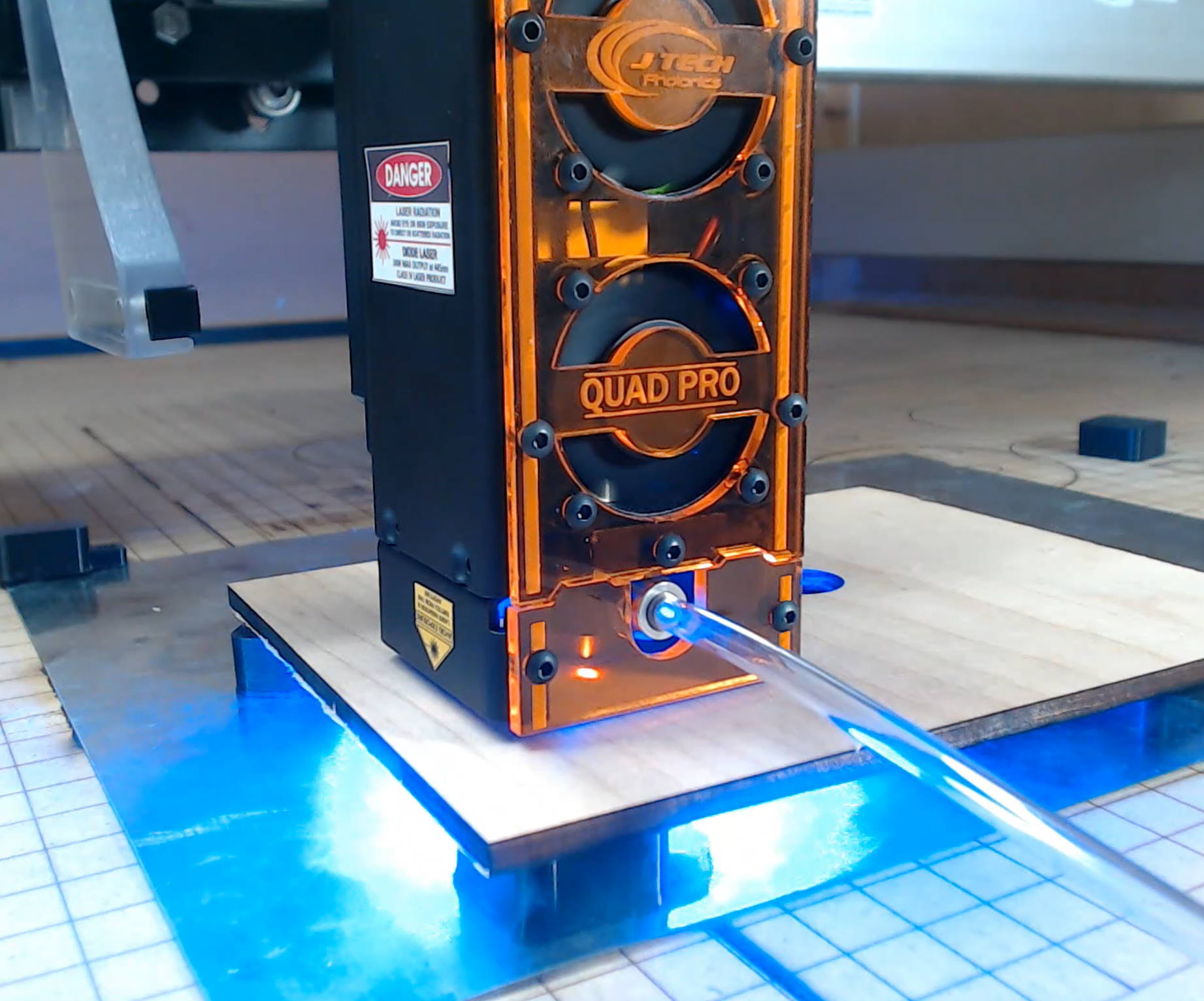

You want to cut?  This is the cutting monster.  It can get through two layer ¼” plywood in a single pass with the air assist.  It can also power through thicker materials as well.  More power means more cutting ability.  Increase your productivity and cut projects you wouldn’t think you could cut.







Integrated Air Assist

Cleaners burns, nicer edges, and 30% more efficiency when cutting.  What else needs to be said?   It pushes all the smoke out of the beam path and keeps the lens super clean.  The integrated air assist is a huge advantage for this laser.  *Pump not included. 50W Aquarium Pump for Cutting







Integrated Electronics and Safety Interface board

The main control board to manage 4 separate laser diodes is integrated into the laser housing.  What does this give you?  It maximizes the current to the diodes for full performance without any line losses.  The integrated board does the heavy work while the safety interface board does all of the industrial input optical isolation, power conditioning, and safety.











More Power and More Safety

At J Tech Photonics, we have always put safety first on our products.  This laser is no different.  The laser safety board includes our locking key switch, power on reset protection, remote interlock ability, and emission indication.  The laser head has a patent pending angle sensor integrated into the electronics to only allow the laser to fire when positioned facing downwards towards the work surface.  If it accidentally gets knocked off the mount or is not on the mount, the laser shut off and will not fire.









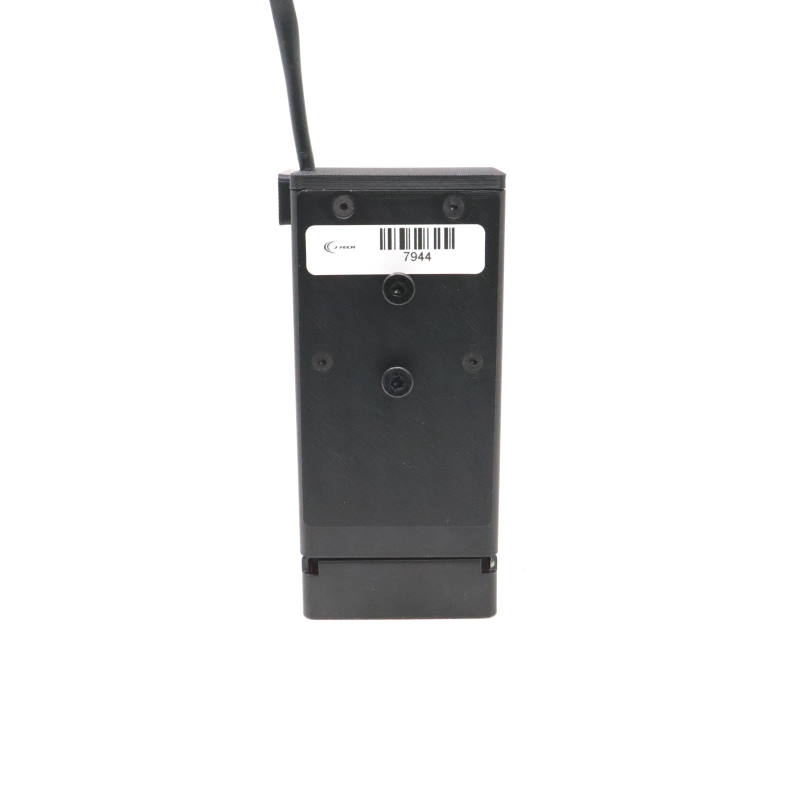

Magnetic Latching Mounts for More StabilityJ Tech laser magnetic latching mounting system

The new design includes magnetic housings in the mount so the magnets can’t escape as well as two locking screws that hold into the mount for increased stability.  The screws lock into the mount and the magnets hold it in place for a tight fit.  If you want to have your laser attached to the mount even more, you can tighten the screws even more to make it so you can’t remove it.







J Tech laser low power adjustmentLow Power Adjustment for Beam Placement

The Quad PRO 24W laser has a lot of power.  But when you want to turn the laser down to find the position on your workpiece, you don’t want it to burn a hole in your wood before you even start engraving.  We have included an adjustable low power mode into the safety interface board to allow for precise control over the low power setting.  Now, when you fire your laser at 1%, it won’t burn it.





Example Cutting Material Test

J Tech 24W quad pro cut tests



Our Team.  Number 1 in Customer Service

We boast a team of professionals dedicated to our work. We have years of experience in the industry, so we know what high-end industrial manufacturing facilities are looking for and we aim to provide it. We design lasers that we would be proud to use ourselves.  You can get in touch with us via phone or email and we answer your questions quickly and efficiently because we have the knowledge to do so.



More Power, More Safety, Quality Engineered Design

From a company that stands by its products.

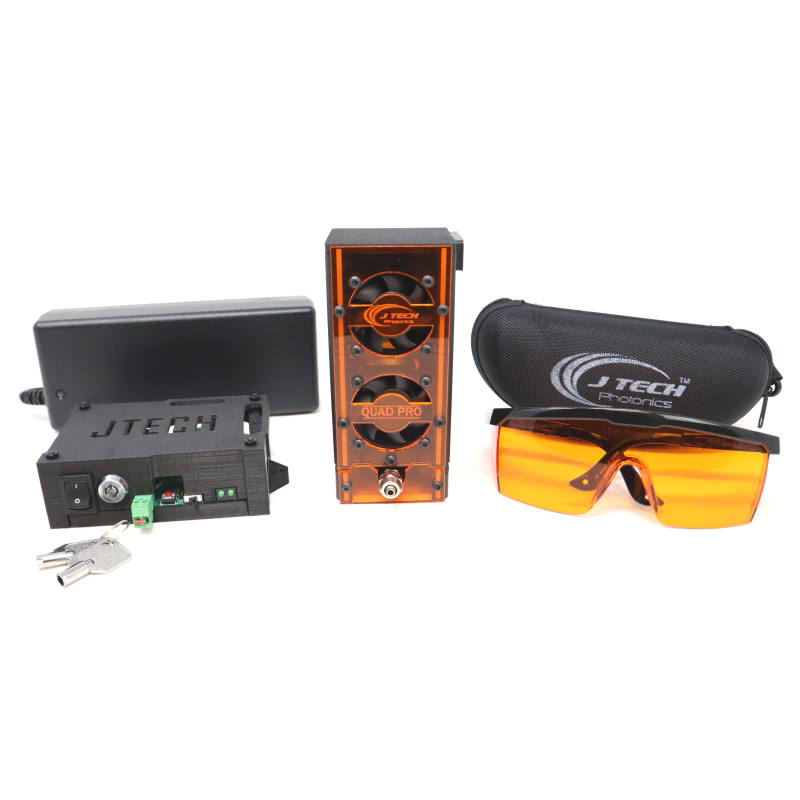

What this kit includes:

The standard kit comes with:

Specifications

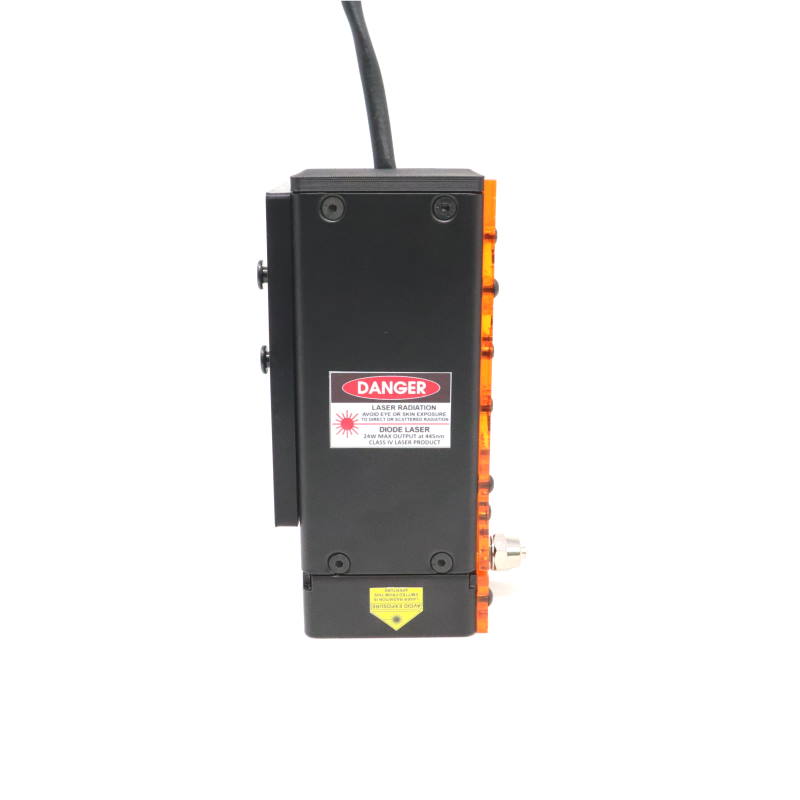

Laser Head

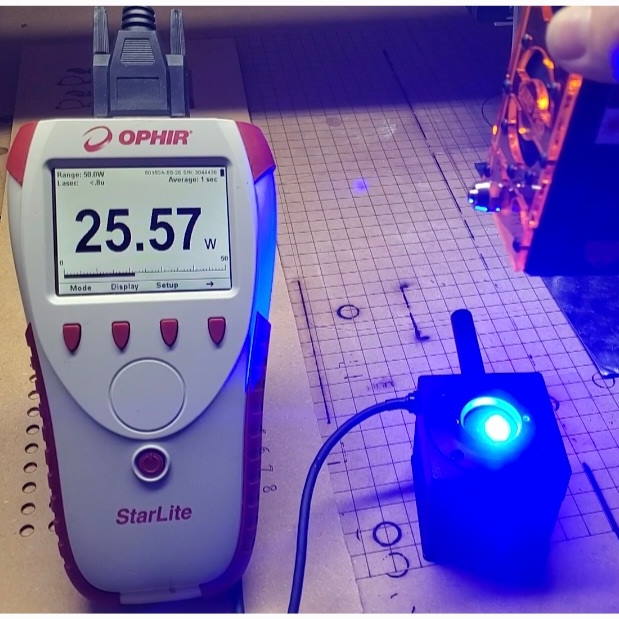

Maximum Laser Optical Power 24W
Laser Spot 0.08mm*0.1mm
Wavelength 455± 5nm
Integrated Safety Feature Angle sensor, 45 degree
Operating Temperature: 5 to 40 °C
Storage Temperature: 1 to 45 °C

Interface Board

Protection: Soft Start, Reverse Voltage, Current Limit, Thermal Shutdown
Integrated Safety Features Laser Enable Key Switch, Integrated Laser Interlock, Power off Reset, LED Indicators

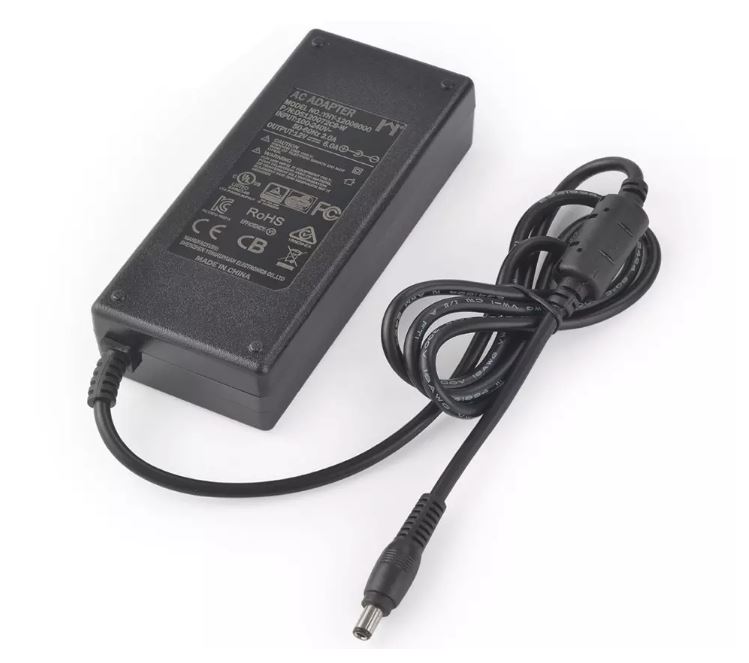

AC Adapter Input Voltage: 100 – 240 VAC
Control Signal Digital Isolation Voltage: 4500 Vrms
Minimum Control Signal ”Turn On” Voltage: 2.8 Volts
Control Signal Maximum Voltage: 24Volts
Control Signal Maximum Current: 50 ma
Control Signal Maximum Frequency: 2.5KHz
Connectors: Screw Terminal and Molex Mini-Fit Jr™ Connectors
Operating Temperature: 0 to 40 °C
Storage Temperature: -40 to 70 °C
Dimensions: 3.6″ x 2.2″

Additional information

Weight N/A
Dimensions N/A
Power Adapter Region

U.S. (North America), UK Style, EU Style, AUS Style
