Spindle Mounted All-In-One Bundle

From: $509.98

Chuck mount laser makes setup a breeze!

Fits in 1/4″ chucks.  Available in 2.8W, 4.2W, 7W Pro and 14W Dual Pro, and NEW 24W Quad Pro power levels.
Choose your extension cable length and Power Cord.

-Easily change from spindle to laser with no offsets!
-No mounting brackets needed!
-Do carving and laser combination projects with ease.
-Easy swapping from laser to CNC!

Highest power spindle mount laser On The Market!

If you are ordering this to go on a Shapeoko(3,4,5 or PRO), Onefinity CNC, or Bob’s CNC let us know in the order notes on checkout so we can provide the correct cables.

24W version comes standard with the air assist and high res lens.  14W comes standard with the high res lens.

Clear
Clear

Optional High Resolution Lens

Recommended for the 4.2W and 7W PRO lasers. Included in the 14W Dual Pro and 24 Quad Pro laser.

Optional Air Assist Nozzle Kit

Helps with cutting on higher power versions. Included on the 24W Quad Pro laser.

SKU: Chuck_Mount_Laser_Bundle Category:

Description

Mount Your Laser to Your Router or Spindle Chuck!

Add a laser to your existing CNC with ease!  No mounting brackets needed.  Just put the laser in your chuck.  The patent pending spindle centric design of the laser makes setting up easy.  As long as you have clearance on your Z axis, then you can use this laser.

The spindle mount laser is an easier design that allows you to install a laser on custom CNC machines without the need for mounting brackets.  This is the highest power laser offered in a spindle mount version in the market!

  • Easily change from spindle to laser with no offsets!
  • No mounting brackets needed!
  • Do hybrid carving then laser projects with ease.
  • Easy swapping from laser to CNC!

(*center tolerance is < 0.01″ )

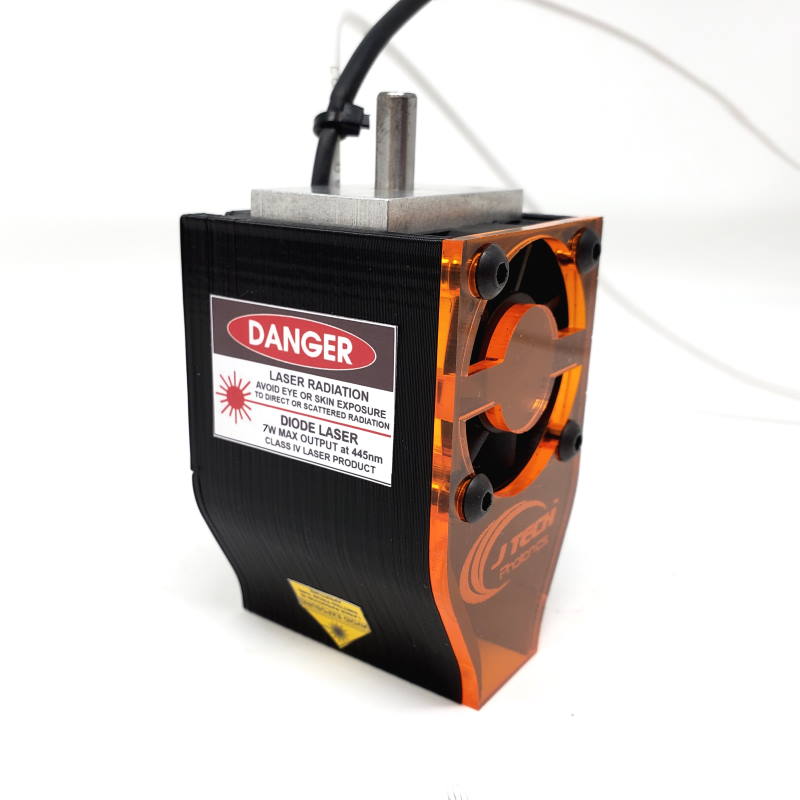

For the versions up to 7W PRO

If you have a clearance of 3 1/4″ in your Z axis, then you can use the chuck mounted laser.

For the 14W Dual Pro version

You will need 4″ of clearance for the 14W version.  Because it has two diodes combined, there is a slightly offset from the bit zero. The newest version has an adjustable top to allow for correction on any possible offset caused by manufacturing.  The laser is pre-set at the factory but can be adjusted if needed to get the perfect zero for your machine.

  • Adjustable top to allow for zero offset.
  • No figuring out mounting brackets.
  • Easy swapping from laser to CNC.
  • Comes equipped with the air assist nozzle and high resolution lens options.

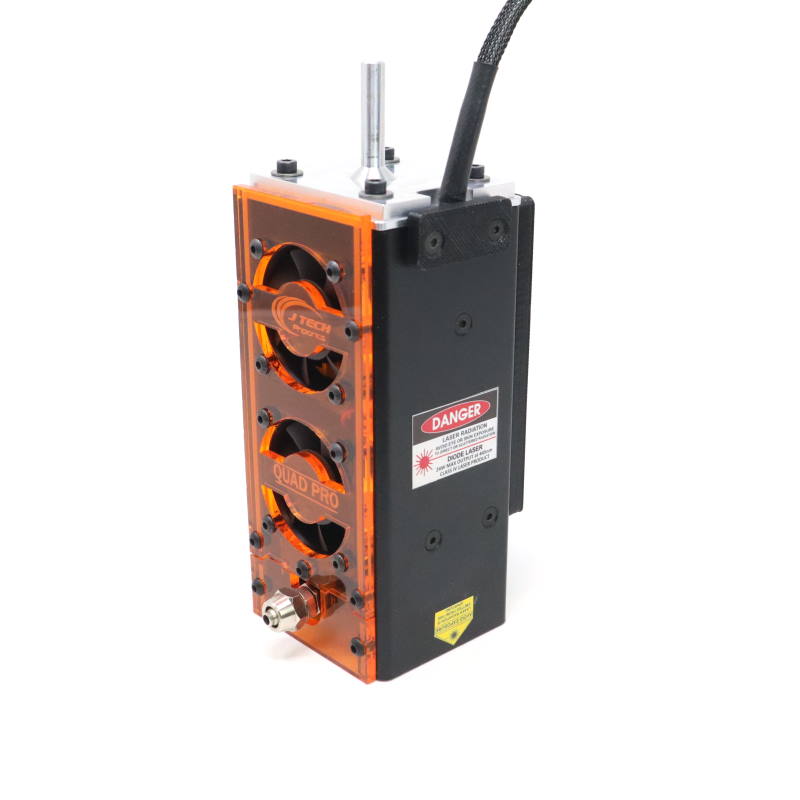

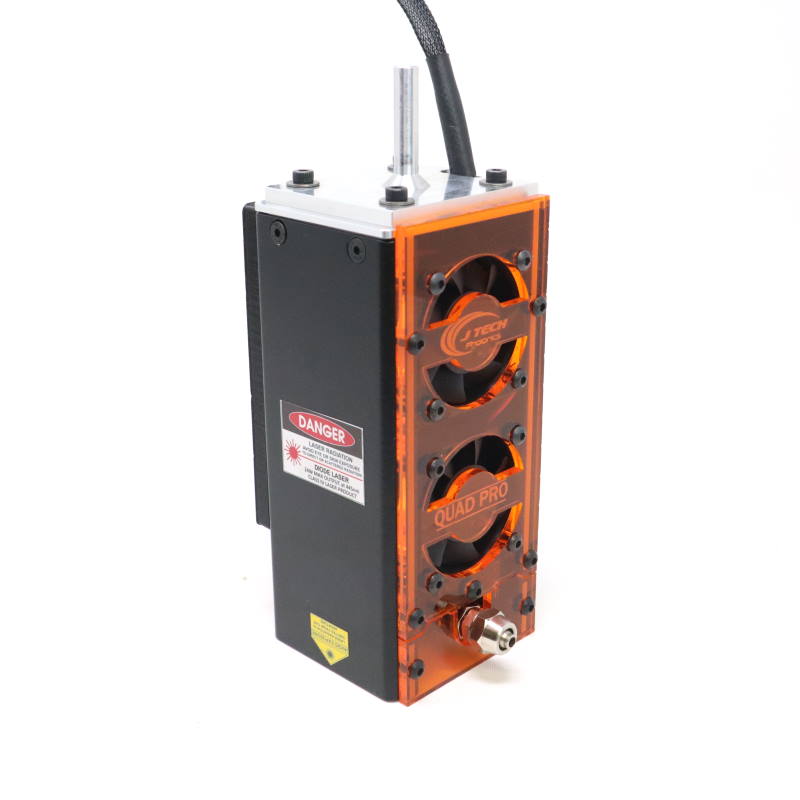

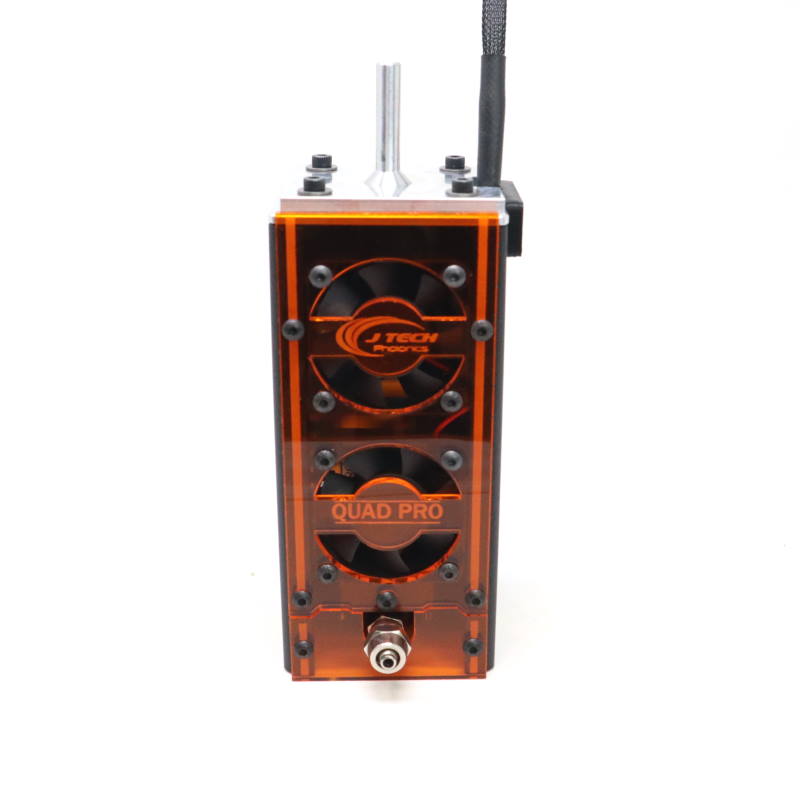

For the 24W Quad Pro Version

You will need 5″ of clearance for the 14W version.  The newest version has an adjustable top to allow for correction on any possible offset caused by manufacturing.  The laser is pre-set at the factory but can be adjusted if needed to get the perfect zero for your machine.

  • Adjustable top to allow for zero offset.
  • No figuring out mounting brackets.
  • Easy swapping from laser to CNC.
  • Comes equipped with the air assist nozzle and high resolution lens options.

Also, it works with our magnet mounting kits as well!  Includes magnets on the back for mounting on all of our standard mounting kits.



Additional information

Weight 2 lbs
Dimensions 9 × 9 × 4 in

Laser Power

2.8W, 4.2W, 7W Pro, 14W Dual Pro, 24W Quad Pro
Power Cord Option

US Style, UK Style, EU Style, AUS Style

Cord Length

5', 10', 15', 20', 25'

Optional Air Assist Nozzle Kit

Laser Type

14W PRO, 14W PRO SI, 7W & 7W PRO Long, 7W Short, 7W+
