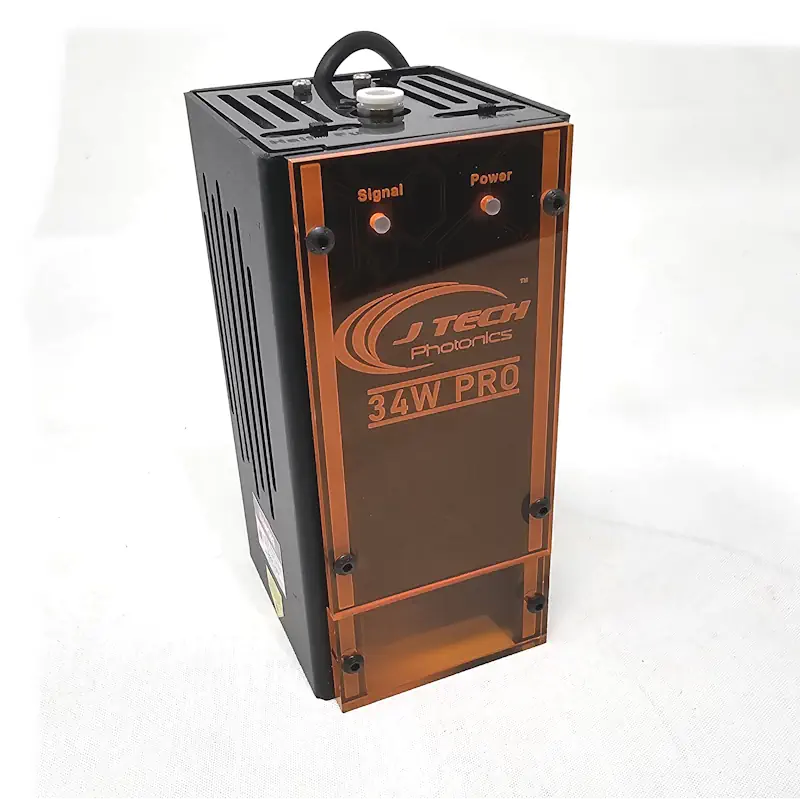

34W PRO 2-in-1 Laser Head

34W PRO 2-in-1 Laser Head (Engraving + Cutting)

The 34W PRO 2-in-1 Laser Head is built for makers who want precision engraving and serious cutting power—without swapping hardware. Designed around six dedicated 7W laser diodes, this head delivers over 34W of optical output in a compact, professional-grade package.

With a simple onboard switch, you can instantly toggle between full power for cutting and half power for optimized engraving—giving you extended focal range, improved control, and outstanding versatility in a single laser head.

---

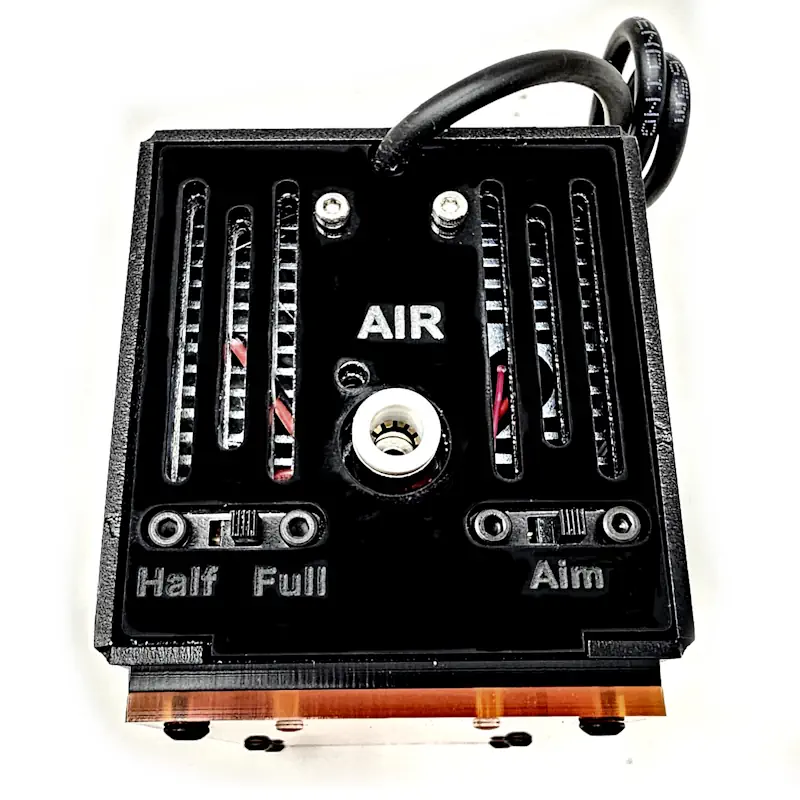

 Dual-Mode Power Control

• Full Power Mode: All six diodes active for maximum cutting performance

• Half Power Mode: Three diodes disabled to improve engraving range and consistency

• No software changes required—switch modes directly on the laser head

---

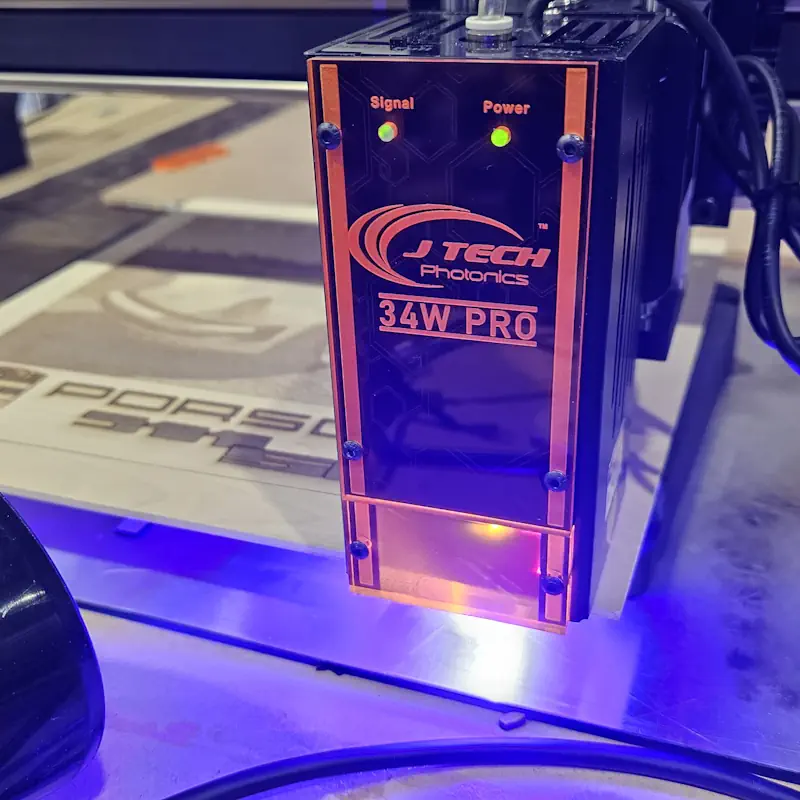

 Precision Where It Counts

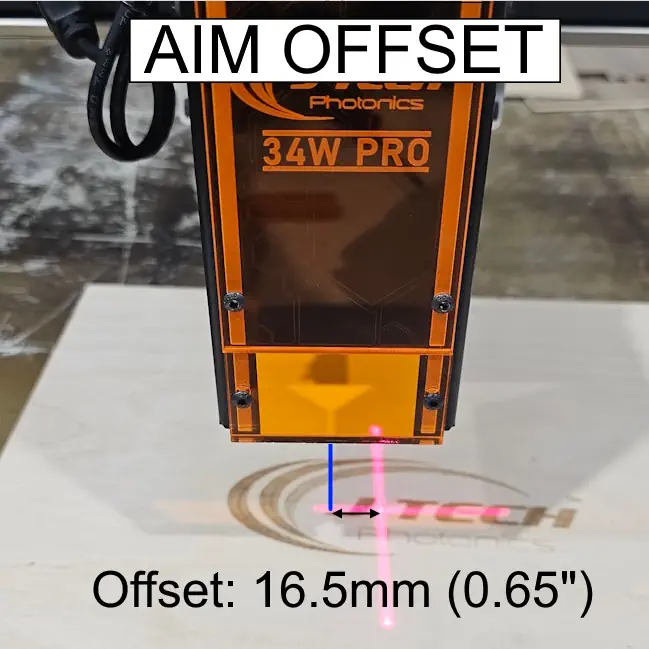

• Integrated red laser crosshair for fast, accurate job positioning

• Excellent fine-detail engraving with clean edges and consistent shading

• Ideal for photo engraving, text, vector fills, and high-speed raster work

---

 Serious Cutting Capability

This laser doesn’t just engrave—it cuts.

• Cuts ¼″ plywood in a single pass

• Tested at 20 inches per minute

• Clean kerf and reliable penetration across common wood materials

---

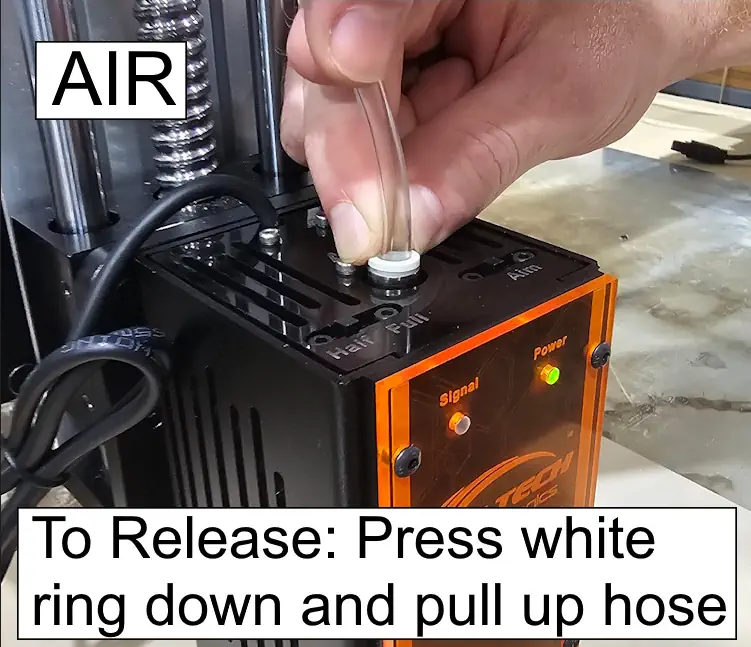

 Integrated Air Assist (No External Add-Ons)

• Built-in air assist for cleaner cuts and reduced charring

• Push-to-connect pneumatic fitting makes hose hookup fast and painless

• Optimized airflow right at the cut point

---

Designed for Real-World Use

• Replaceable lens for easy maintenance and long-term performance

• Compact, rigid housing designed for CNC environments

• Built to handle both production runs and detailed custom work

---

 Drop-In Upgrade for Existing J Tech Systems

This listing is for the laser head only, making it a perfect upgrade if you already own a J Tech Photonics laser system with a Safety Interface (SI) module.

Compatible with:

• 7W+

• 14W PRO SI

• 24W

• 44W

• 64W

No additional safety hardware required—just swap the head and go.

---

 Ideal For:

• Makers who want one laser for both engraving and cutting

• Users upgrading from lower-power heads

• Shops that value speed, flexibility, and clean results

• Anyone tired of choosing between detail or power



Specifications

Maximum Laser Optical Power	>34W
Laser Spot 34W	0.15 x 0.25mm
Laser Spot 17W	0.15 x 0.15mm
Wavelength	445± 10nm
Integrated Safety Feature	Angle sensor, 45 degree
Operating Temperature:	5 to 40 °C
Storage Temperature:	1 to 45 °C
