Spindle Clamp Magnet Mount

$14.99 – $54.99

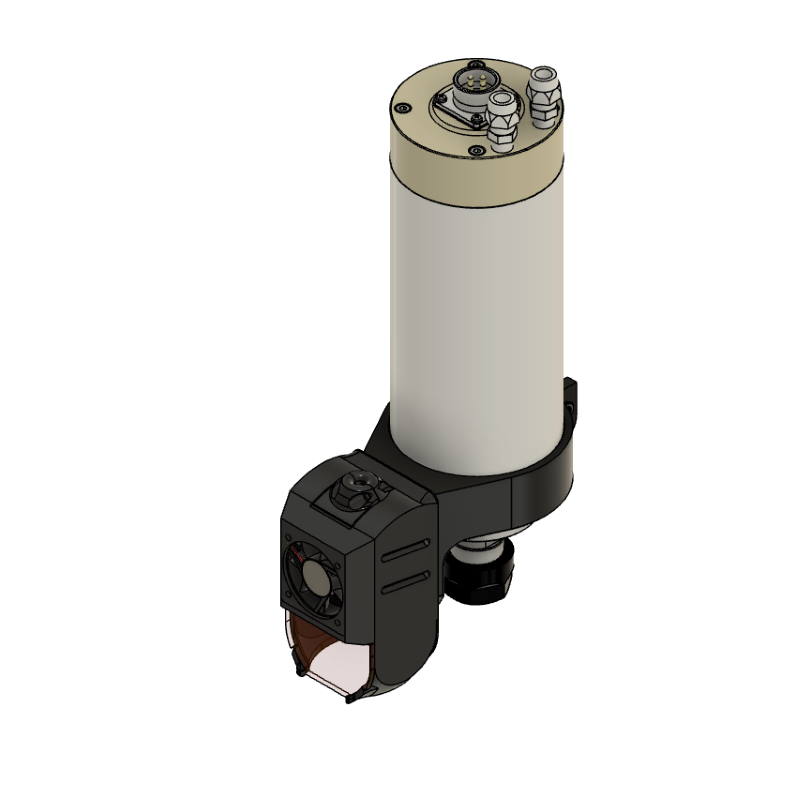

Easily add a J Tech laser to any machine with a standard 80mm or 65mm Spindle.  If you have room on the bottom of the spindle under your holders for the spindle, then you can place the laser mount on it.  This is a good option if you don’t want to go with the in the chuck laser.

Choose Options:

-Full mounting kit with cables or “just the mount”
-80mm Spindle or 65mm Spindle

SKU: 80mm_Spindle_Mount Category:

Description

Easily add a J Tech laser to any machine with a standard 80mm or 65mm Spindle.  If you have room on the bottom of the spindle under your holders for the spindle, then you can place the laser mount on it.  This is a good option if you don’t want to go with the in the chuck laser.

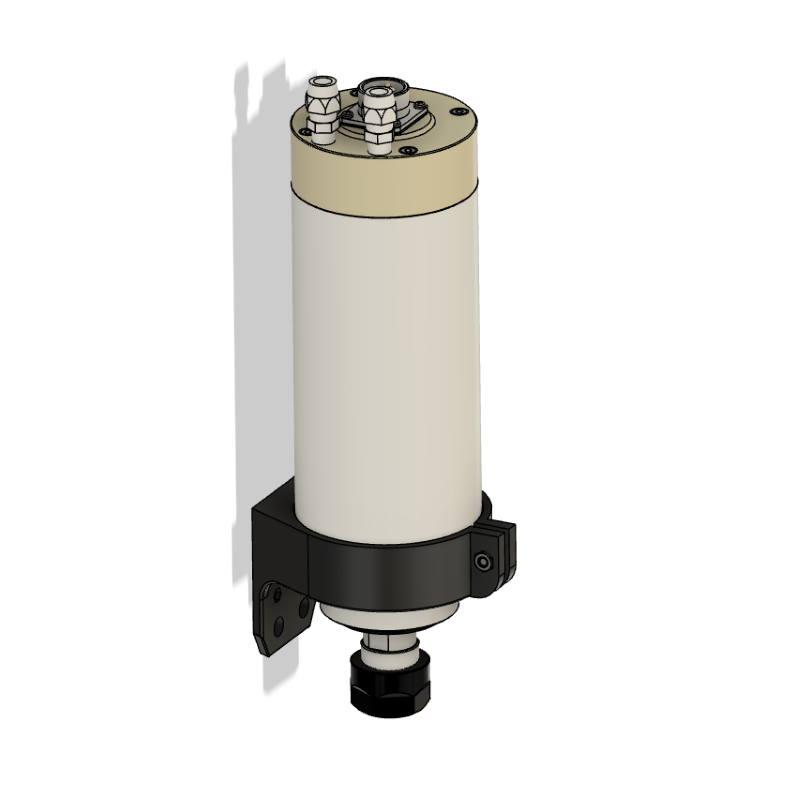

This mount attaches to the bottom of the spindle giving a strong connection that does not require a secondary mounting position.

Full Mounting Kit Includes:

  1. Magnet Laser Mount
  2. Laser Mount Screws/Nuts: To mount the laser on the laser mount
  3. Laser Spindle Mount Screws/Nuts: To secure the mount to the spindle
  4. Zip Ties: To clean everything up for cabling
  5. Zip Tie Holder: To place on the Z axis gantry to hold the laser cable in place
  6. Molex Mini Fit Jr. Cable:  Input control cable for the laser driver
  7. Laser and Fan Extension Cables: choose your cable length
  8. Sticky Pads:  4 sticky pads for mounting the driver

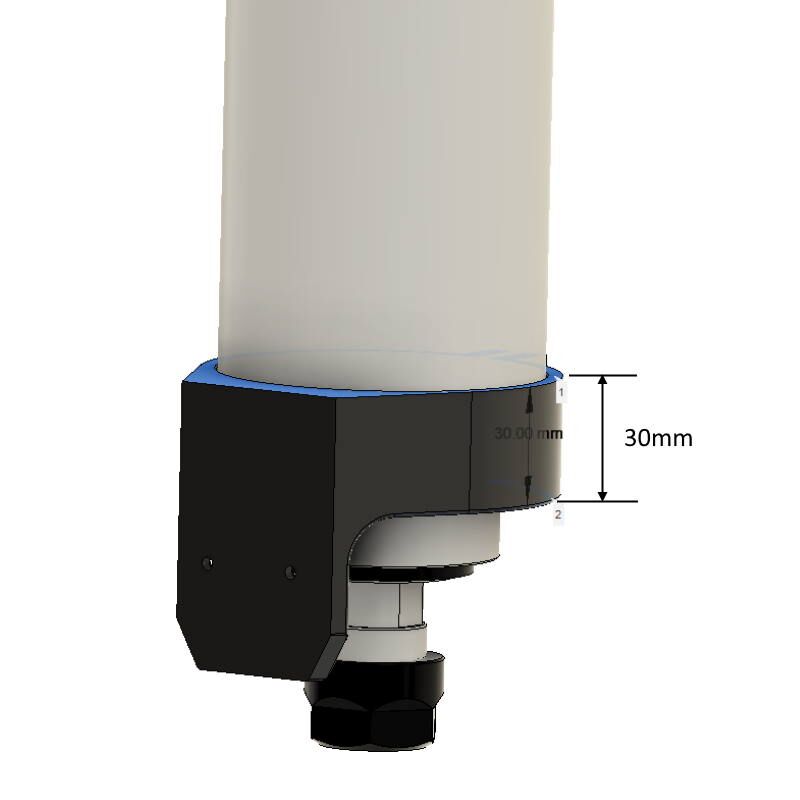

Need minimum of 30mm of space on the bottom of the spindle.



Additional information

Weight .5 lbs
Dimensions 5 × 4 × 3 in
Mount Options

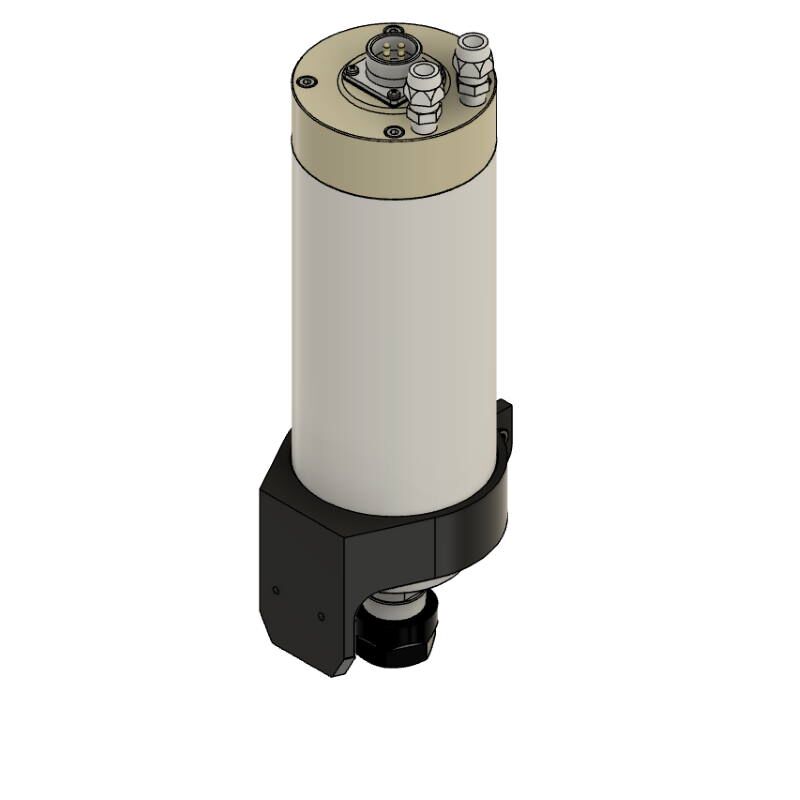

Full Mounting Kit, Just the Mount
Laser and Fan Extension Cable Length

5 Ft, 10 Ft, 15 Ft, 20 Ft, 25 Ft, No Cables with this Option
Spindle Size

80mm Spindle, 65mm Spindle
