DB25 Dual Breakout Board

$21.99

SKU: DUAL_BREAKOUT Category:

Product Description

Set up your MACH3 CNC system with ease using this Dual Breakout Board!

Place this board in line of your computer and your motor controller to get the signals needed to turn on and off the laser.  This takes all of the hassle away from figuring out how to get your controller to work with its dedicated outputs.  Many controllers are not documented well and are lacking the outputs needed to control the laser.  This little board solves all of those problems!

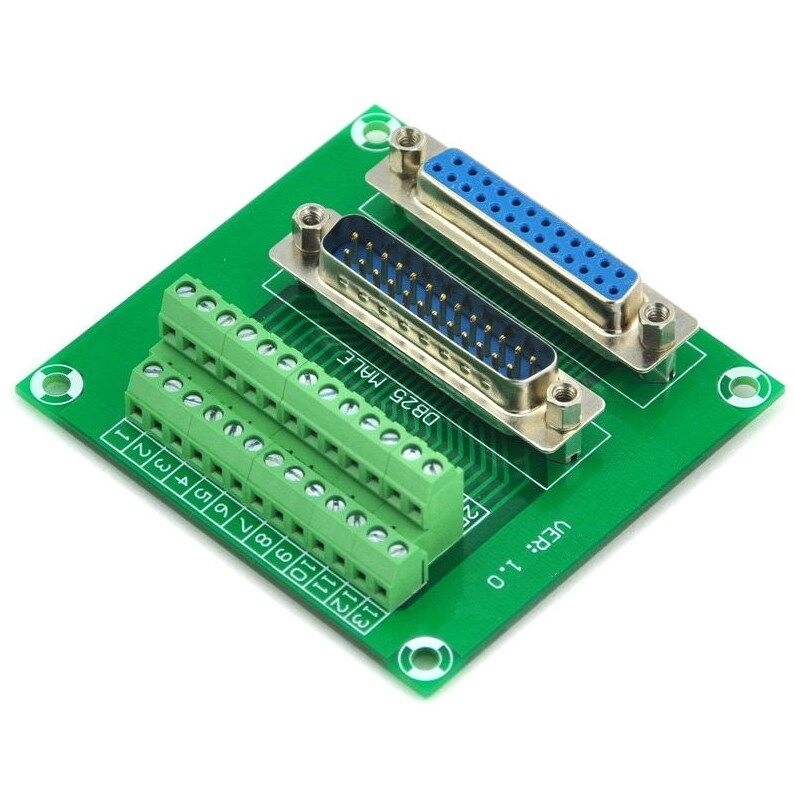

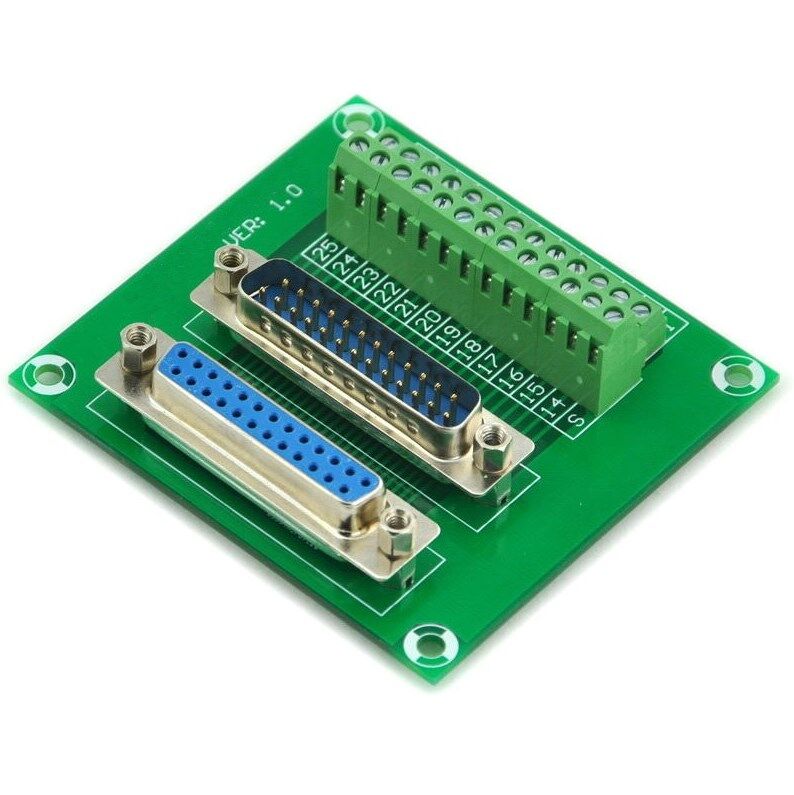

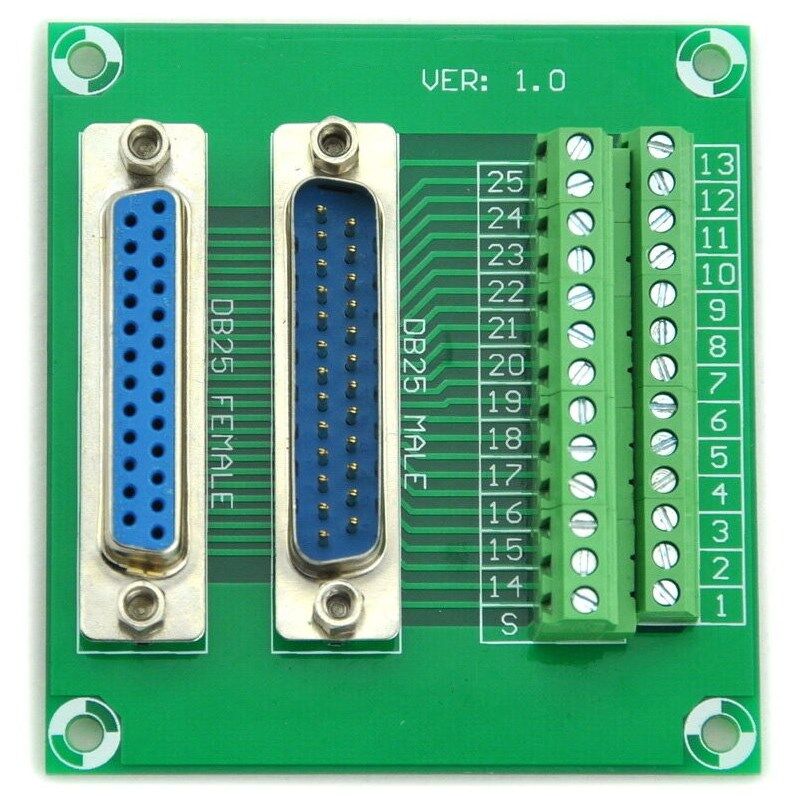

This breakout board has two DB25 connectors, one make and one female, with all of the signals broken out to screw terminal connectors for easy connection.  This allows for the signals to be “passed through” to other equipment while monitoring or using some of the signals as well.

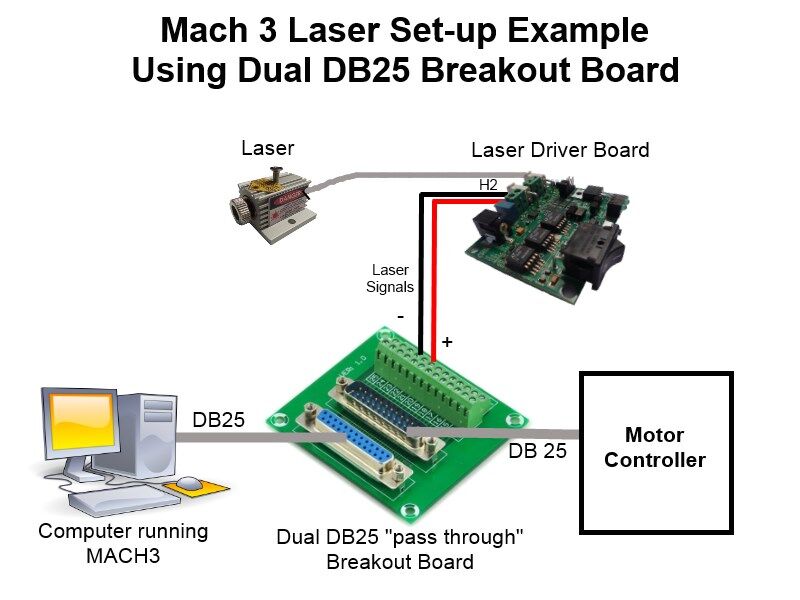

Mach3 laser setup using dual breakout board

Additional Information

Weight 0.8 lbs
Dimensions 3 x 3 x 1 in
