PRO SERIES V4

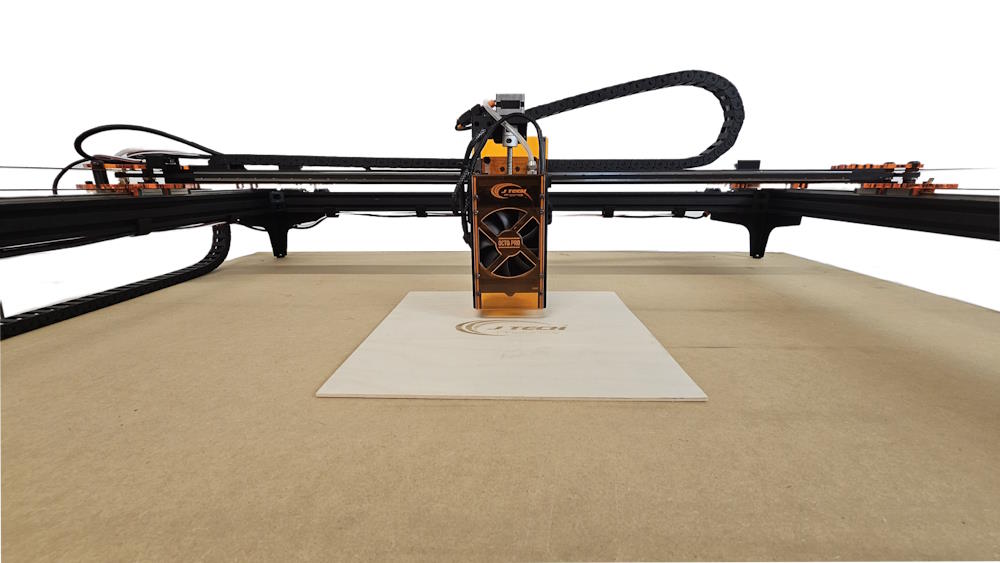

Huge Work Area of 30″ x 32″

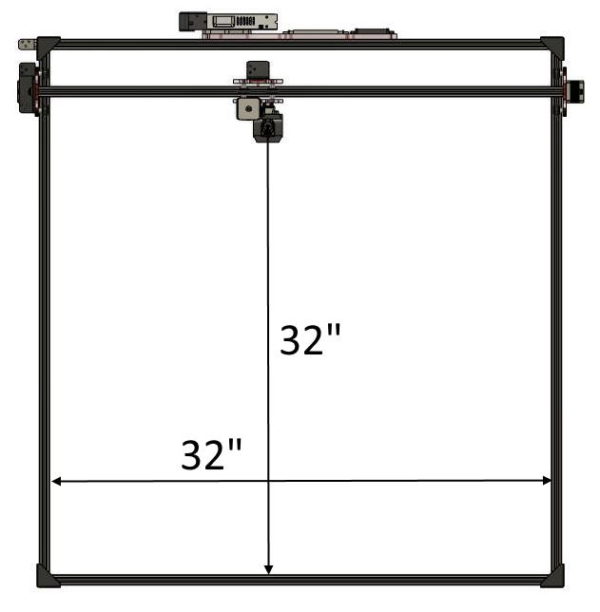

Total Working Area: 30″ x 32″
Overall Machine Size:  45″ L  x 46″ W x 14″ H
Overall Z Clearance:  5.25″

[hr]

PRODUCT FEATURES

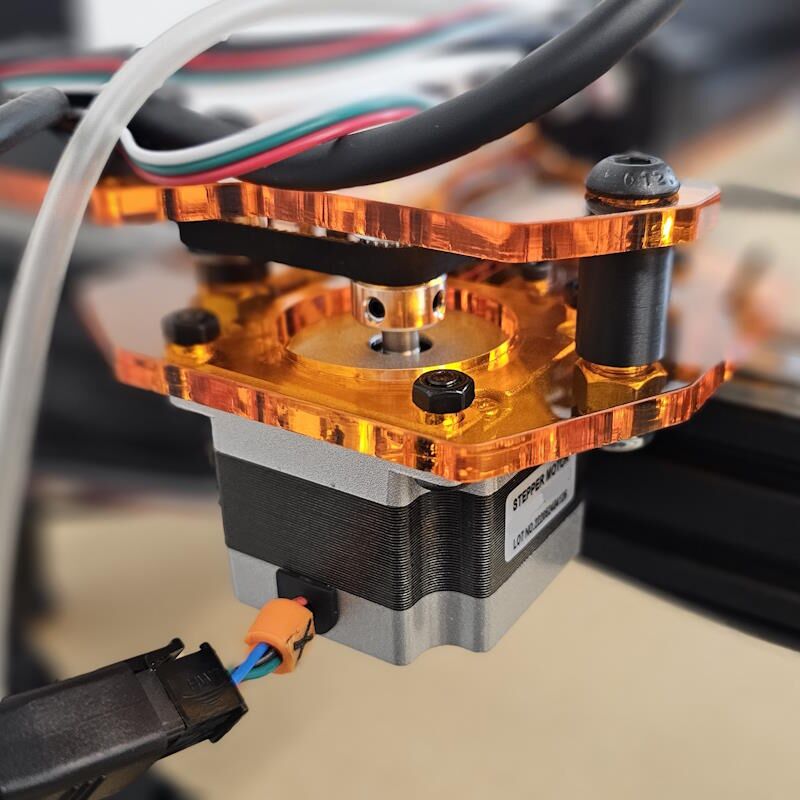

Upgraded with NEMA 23 Motors and New Controller

This machine can raster at 1500 inch/min with acceleration at 1500mm/s^2, giving incredible speed to complete your projects faster!

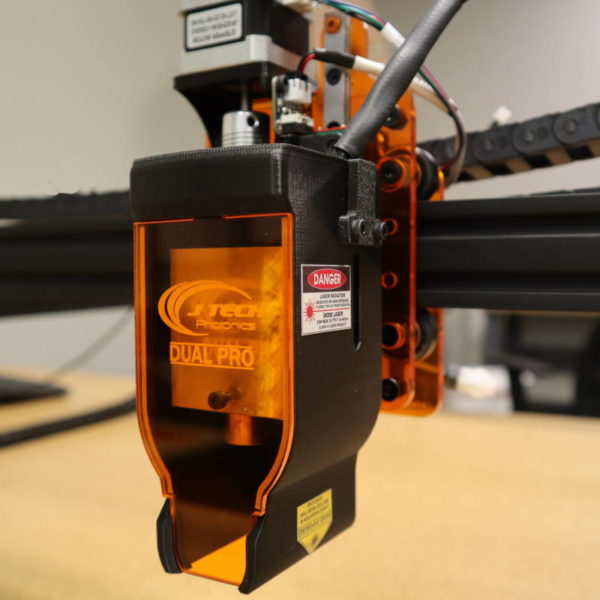

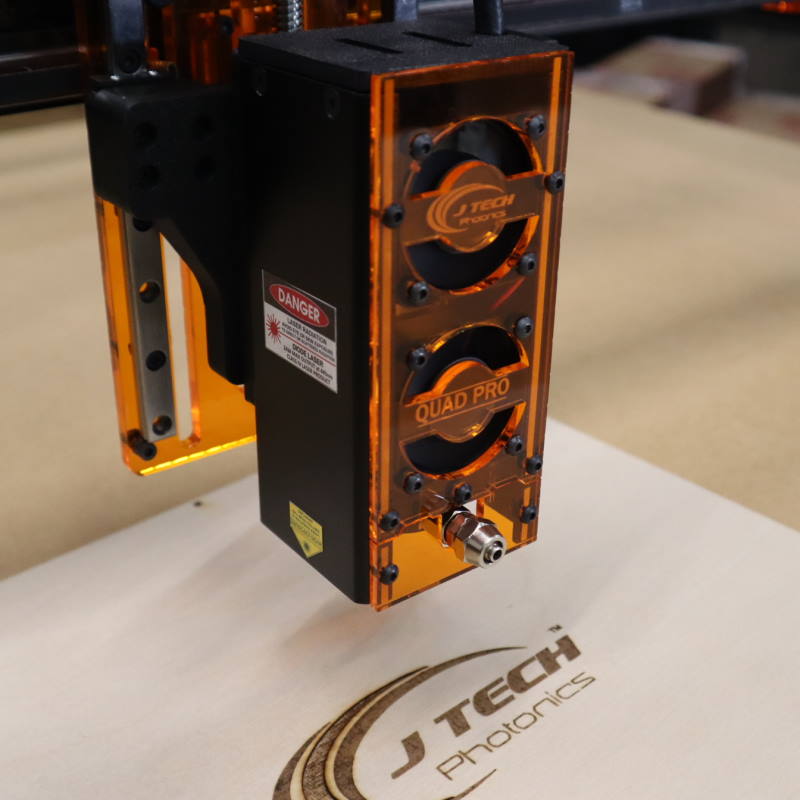

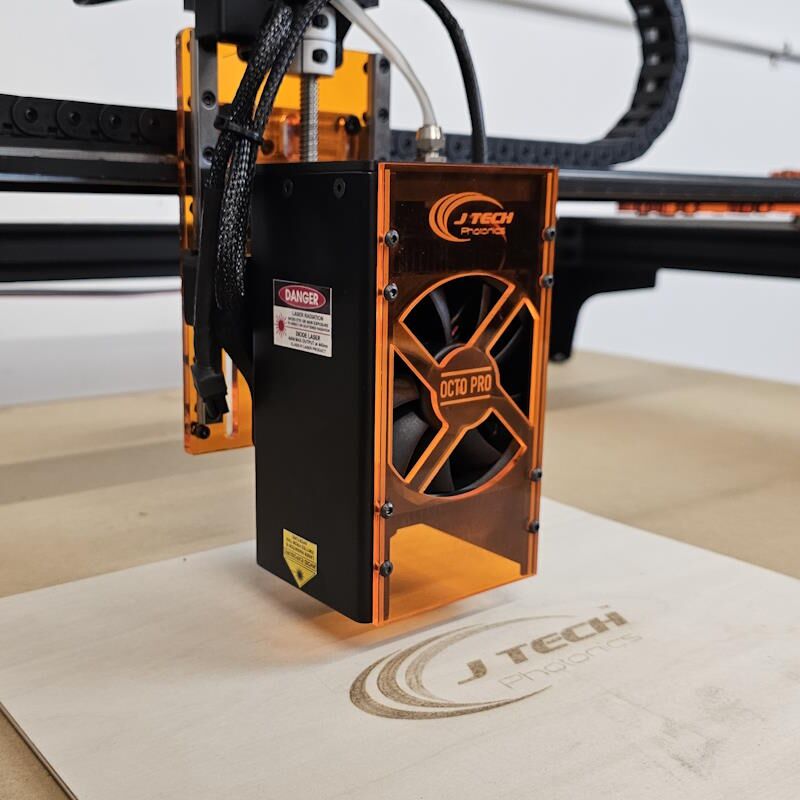

Available with 64W or 44W Laser

This machine moves fast enough to engrave at 100% power with the 44W laser!

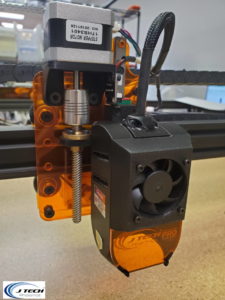

Linear Rail Z Stage

Improved accuracy for incremental moves in cutting applications. No translational movement causing misalignment on multiple pass cutting projects.

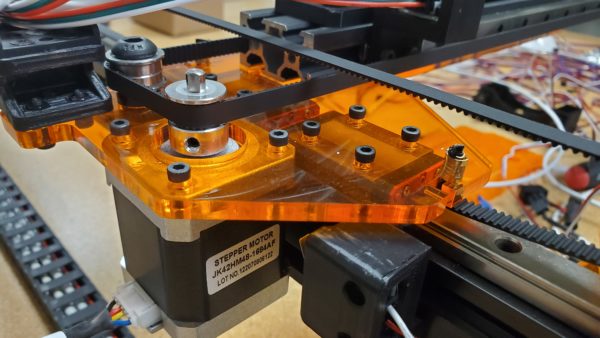

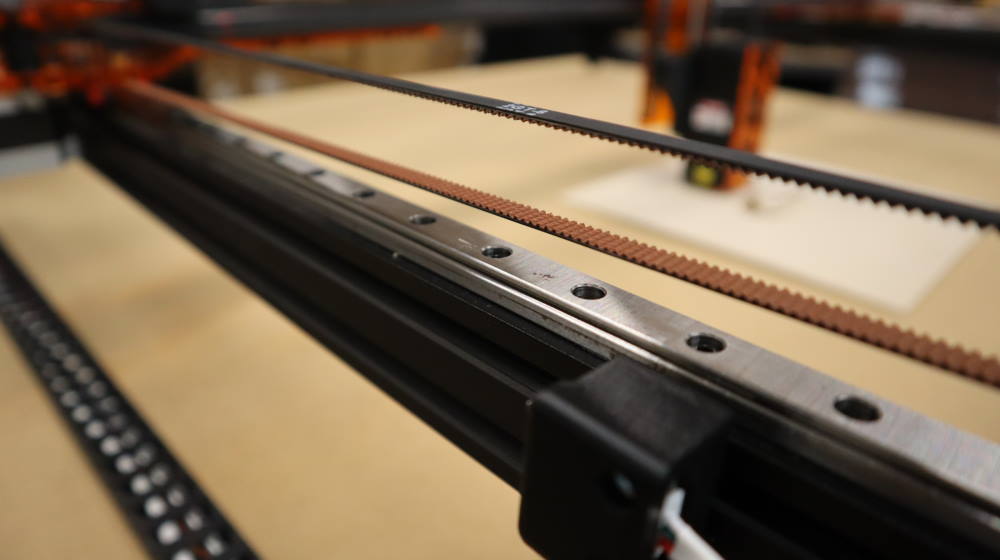

Full Machine Linear Rails

No more wheels meaning increased performance for accuracy and repeatability.  Higher precision, smoother motion.







Adjustable Belt Tensioners

Improved design to allow for proper tensioning of the belts with ease.

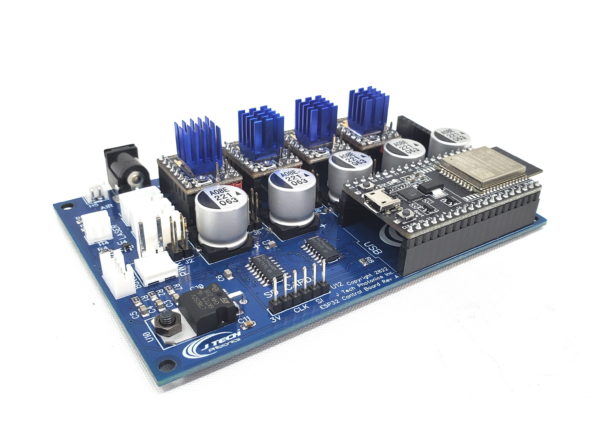

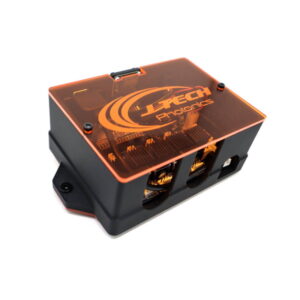

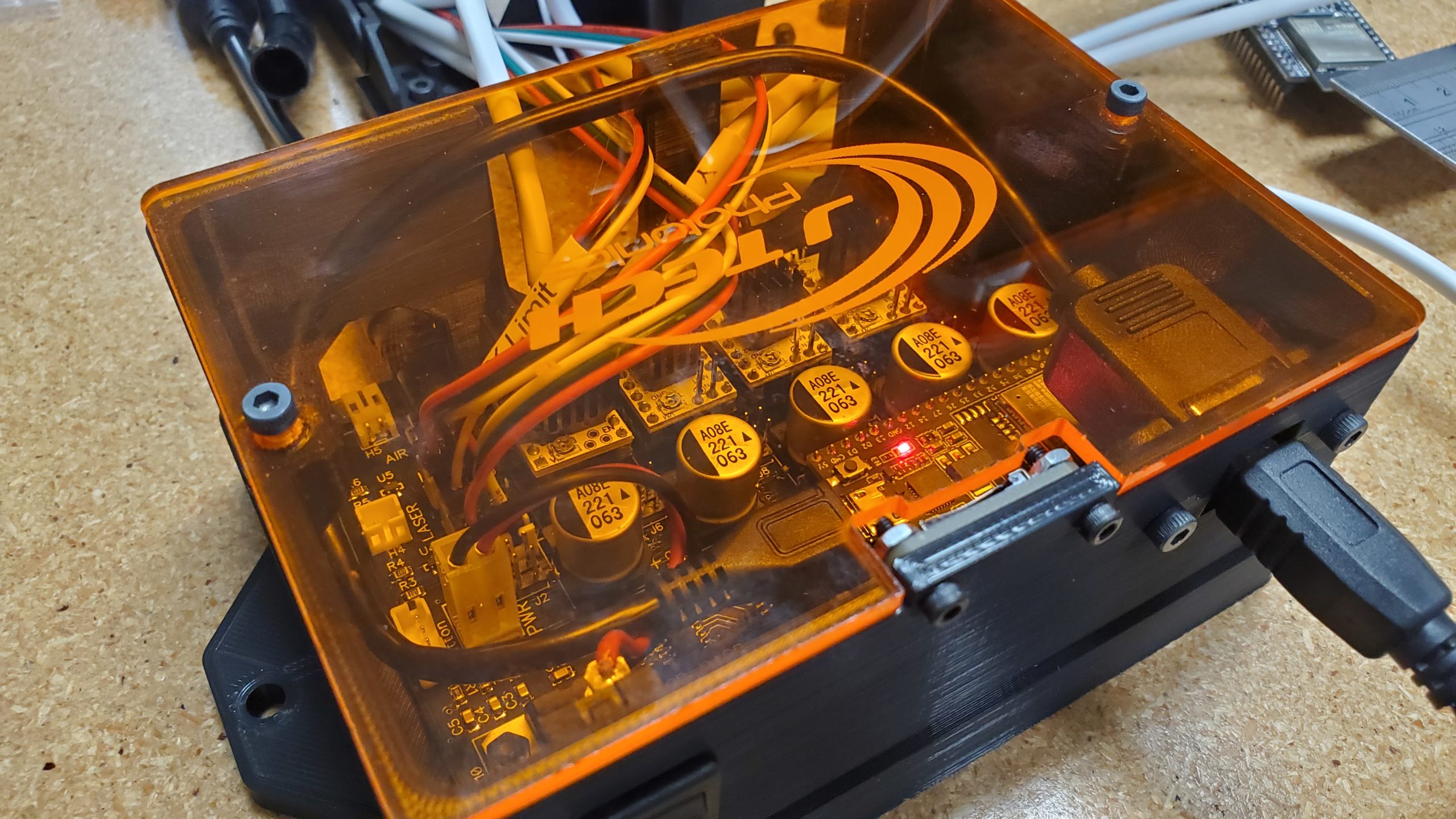

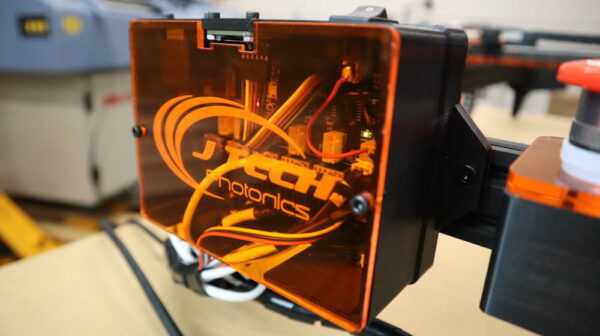

32 Bit Motion Controller

We have designed a complete new 32 bit motion controller for the machine based on GRBL laser mode with higher performance and silent motion.   This is definitely an upgrade from GRBL 1.1 and the old 8 bit machine controller.  Includes support for a rotary axis as well!

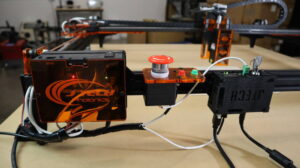

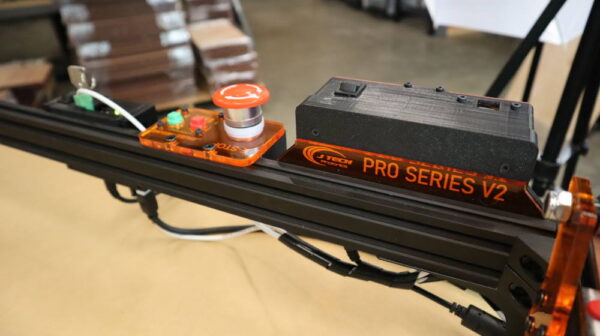

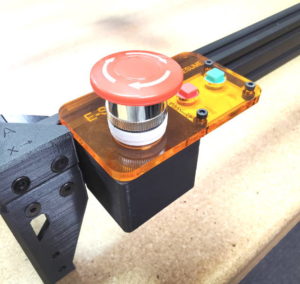

Control Placement in Front

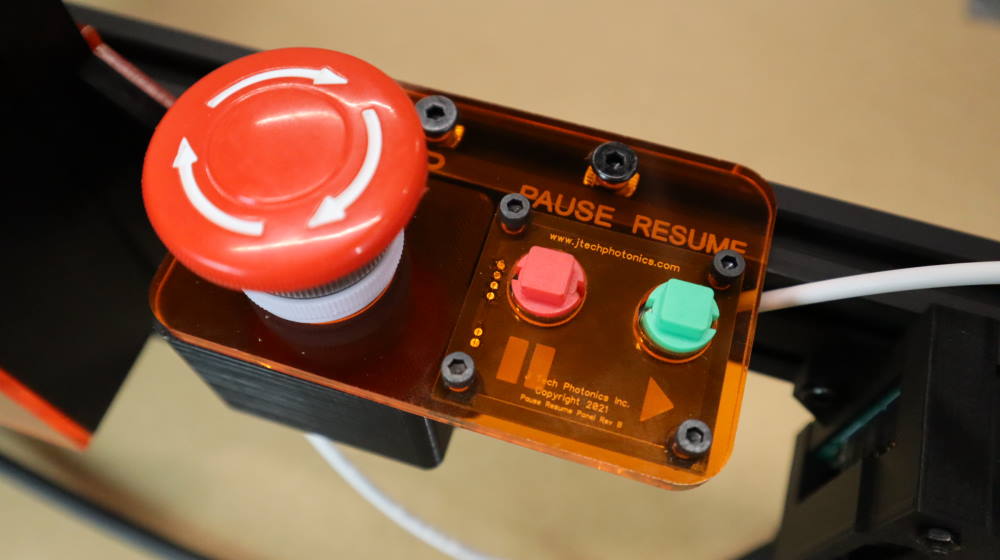

Easily stop the machine in an emergency or pause to leave for a minute.  Have access to the key switch on the laser driver.  Everything you need, all in the front of the machine.

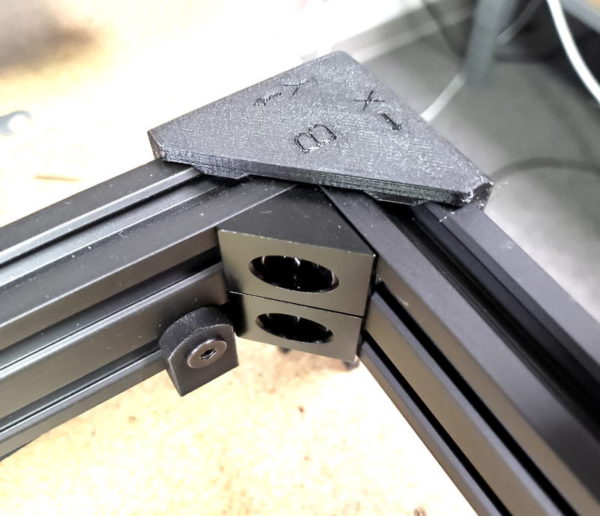

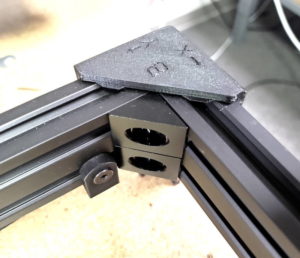

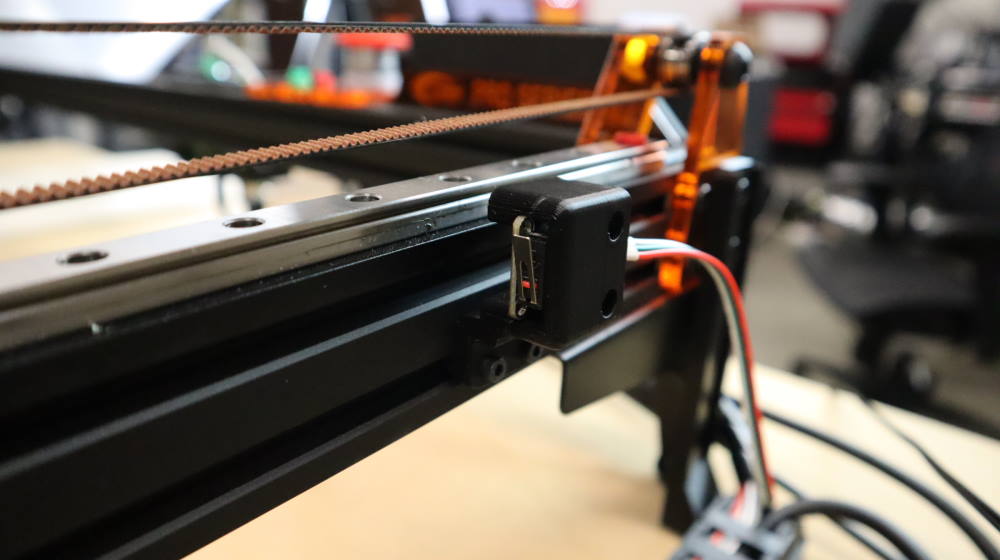

Self Squaring Limit Switches on Y Axis

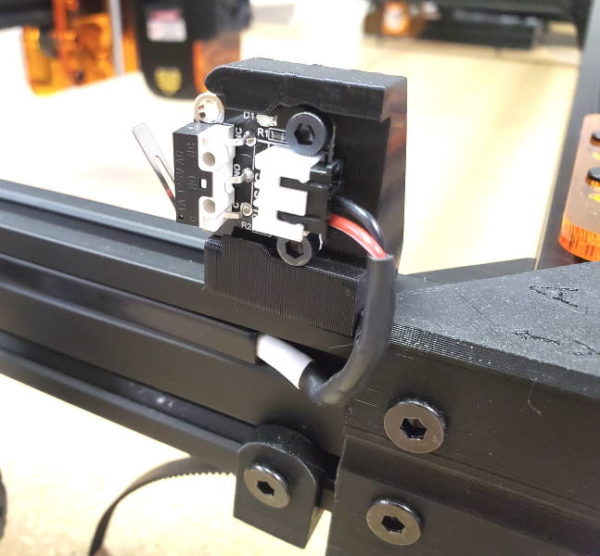

Improved limit switch design allows for two limit switches on the Y axis to square the machine on every homing sequence.  Never be out of square again.

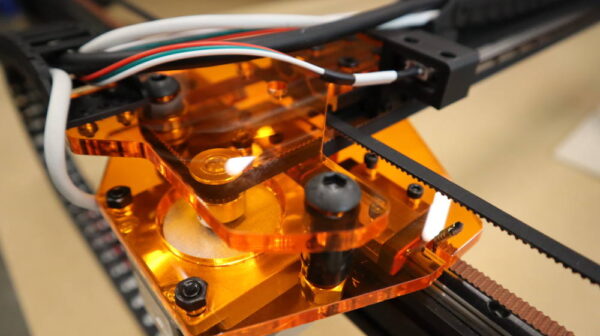

Pre-Assembled Parts for Easy Assembly

We made this machine with assembly in mind.  It is a professional machine, but it doesn’t take two days to put together.  We have engineered it to be easy to assemble and operate.





WiFi and SD Card Support

The new machine has integrated Wifi and SD card capability.  No need to use a seperate computer if you don’t want to.  Make a single file and send it to the machine with your network to run.  Have several machines running at once to make production.  This offers a whole new world not attached to a computer.













Full Lightburn Support

You can use the integrated wifi, or you can connect directly with a computer using Lightburn.  The new machine supports Lightburn fully as this is the software of choice for the Pro Series V2 machine.











Web Interface Control

Use your phone, laptop, tablet, or any device with internet to control your machine.  Includes a full web interface on the machine.

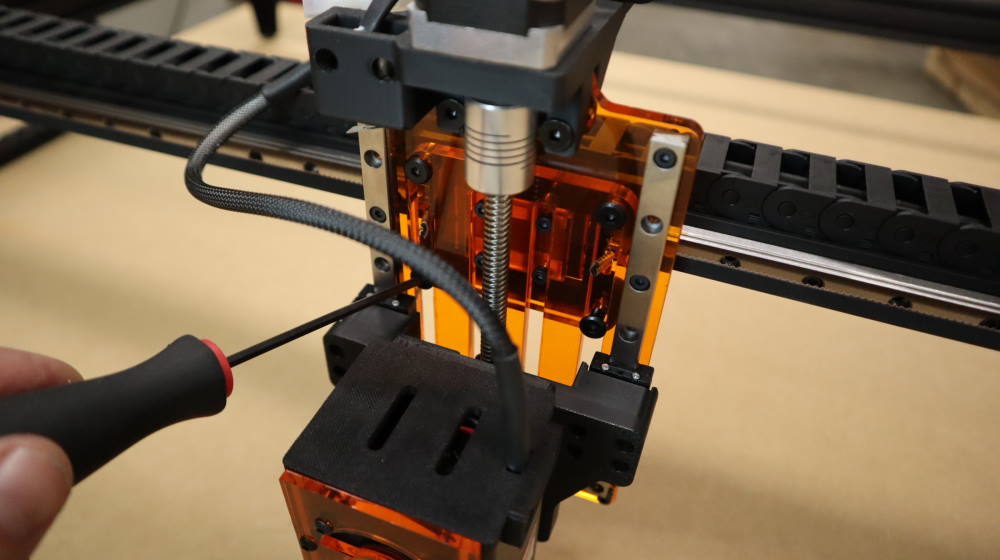

Huge Adjustable Z Stage

Get maximum clearance for any project you need.  You can adjust the Z stage up or down to engrave on various size projects.  Move it up to fit a rotary under it as well.

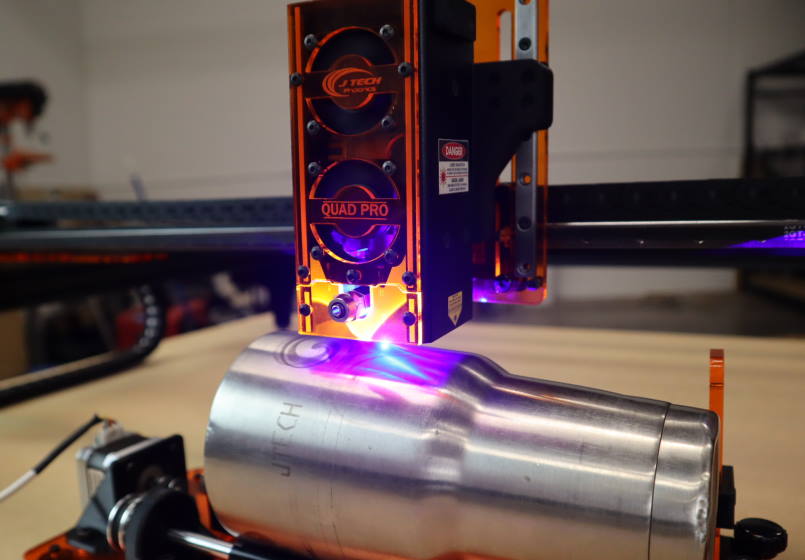

Rotary Engraving as Well!

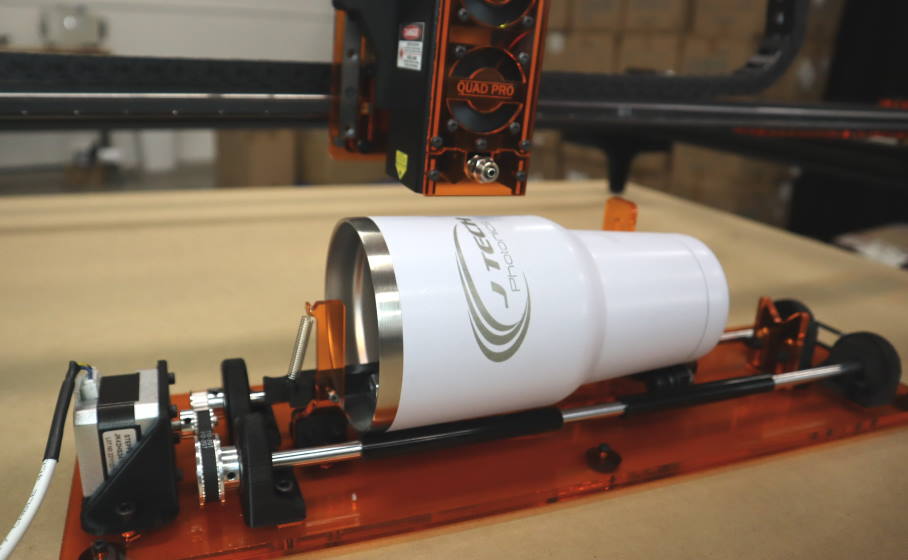

The machine supports the use of the J Tech Rotary Accesory to engraving on tumblers, cups, and glasses.











Bring New Options to your Business with Rotary

Impressive Resolution and Repeatability

Resolution = 0.000386″
Repeatability = 0.001″

Engraving Pattern, Single Pass Engraving, Two Passes Engraving

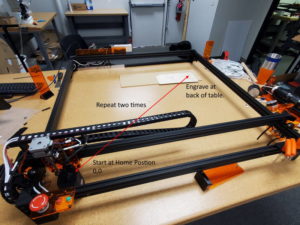

Repeatability testing:  Pattern was engraved in back of the machine at 30″, 30″ traveling from 0″,0″.  Process was repeated a second time traveling from 0″,0″ to 30″, 30″.  Kerf offset of 0.001″ measured.

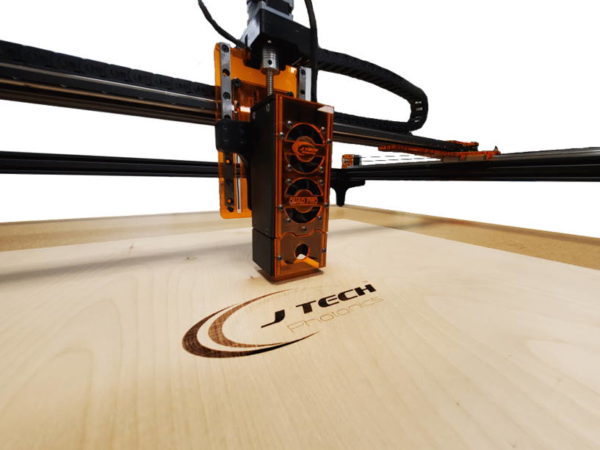

7W PRO at 80 inch/min 80% power on Birch Ply.

PRO Series V4 Assembly Instructions Page

Click here to see the instructions for putting the machine together and setting up the software and Wifi.

Click Here for the Lightburn Setup Instructions
