J Tech 32 Bit Motion Controller

$174.99

This is the fourth generation of our in house built motion controller for CNC and Laser systems.  Based on next generation GRBL open source firmware, this 32 bit controller is packed with features and abilities.  Connect to it directly with USB via Lightburn or Vectric or have a stand alone system and use an SD card or connect to it with a tablet or your phone via Wifi.

Amazing 5 Axis performance with a built in Rotary axis controller to be used with the J Tech Rotary Accessory.

Features:

-J Tech 32Bit Controller with Rotary Axis
-Web Interface for remote management
-Wifi enabled
-SD Card Reader for stand alone operation
-Lightburn and Vectric Laser Module Support
-4th Axis support
-New Fluid NC (based on GRBL)
-Enclosed case with mounting, USB, SD, and Power Switch

Available Options:

-NEMA 17 Silent Drivers
-NEMA 23 External Cables

SKU: Controller_NEMA17 Categories: ,

Description

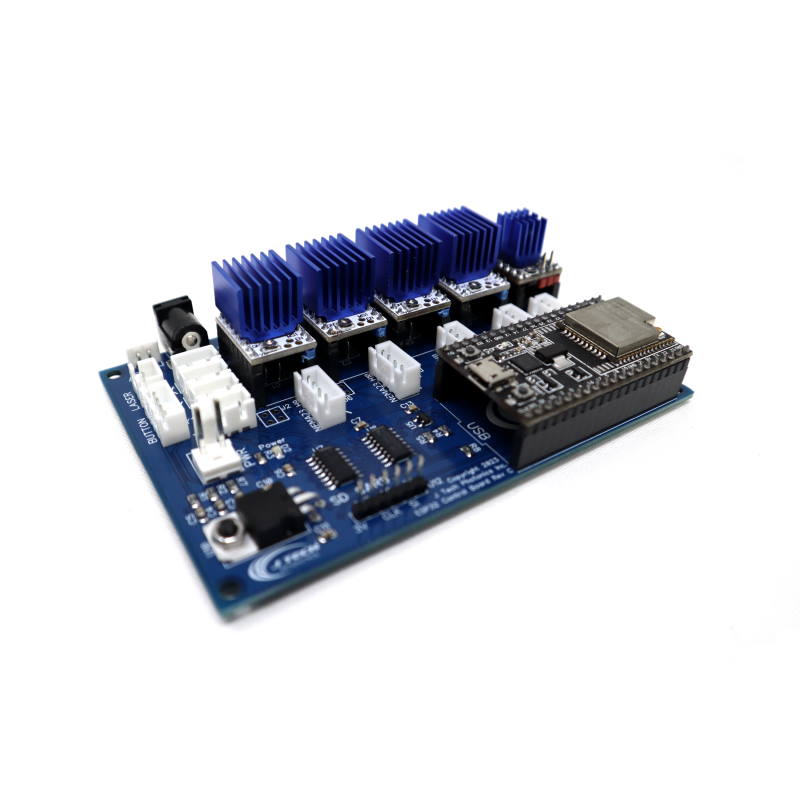

High Speed 5 Axis 32 Bit Motion Controller

This motion controller is designed to work with next generation GRBL open source firmware for controlling CNC and laser machines.  We have been very involved in the evolution of GRBL and this motion controller is a simple and effective way to control a machine with GRBL.  It offers easy to connect pinout for all signals and JST XH connectors for the more well used signals.

You can order it with NEMA 17 TMC2208 Silent Drivers or with external cables to connect to NEMA 23 motor drivers.

Product Options:

  • NEMA 17 Silent Drivers – This option comes with 5 NEMA 17 stepper drivers to drive your NEMA 17 motors.
  • NEMA 23 External Cables – This option comes with 5 open ended Enable, STEP, DIR, GND cables for connection to external motor drivers.

Product Features:

  • J Tech 32Bit Controller with Rotary Axis
  • Web Interface for remote management
  • Wifi enabled
  • SD Card Reader for stand alone operation
  • Lightburn and Vectric Laser Module Support
  • 4th Axis support
  • New Fluid NC (based on GRBL)
  • Enclosed Case with mounting points to fit on t slot rails
  • USB connector
  • Power Switch with indicators
  • OEM Power Adapter for motor power supply connection

Stepper Driver Features:

  • Power tube built-in drive current 1.4A ,peak current 2A, voltage range 4.75V-36V
  • CoolStep ™ current dynamic adjustment technology, can save 70% of the energy
  • stealthChop2 – faster motor acceleration/deceleration than stealthChop
  • Automatic stealthChop and spreadCycle switchover depending on velocity
  • Adjustable current limit setting with potentiometer
  • Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
  • Short-to-ground and shorted-load protection
  • Silent Operation

Product Comes With:

-32 Bit Controller with USB/SD/Power Switch
-OEM Power Cord
-Laser Molex to Mini Fit Jr Cable
-Air Assist Cable
-(5) TMC 2208 Drivers for NEMA 17 (OPTION)
-OR- (5) 6′ JST PH Cables for External Drivers

Instruction Manual

Works with Lightburn and Vectric Laser Module

Included Wifi support with Web interface for motion and configuration.

Control your project from your phone, remote computer, or tablet.

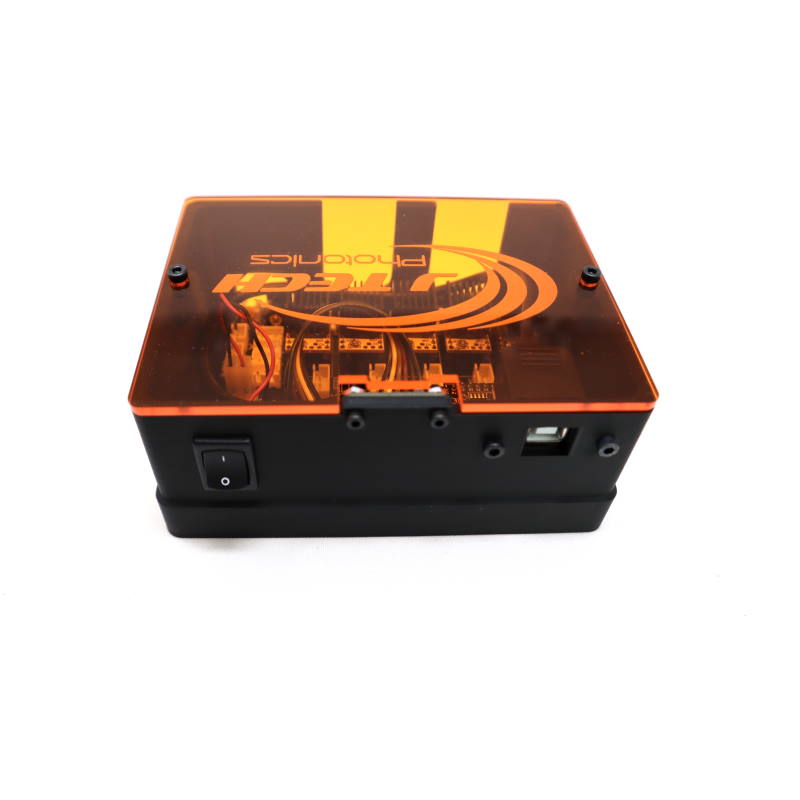

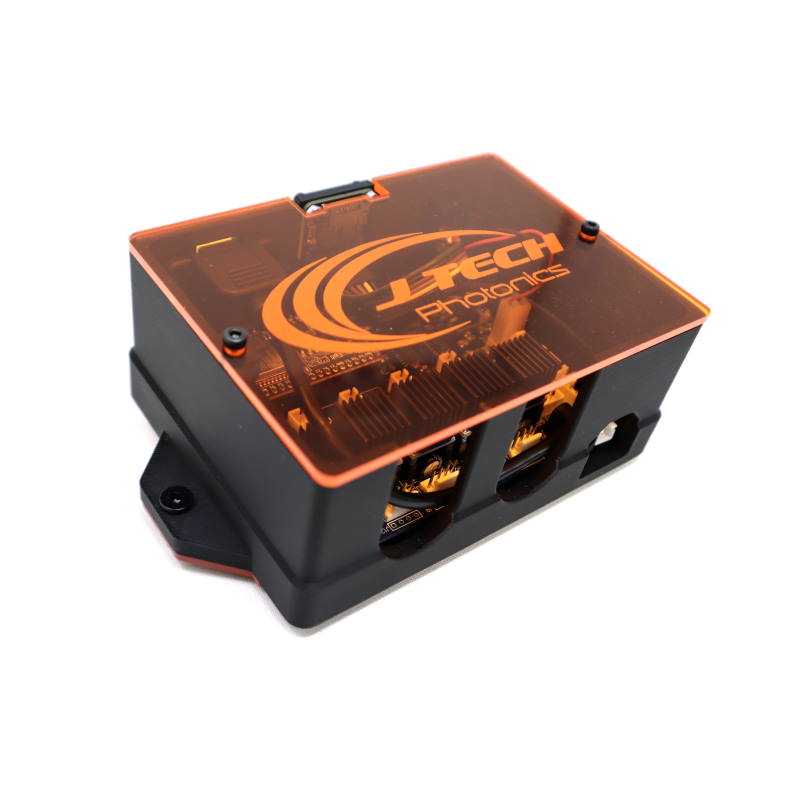

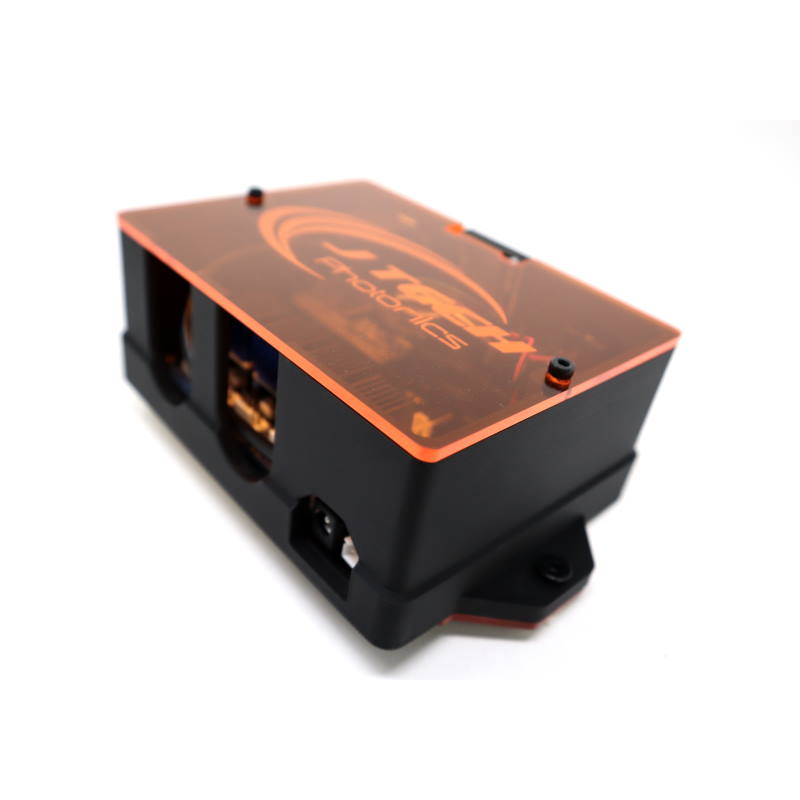

Fully Enclosed with Drop In T Nut Mounts







Additional information

Weight 2 lbs
Dimensions 10 × 10 × 6 in
Controller Type

NEMA 17 Silent Drivers, NEMA 23 External Cables
