Shapeoko3 Magnet Mounting Kit

$14.99 – $39.99

New and Improved!  More Rigid Design!

Works On ALL 3, 3XL, and 3XXL Models

This is the mounting kit for the Shapeoko 3 CNC system as seen in the instructions page.  This kit includes everything needed to upgrade your Shapeoko3 XL and XXL system.

Choose if you want the full mounting kit or just the plastic mount

SKU: N/A Category:

Description

Shapeoko3 Magnet Mounting Kit

Laser Upgrade Your Shapeoko3!

Installation Instructions:  CLICK HERE

Purchase this if you bought the magnetic laser shroud version.

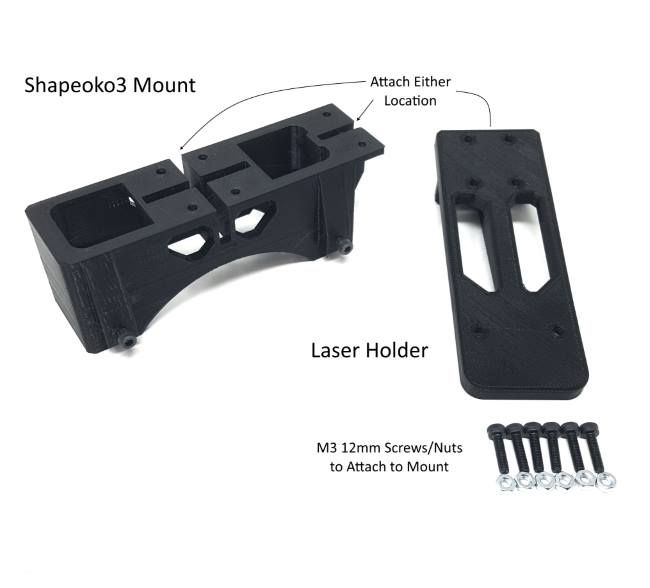

  1. Laser Holder: Holds the laser and attaches to the Mount.
  2. Dust Boot Mount:  Fits over the aluminum spindle holder in the front.

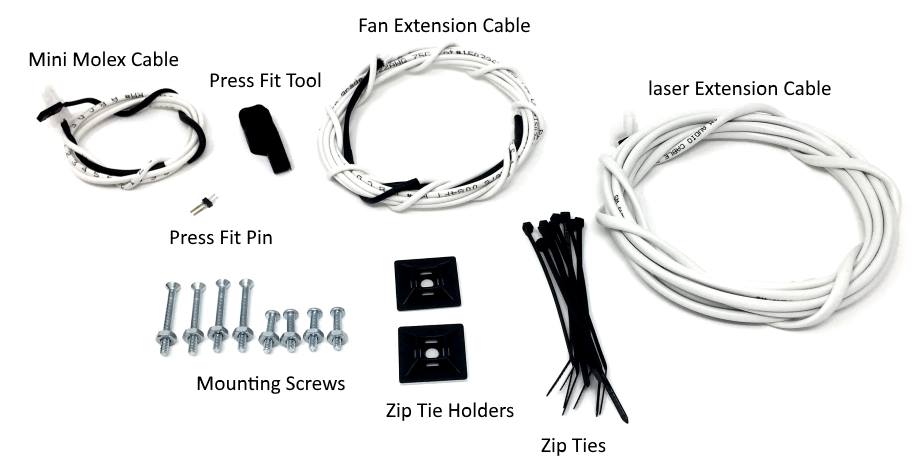

  3. M3 12mm Screws/Nuts: To attach the laser holder to the main mount.
  4. Zip Ties: To clean everything up for cabling.
  5. Zip Tie Holder: To place on the Z axis gantry to hold the laser cable in place.
  6. Molex Mini Fit Cable:  Input control cable for the laser driver to the Carbide Board.
  7. Press Fit Pin and Tool: For putting the press fit connector on the Carbide Board.
  8. Laser and Fan Extension Cables:  10 ft extension cables for the laser and fan.

Full Mounting Kit



Two Mounting Locations Available

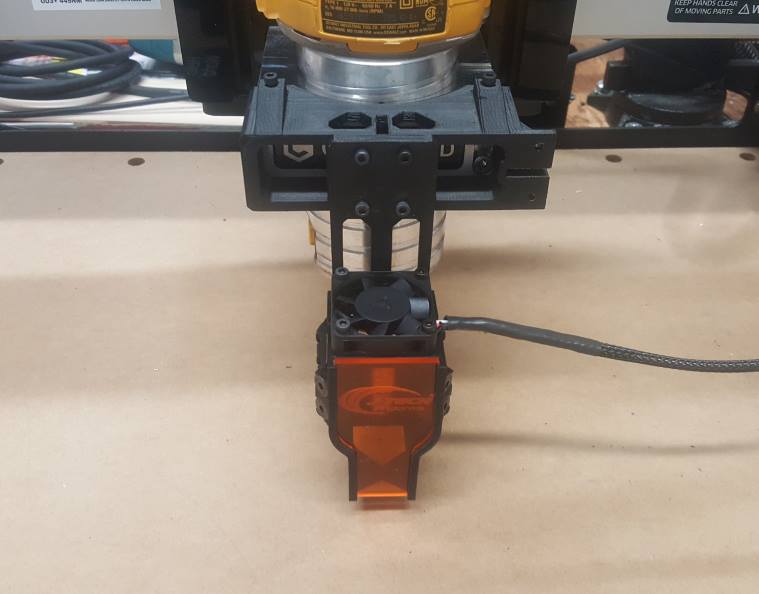

Middle Position

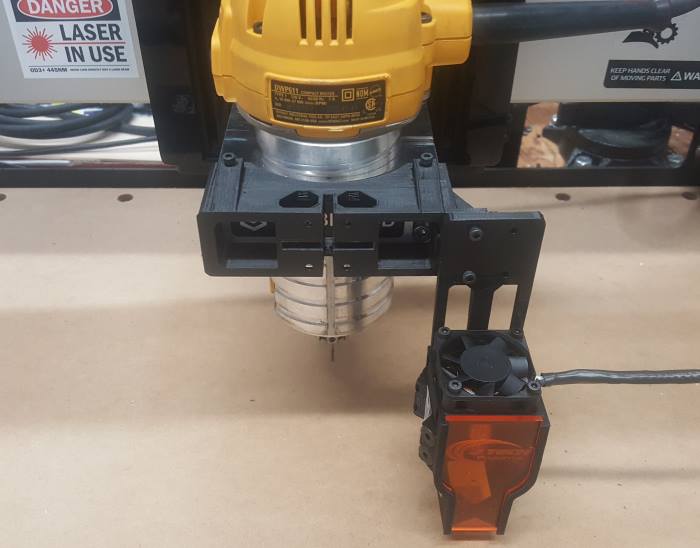

Side Position

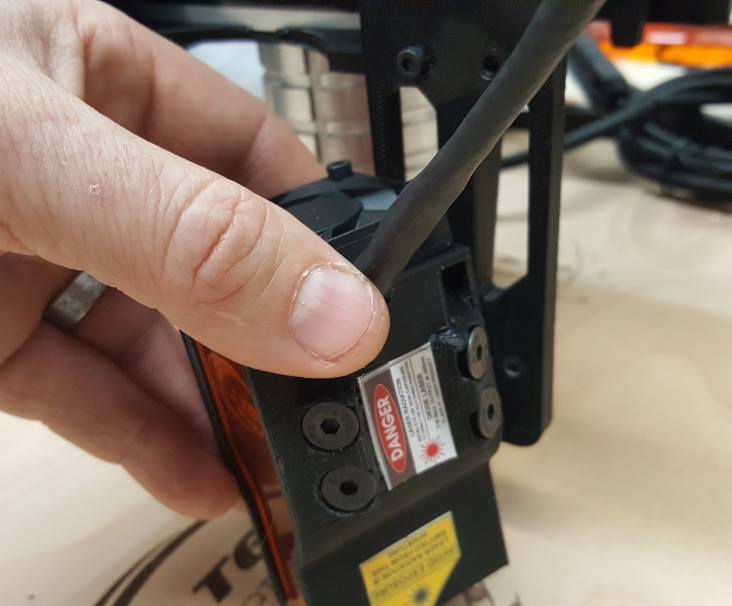

Magnets Make it Super Easy to Remove When Not Using the Laser!









Additional information

Weight N/A
Dimensions N/A
Mount Options

Just the Mount, Full Mounting Kit
