ACRO Z Stage Upgrade

$124.99

UPGRADE the Laser on your ACRO system with our Z Stage.  Fit’s all J Tech Photonics Lasers.

***Does not come with a laser. This is for customers who already own an ACRO Kit with our laser and want to upgrade to a Z Stage with magnet mounts.***

SKU: Z_Stage_ACRO Categories: ,

Description

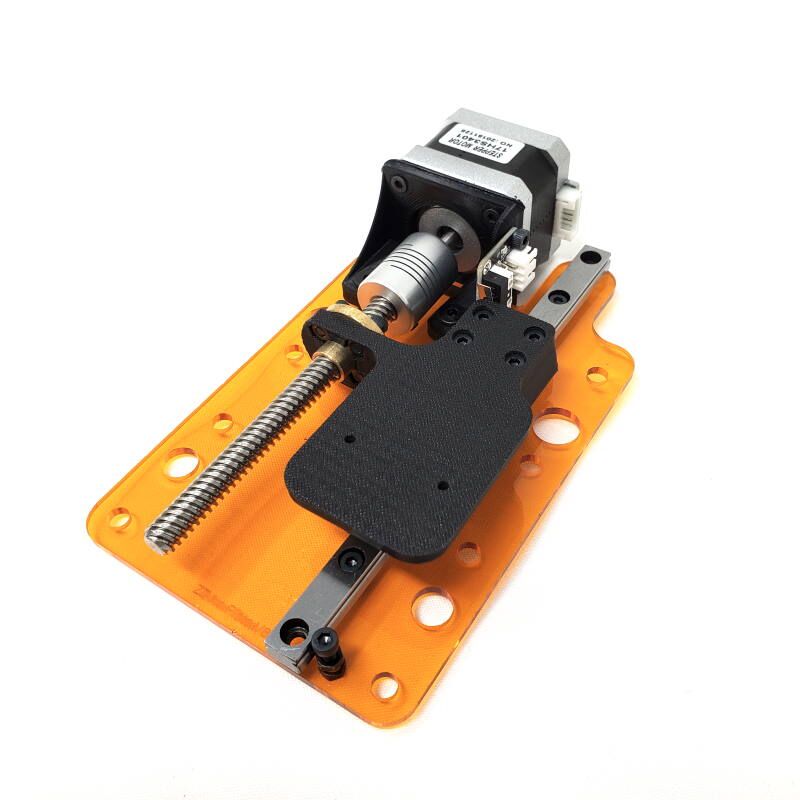

UPGRADE the laser on your ACRO kit with our Z Stage!

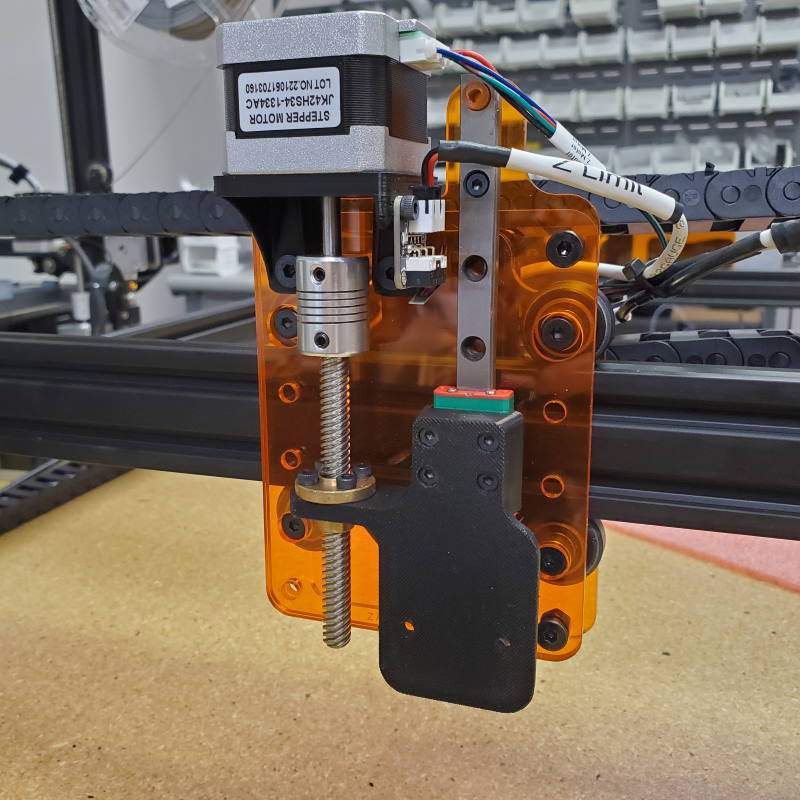

Shown with the shrouded laser mount (not included).  Includes open magnet base sled for non-shrouded lasers.

All J Tech Photonics lasers will mount with no problems.
All other lasers will require some additional modification to mount.

Specifications

Threaded Rod:
-Thread Pitch:  8mm
-Diameter: 8mm

Nema 14 Motor:
-Step Angle(degrees):  1.8 Degree
-Current / Phase:  0.35A
Rated voltage: 10.5V
-Shaft Diameter: 5mm

Looking for our complete ACRO Bundle?  CLICK HERE

**Can be modified for other machines.  Email us at [email protected] for more information.

Contents:

Z Stage Assembly

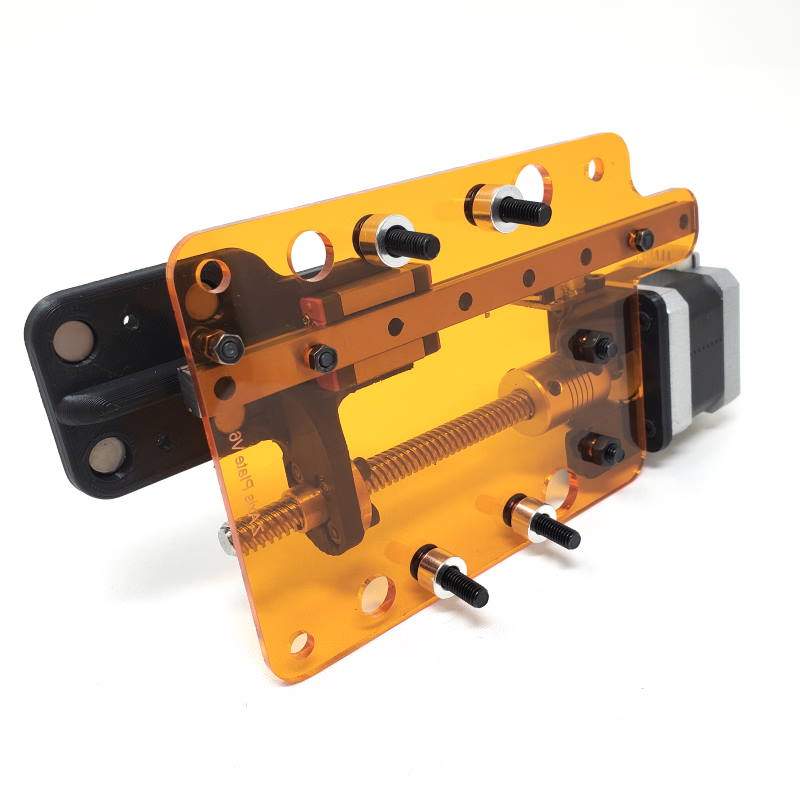

Z Stage Mounting Hardware:
-4x M5 15mm screws
-4x M5 Nuts

Magnetic Laser Base Plate



Additional information

Weight 1 lbs
Dimensions 6 × 4 × 2 in
Sticker Version

1W Laser Stickers, 2W Laser Stickers, 2.8W Laser Stickers, 3.8W Laser Stickers
