IDC26 Breakout Board

$19.99

IDC26 Breakout Board for Ethernet Smooth Stepper

If you are connecting your J Tech laser to the AVID CNC and the Ethernet Smooth Stepper, then you need this board.  It is designed specifically to work with the J Tech instructions for connecting your laser to the AVID CNC so you won’t have any issues or problems.  Everything is labeled correctly.  Comes with:

  • IDC26 Breakout Board

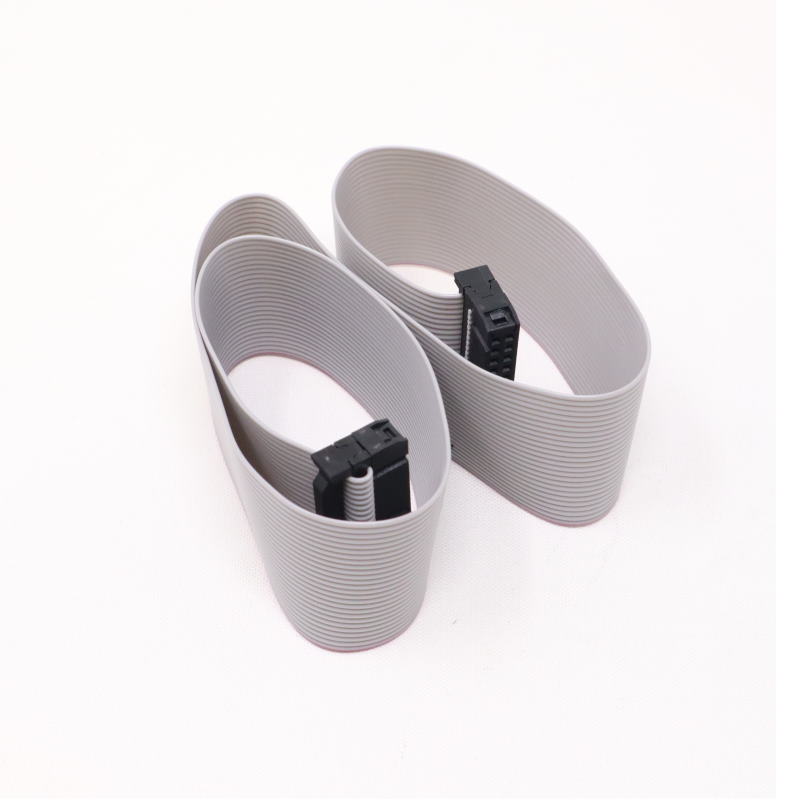

  • Ribbon Cable

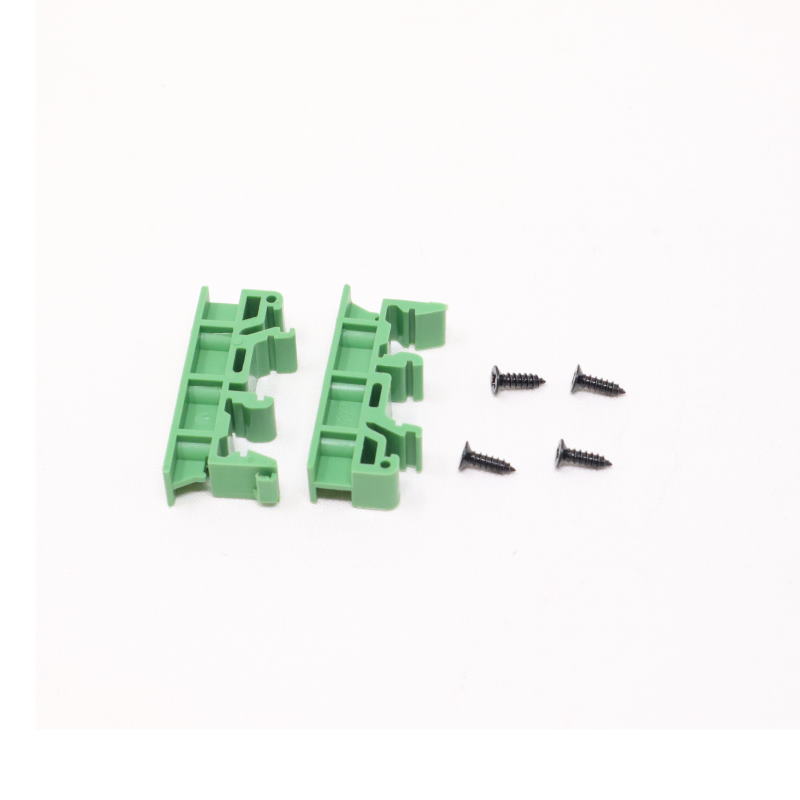

  • DIN Rail adapter



SKU: IDC26_Breakout Categories: ,

Description

IDC26 Breakout Board for Ethernet Smooth Stepper

We have been doing upgrades to the Ethernet Smooth Stepper for years with the AVID CNC but were frustrated with the options for interfacing to the board.  It took about 3 hours on the phone with a customer who purchased a mislabeled board from another supplier that we finally said “Enough”!  So, we just decided to make our own to make sure it is done right.

Here it is.  The new IDC26 Breakout Board for the AVID CNC and Ethernet Smooth Stepper.  If you are going to integrate your J Tech laser into the smooth stepper, you need this board to get to the signals for the laser control.

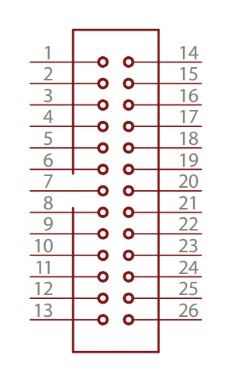

Here is the pinout of the board:

IDC26 Breakout Pinout

IDC26 Breakout Pinout

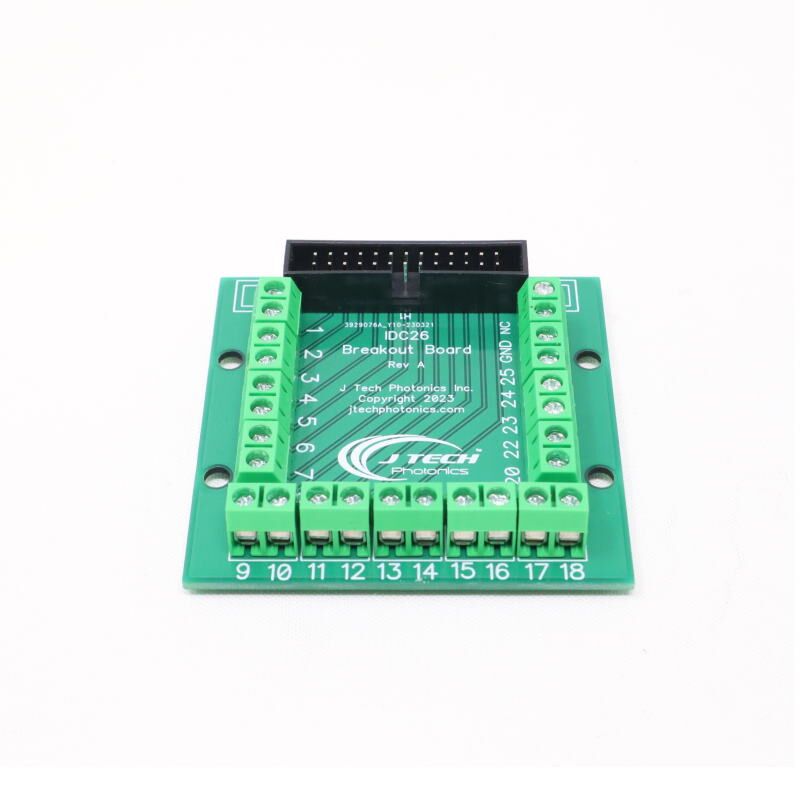

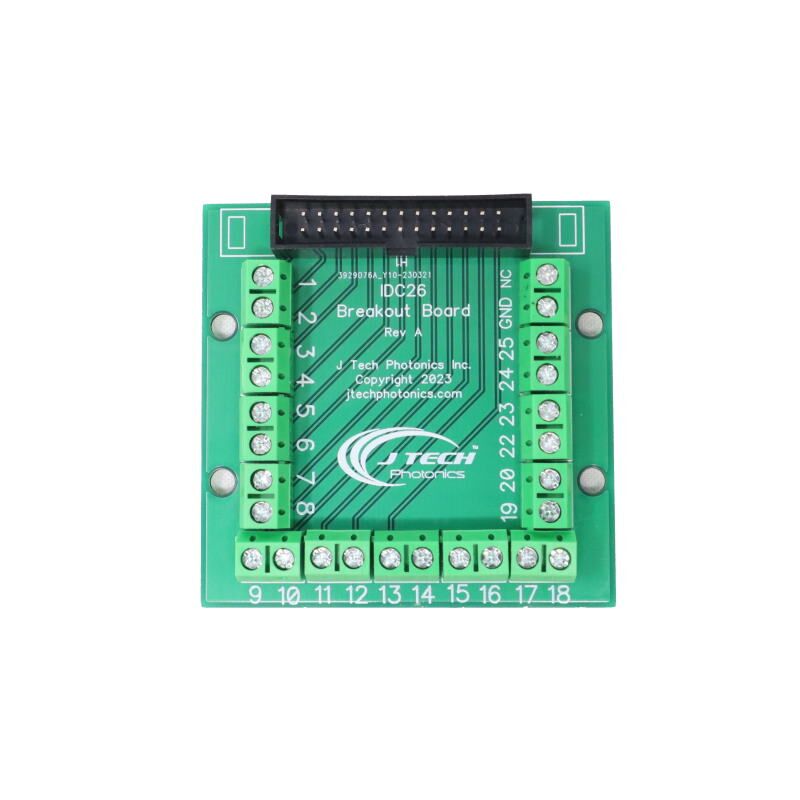

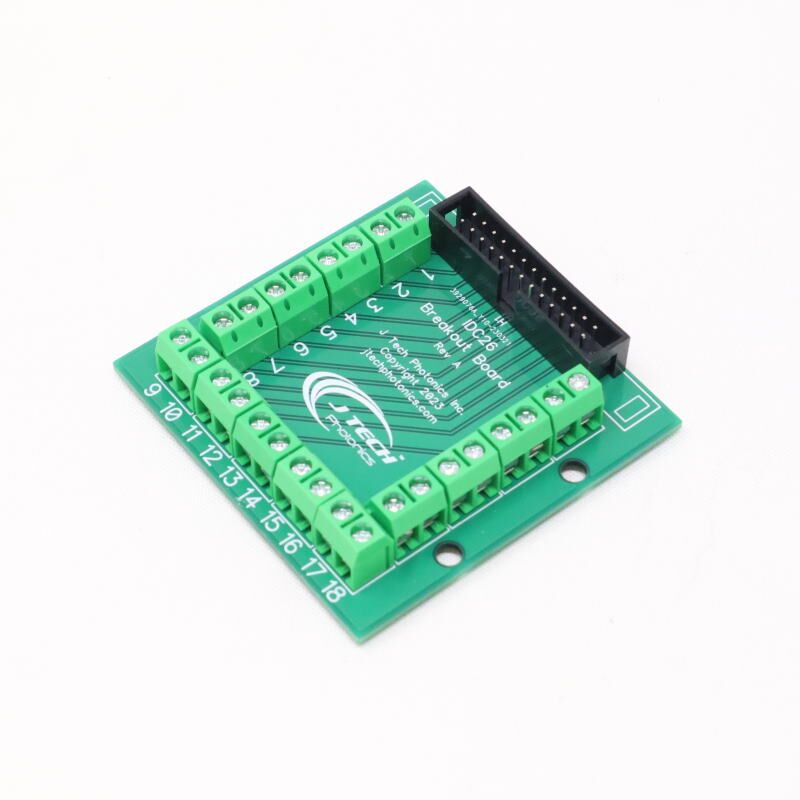

IDC26 Breakout Board

IDC26 Breakout Board
