Description

Worlds first 44W Diode Laser Designed for Upgrading Your CNC

Bring your CNC machine to life by adding the most powerful laser upgrade ever.

How do you make the highest power laser upgrade in the world?  Combine eight 7W lasers together with the most advanced electronics and optics and put it in the most engineered heatsink and package so it performs well in every application.  That is how, and that is what we did.

Introducing the highest power diode laser available specifically designed for upgrading your CNC machine.   The J Tech Photonics OCTO PRO 44W laser is here!

Product Features:

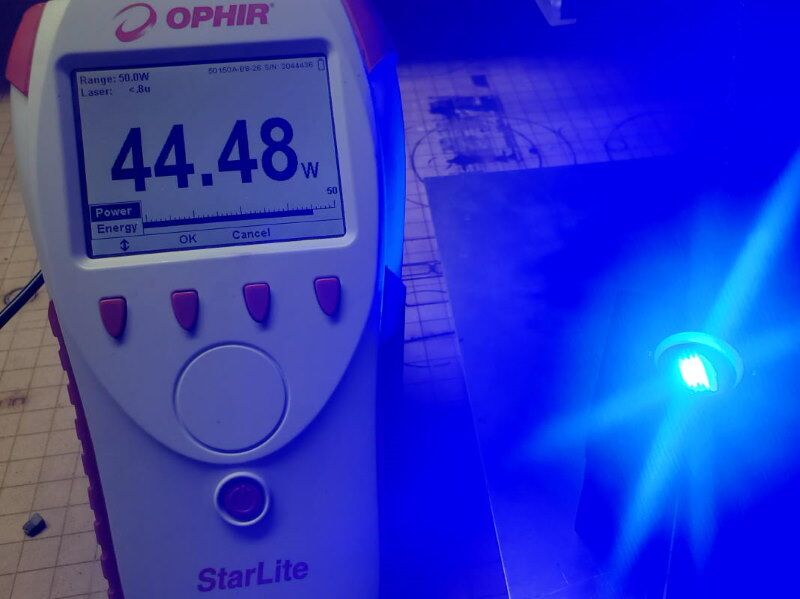

• Incredibly Awesome 44W of Maximum Optical Power, the highest power laser of its kind on the market!
• Integrated electronics – No power loss on extended cable runs
• Advanced Tilt Sensor Technology™, laser will only fire when pointed down at the material for extra safety.
• FDA compliant interface module for extra safety with power on reset and locking key switch.
• Optically isolated inputs for industrial control
• Adjustable low power mode – no more burning your project in low power.
• Full metal enclosure with integrated J Tech safety shielding
• Full Metal Mounts with Magnetic latching and the ability to lock in place.
• Integrated Air Assist Nozzle.
• Maximized cooling with 40CFM 80mm fan.
• Adjustable Focus for 3D engravings.
• Spindle chuck mount option available (coming soon).



Same Power as a CO2 laser

With 8 combined diodes, this laser produces similar power levels as entry level standalone CO2 laser machines, which retails for thousands of dollars.  For a fraction of the price, you can have the similar cutting ability on your CNC.

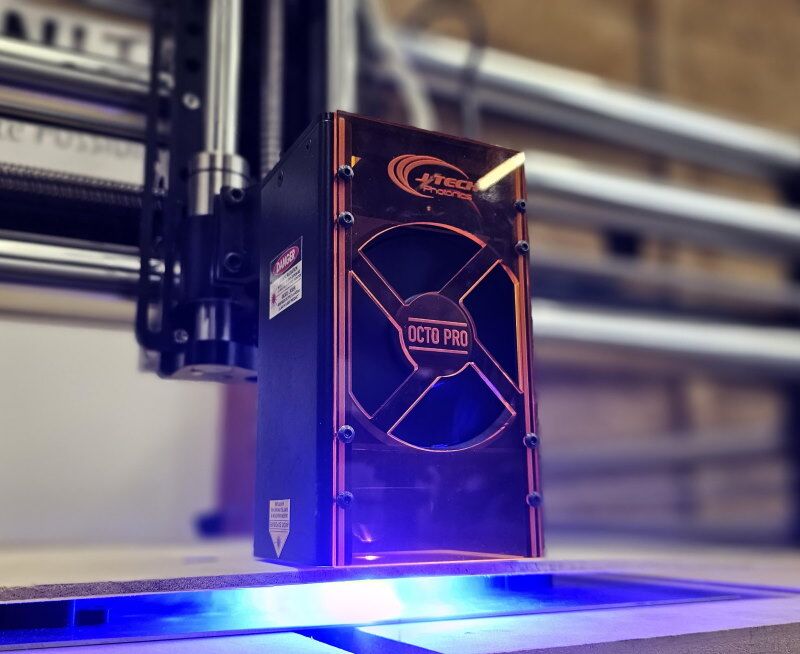

Cut More and Cut Faster

Increase your productivity with 44 watts of optical power to make your projects quicker and cut more materials.  Blast through 1/8” plywood or dark acrylic with ease.







Integrated Air Assist

The Air Assist improves cutting and engraving and is integrated into the laser with easy quick connect fittings which makes it easier to route your air hose to your cable chain on your CNC.  It is recommended to always use the air assist when using the laser. The integrated air assist is a huge advantage for this laser.  *Pump not included. 50W Aquarium Pump for Cutting











Integrated Electronics and Safety Interface board

The main control board to manage 4 separate laser diodes is integrated into the laser housing.  What does this give you?  It maximizes the current to the diodes for full performance without any line losses.  The integrated board does the heavy work while the safety interface board does all of the industrial input optical isolation, power conditioning, and safety.













More Power and More Safety

At J Tech Photonics, we have always put safety first.  This laser is no different.  The laser safety board includes our locking key switch, power on reset protection, remote interlock ability, and emission indication.  The laser head has a patent pending Tilt Sensor Technology™ integrated into the electronics to only allow the laser to fire when positioned facing downwards towards the work surface.  If it accidentally gets knocked off the mount or is not on the mount, the laser shuts off and will not fire.









Full Metal Mounts with Latching = Stability

All of the CNC bundles with the 44W laser include metal magnetic mounts for more stability.  This laser is a beast, and more power means a heavier laser.  The locking screws lock into the mount and the magnets hold it in place for a tight fit.  If you want to have your laser attached to the mount even more, you can tighten the screws to make it so you can’t remove it.







Low Power Adjustment for Beam Placement

The OCTO PRO 44W laser has a lot of power.  But when you want to find the center position on your workpiece, you don’t want it to burn a hole in your wood before you even start engraving. So, we have included an adjustable low power mode into the safety interface board to allow for precise control over the power setting.  Now, when you fire your laser at 1%, it won’t burn your project.





Our Team.  Number 1 in Customer Service

We boast a team of professionals dedicated to our work. We have years of experience in the industry, so we know what high-end industrial manufacturing facilities are looking for and we aim to provide it. We design lasers that we would be proud to use ourselves.  You can get in touch with us via phone or email and we answer your questions quickly and efficiently because we have the knowledge to do so.

Made in America by a Company That Stands by its Products

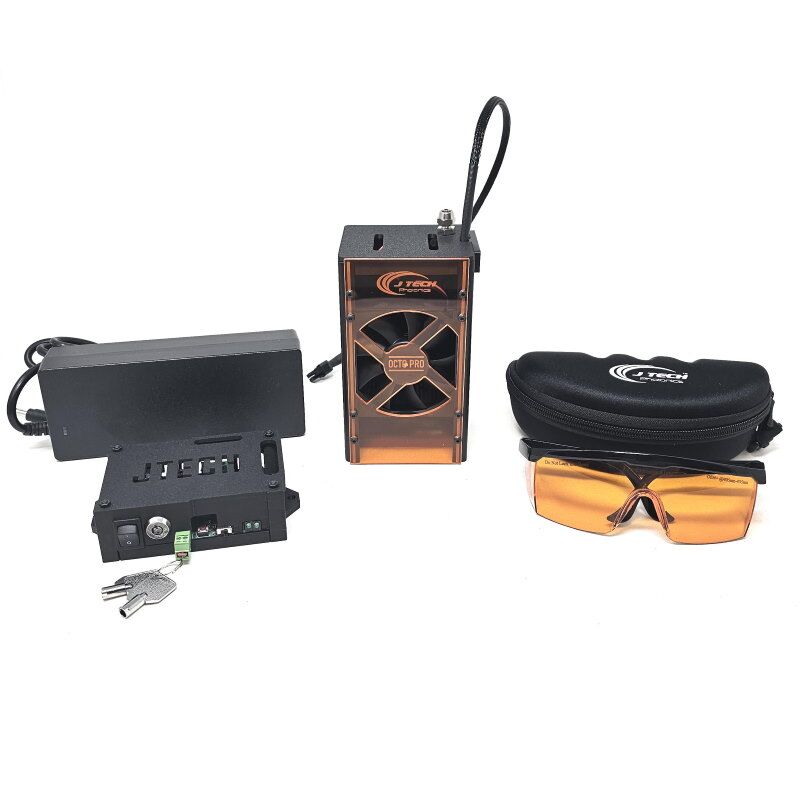

What this kit includes:

The standard kit comes with:

• 44W OCTO PRO laser head with metal magnetic shroud
• Laser safety interface board
• Power Adapter 24V, 6amp
• Laser Safety Goggles for 445nm Lasers
• 3′ Input Cable (for longer lengths purchase here)
• Laser Focus Tool
• Air assist nozzle, 12′ of air hose, and 5 material risers. (pump not included)

Specifications

Laser Head

Maximum Laser Optical Power	44W
Laser Spot	0.08mm*0.1mm
Wavelength	445± 5nm
Integrated Safety Feature	Angle sensor, 45 degree
Operating Temperature:	5 to 40 °C
Storage Temperature:	1 to 45 °C

Interface Board

Protection:	Soft Start, Reverse Voltage, Current Limit, Thermal Shutdown
Integrated Safety Features	Laser Enable Key Switch, Integrated Laser Interlock, Power off Reset, LED Indicators
AC Adapter Input Voltage:	100 – 240 VAC
Control Signal Digital Isolation Voltage:	4500 Vrms
Minimum Control Signal ”Turn On” Voltage:	2.8 Volts
Control Signal Maximum Voltage:	24Volts
Control Signal Maximum Current:	50 ma
Control Signal Maximum Frequency:	2.5KHz
Connectors:	Screw Terminal and Molex Mini-Fit Jr™ Connectors
Operating Temperature:	0 to 40 °C
Storage Temperature:	-40 to 70 °C
Dimensions:	3.6″ x 2.2″
