Description
The guys over at suckitdustboot.com have made a really great add on to the Shapeoko3 by adding a dust boot. We thought this was a good opportunity to look at making the laser work with it as well. You can add some safety to your laser installation as well as add some some vacuum ability as well to remove smoke as well.
*Note*: This is just for the plastic laser mounting kit to work with the Suckit. You need to purchase the Suckit Dust Boot from www.suckitdustboot.com.
This mount will work with many dust boots on the market. If you have questions about fit, please contact us!
Laser Upgrade Your Shapeoko3!
Installation Instructions: CLICK HERE
Purchase this if you bought the magnetic laser shroud version.

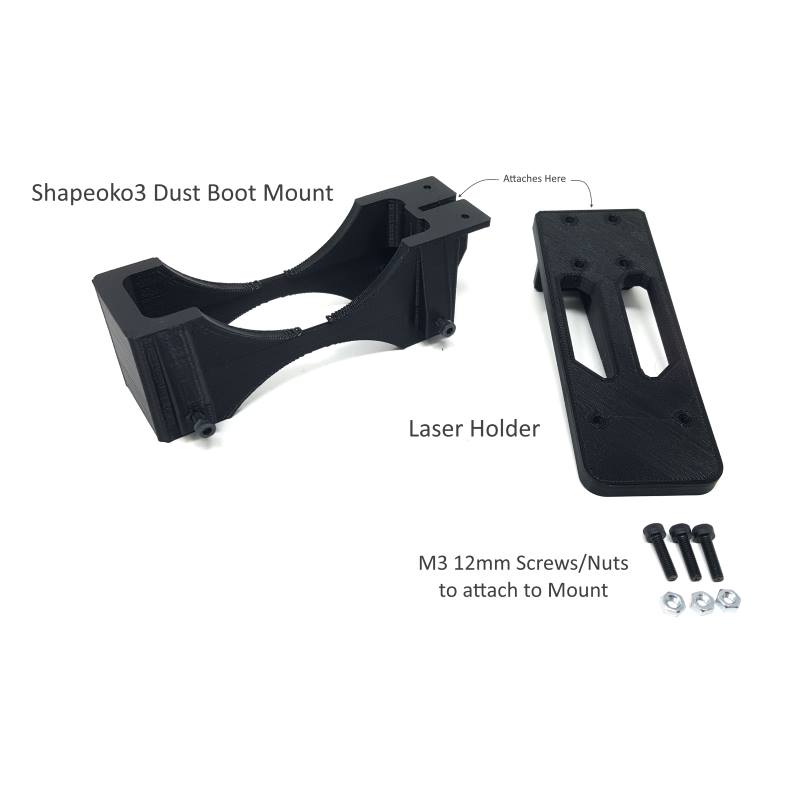

- Laser Holder: Holds the laser and attaches to the Mount.
- Dust Boot Mount: Fits over the aluminum spindle holder in the front.

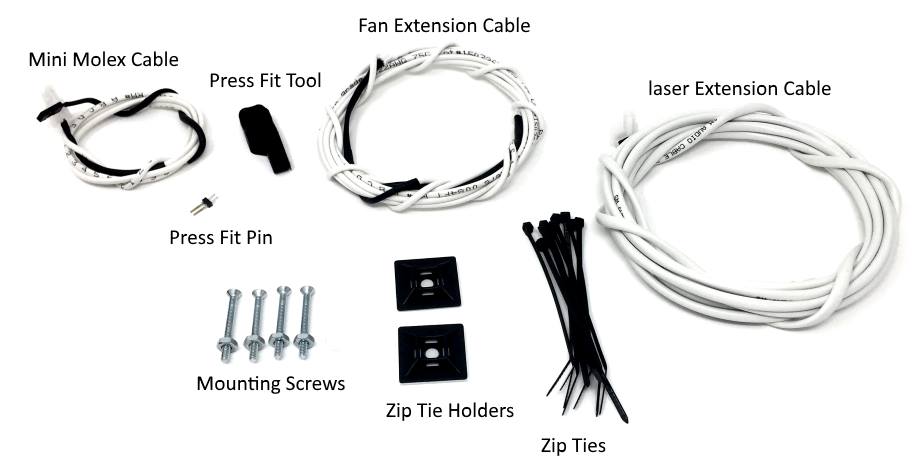

- M3 12mm Screws/Nuts: To attach the laser holder to the main mount.
- Zip Ties: To clean everything up for cabling.
- Zip Tie Holder: To place on the Z axis gantry to hold the laser cable in place.
- Molex Mini Fit Cable: Input control cable for the laser driver to the Carbide Board.
- Press Fit Pin and Tool: For putting the press fit connector on the Carbide Board.
- Laser and Fan Extension Cables: 10 ft extension cables for the laser and fan.

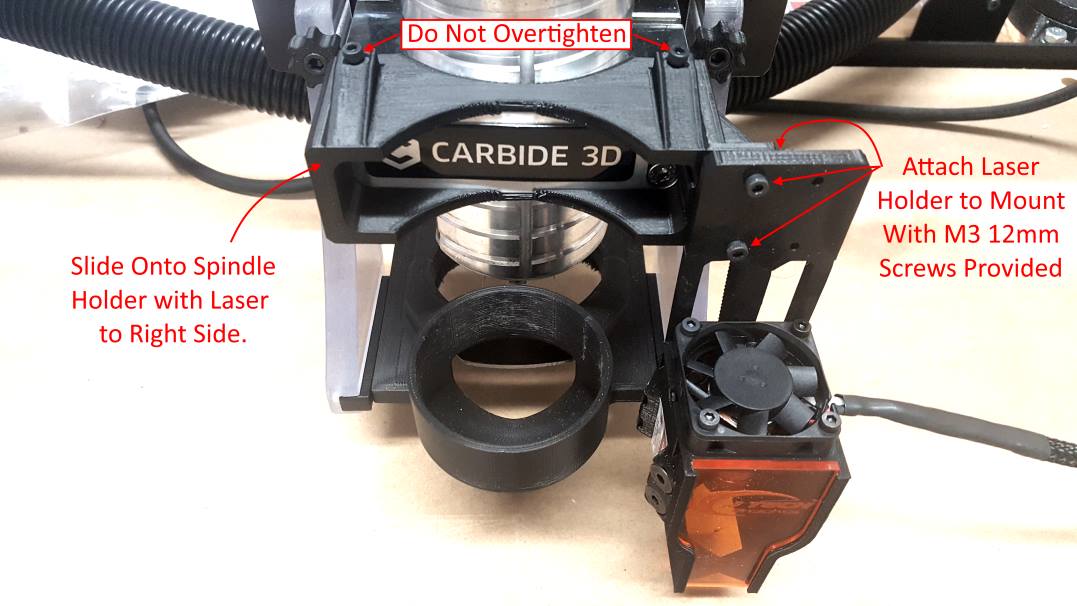

The mount leaves room for the dust boot hose in the front.
Magnets Make it Super Easy to Remove When Not Using the Laser!
