X Carve Compatible Magnet Dust Boot Mounting Kit

$14.99 – $39.99

Magnetic Mounting Kits for the Quick Connect Laser Shroud

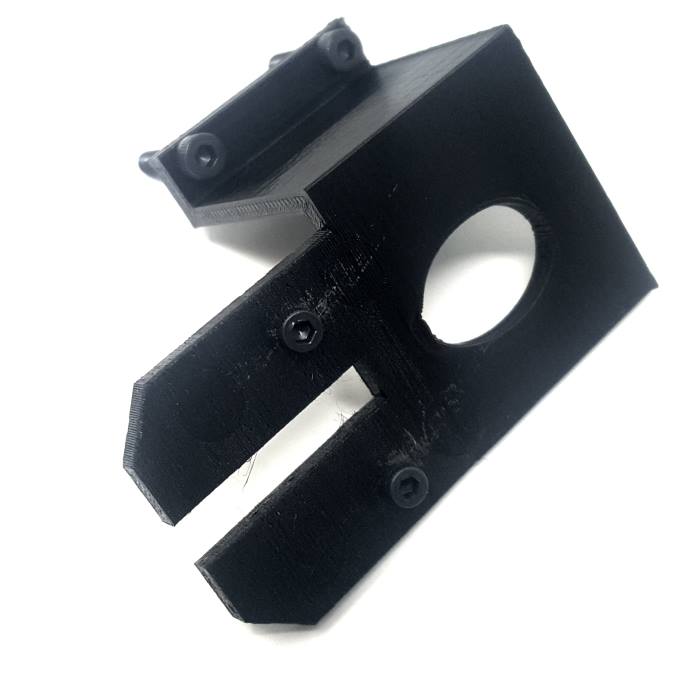

This SIDE mount will go on the side of the Dewalt 611 spindle holder and allow you to keep your entire dust boot on including the bottom portion of the boot.

*J Tech Photonics is not affiliated with Inventables or X-Carve and they do not endorse this product.  This is an aftermarket add-on and all risk is taken by the consumer.



SKU: N/A Category:

Description

Magnet Dust Boot Mounting Kit

The kit works with all old and new X Carve machines.  It also works with machines with the new Z Axis slider upgrade.  We no longer mount the laser on the top of the Z gantry and instead mount it on top of the X Controller and run the cables to the gantry.

Installation Instructions:  CLICK HERE

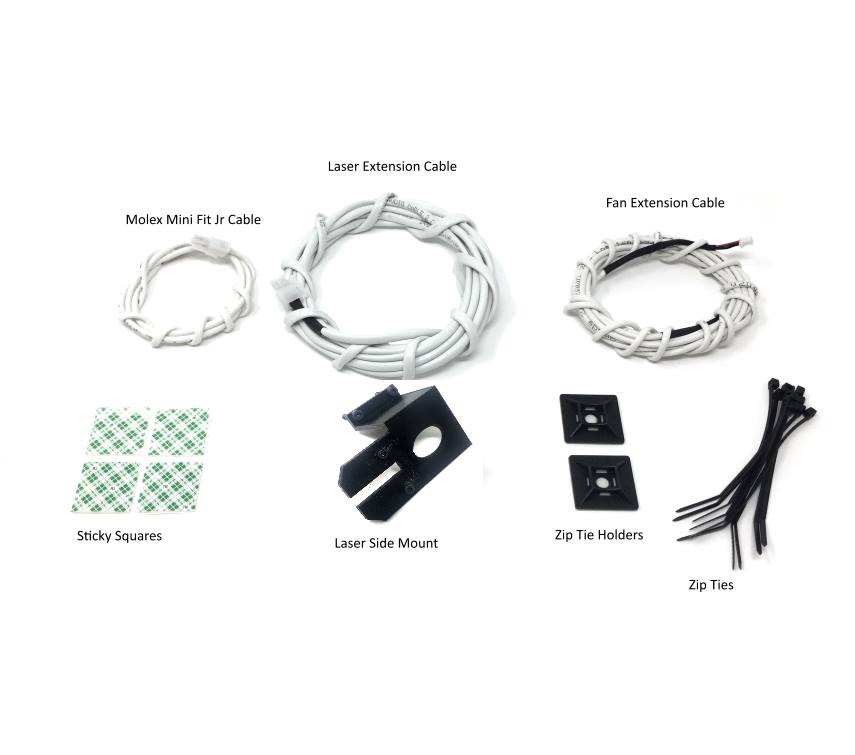

The full kit includes the side mount and everything else in the original X Carve Mounting kit.  Purchase this if you bought the magnetic laser shroud version.

  1. Laser Mount: To put in the spindle holder for the laser to connect with magnets.
  2. Laser Mount Screws/Nuts: To mount the laser on the laser mount.
  3. Laser Spindle Mount Screws/Nuts: Longer M4 Screws to be able to place the laser mount in the spindle holder.
  4. Zip Ties: To clean everything up for cabling.
  5. Zip Tie Holder: To place on the Z axis gantry to hold the laser cable in place.
  6. Molex Mini Fit Cable:  Input control cable for the laser driver.
  7. Laser and Fan Extension Cables:  10 ft extension cables.

Full Mounting Kit

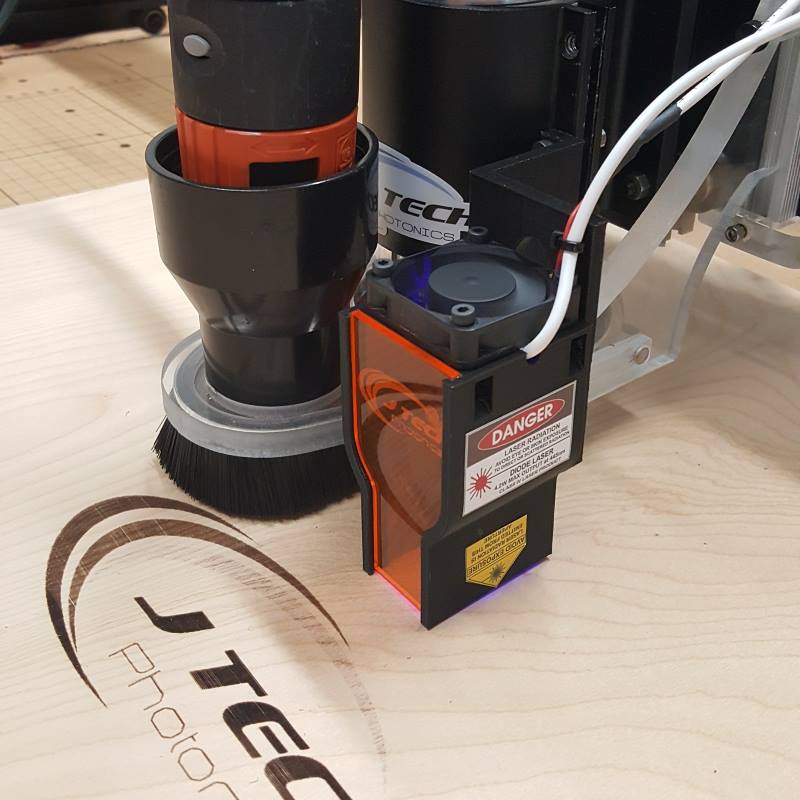

Super Easy to Remove When Not Using The Laser
