Description

Sienci Labs All in One Laser and Bundle

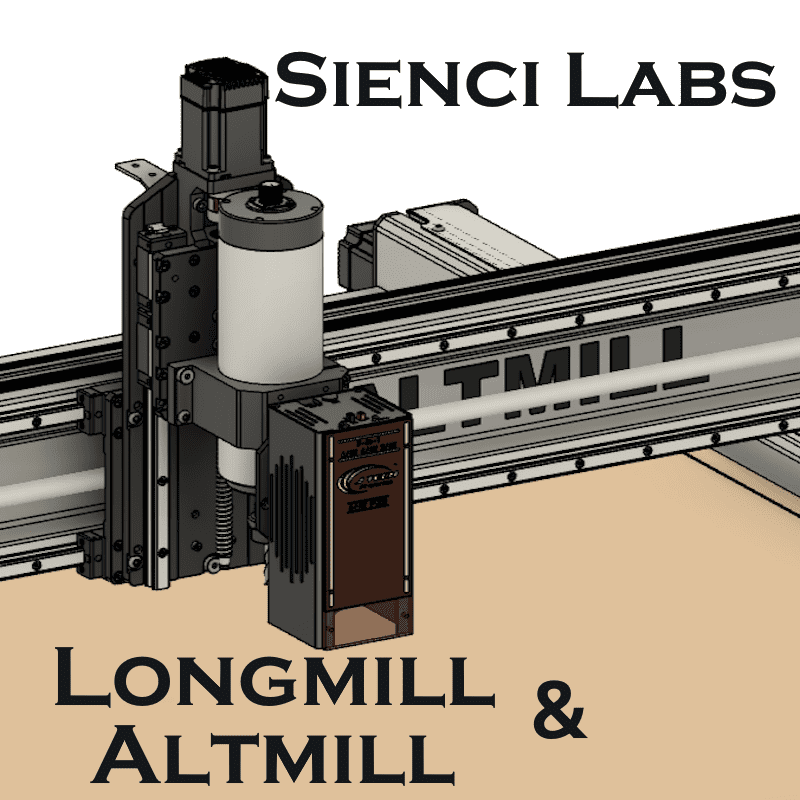

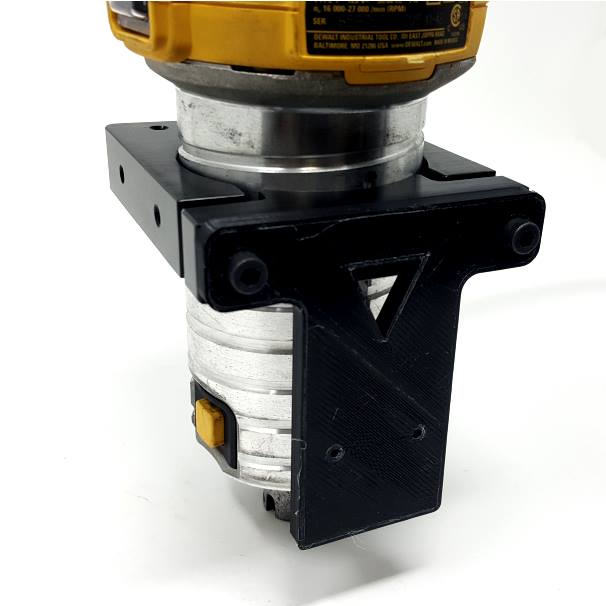

All the choices to add a laser to your Sienci Longmill or Altmill CNC in one place.  This kit works with the standard spindle mount that comes with the CNC.  It works with all sizes of the machine, up to the 48″ x 30″ machine.

1. Pick your Laser Wattage:

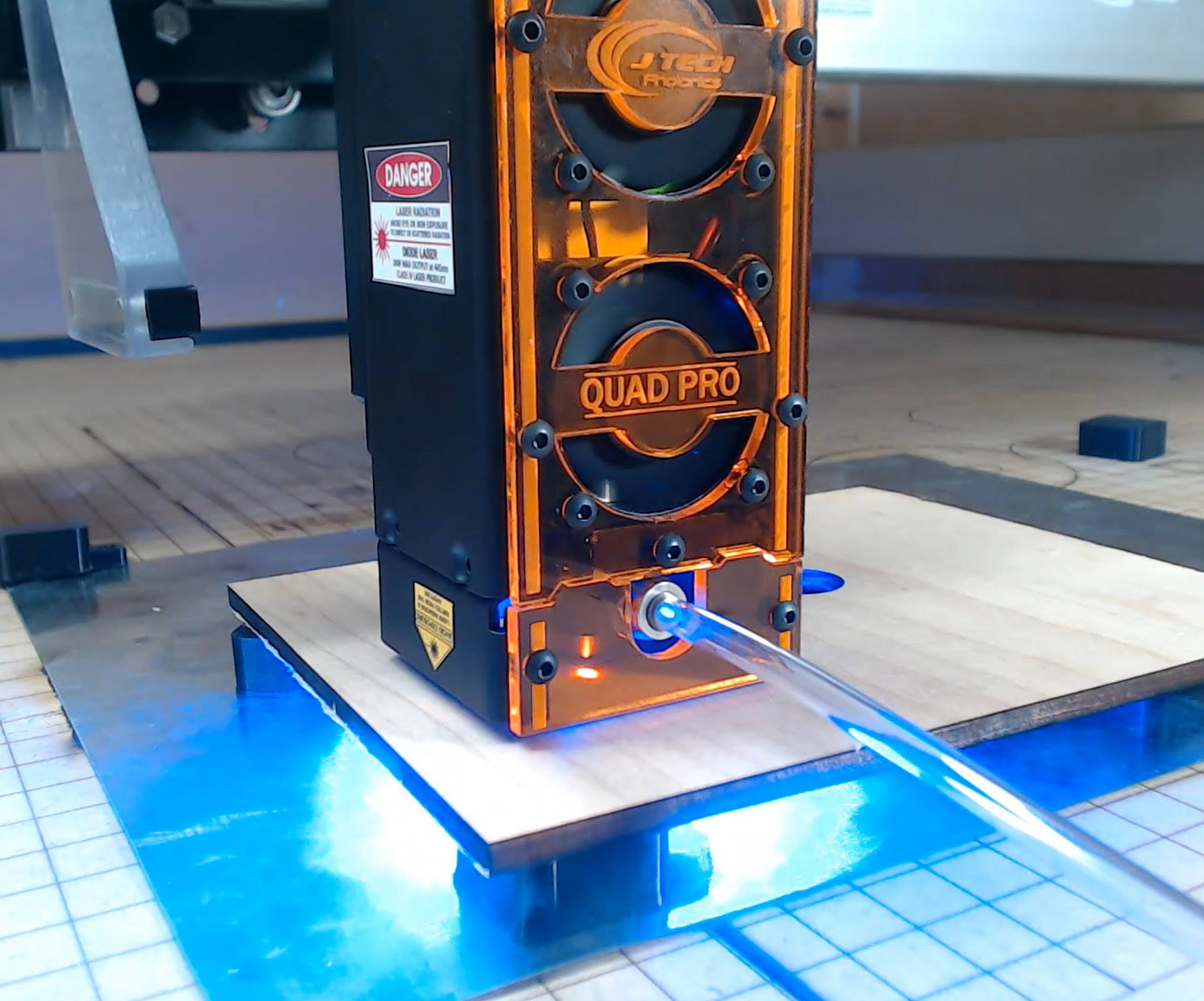

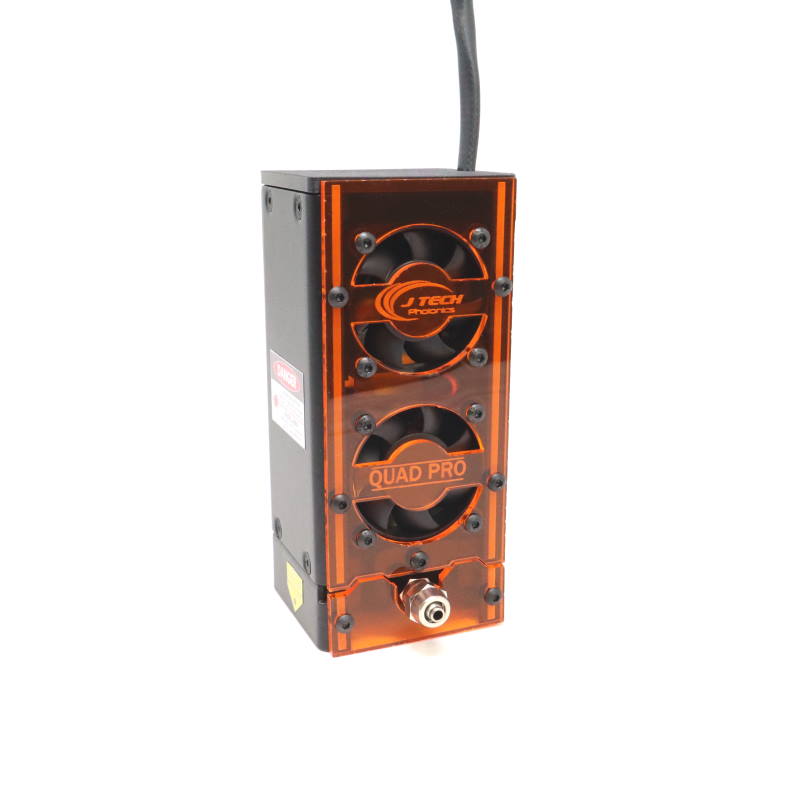

There are 5 wattage levels to choose from ( 7W+, Dual PRO 14W SI, 24W Quad PRO , 44W OCTO PRO or the new 64W PRO 3-in-1).  Most customers go with the highest power they can afford.  The lower power has a lower price, but will take longer to do the same burn level in an engraving.   The 7W+ laser is made for engraving fine detail, the Dual Pro 14W SI laser will be for faster engraving.  The 24W Quad Pro will be good for cutting and engraving and the 44W Octo Pro will be the best for cutting and fastest at engraving.

2. Choose Your Power Cord:

We have options for U.S. (North America), UK (United Kingdom), EU (European Union), and AU (Australia).

The standard kit comes with:

• Laser Head with Magnetic Mount
• Laser Shroud or Magnet Base Plate
• Safety Interface Board
• Power Cord
• Laser Safety Goggles for 445nm Lasers

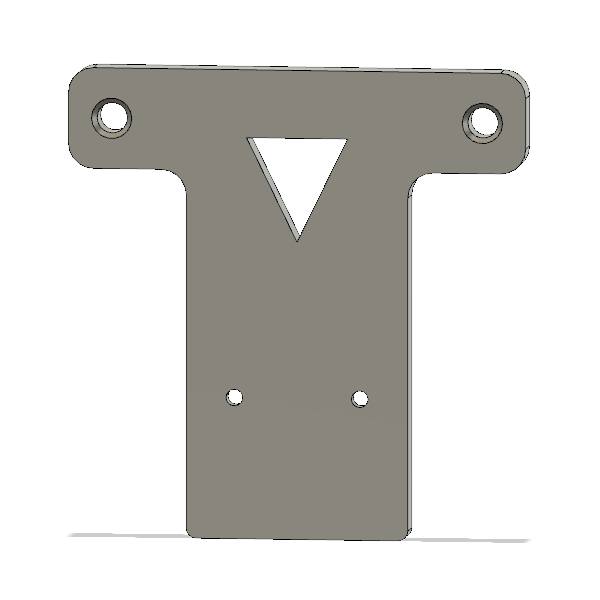

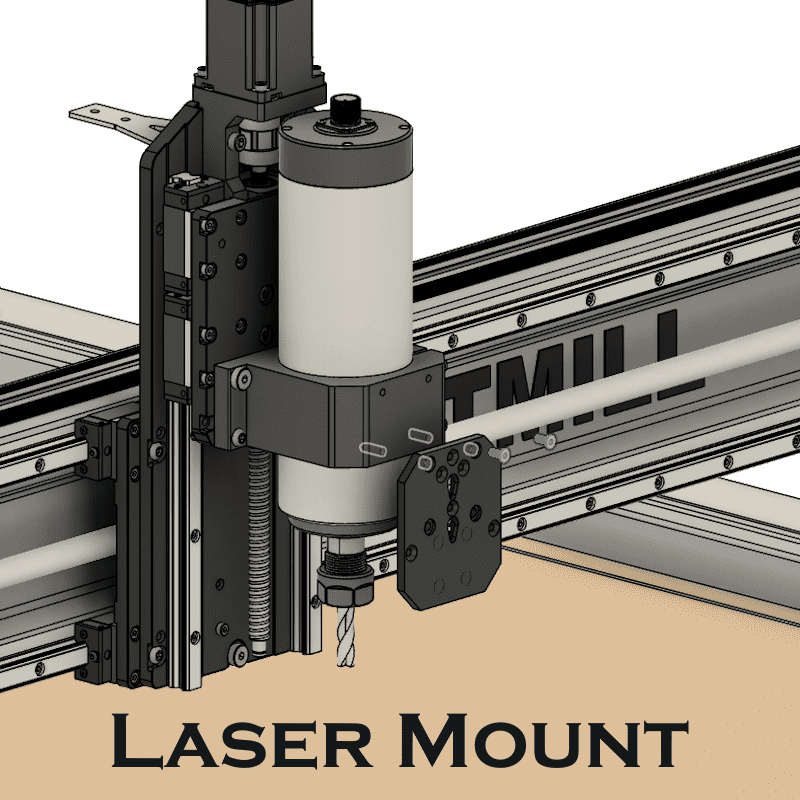

• Laser Quick Connect Magnet Mount (*Metal mount for the 64W and 44W Laser)
• 3 foot Mini Molex Jr. Input Cable
• Mounting Screws
• Driver Mounting Sticky Squares
• Laser Extension Cables
• Zip Ties and Zip Tie Holders

Air Assist Option:

The 64W, 44W and 24w laser comes with the integrated air assist nozzle, hose, and risers.  Pump not included.  50W Aquarium Pump for Cutting

For 7W+ and 14W Dual PRO SI lasers, the air assist nozzle kit is here:  Air Assist Nozzle Kit

Higher power lasers come with the metal mounting plate

Features:

We still have all of the features that make this laser kit awesome – precision laser trimmed regulators for constant current to the laser, 0.01 tuning resolution, digital isolation, soft start, esd protection, current limiting, and the list goes on.  But NOW we have more safety in mind as well!  The US Federal Government has requirements for operating these high power class 4 lasers.  They might seem trivial, but they could save your eyesight!  Here is a run down of the new safety features to protect yourself and others:

• Key Switch – This key enables the laser. Turning on the key switch activates the laser, and the key remains locked in place. You can remove the key only when the laser is disabled.
• Remote Interlocks – This feature allows you to add switches to your enclosure so when it is open, the laser will automatically turn off.  Also provides for the addition of an E Stop button for the laser, which is great if you need to stop the laser super quick!  Add as many switches as you want to make a super safe area for your laser machine so nobody can accidentally look into the laser.
• Power Fault Protection – This feature might seem unnecessary, but consider this: your power goes out where the laser is located. After a power loss, you might forget the laser was left ON. When the power returns, the laser is disabled to protect you. Press the reset button to resume.
• Emission Indicator –  The small little LED on the front to let you know  your really super bright laser is on…  They require this in case you are using an infrared invisible laser.

Instructions for Connection on Sienci Longmill or Altmill CNC are Here:

LONGMILL and Altmill INSTRUCTIONS
