AVID CNC All in One Laser Bundle
All the choices to add a laser to your AVID CNC Machine in one place.
Check out the upgrade instructions HERE
After you checked out how to upgrade your CNC, simply choose your options below. Here are some details on them.
1. Pick your Laser Wattage:
Choose Your Power
| Laser Model | Power Output | Best For | Cutting | Photo Engraving |
|---|---|---|---|---|

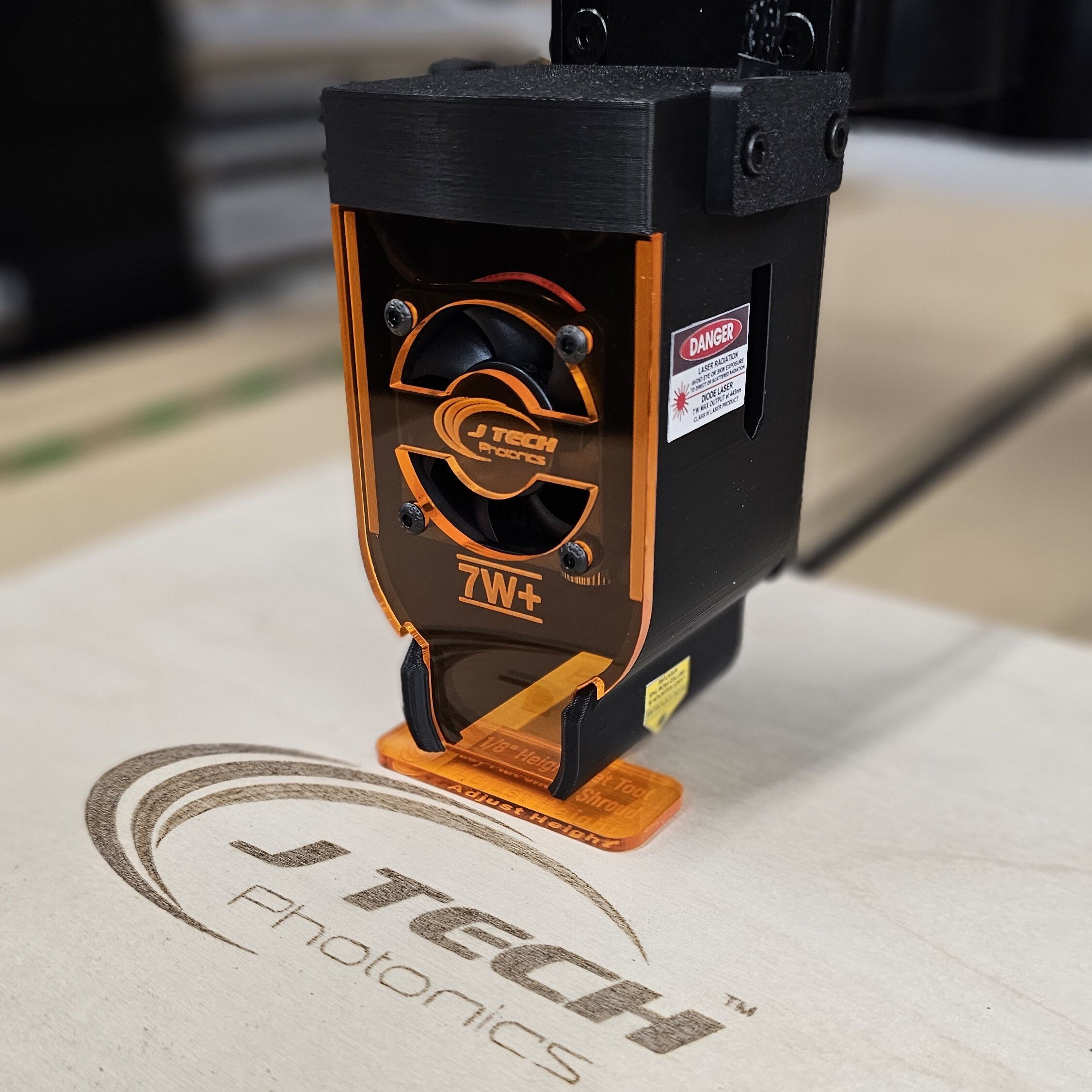

| 7W+ | Up to 7W | Detailed photo engraving, hobby use | ❌ | ✅ |

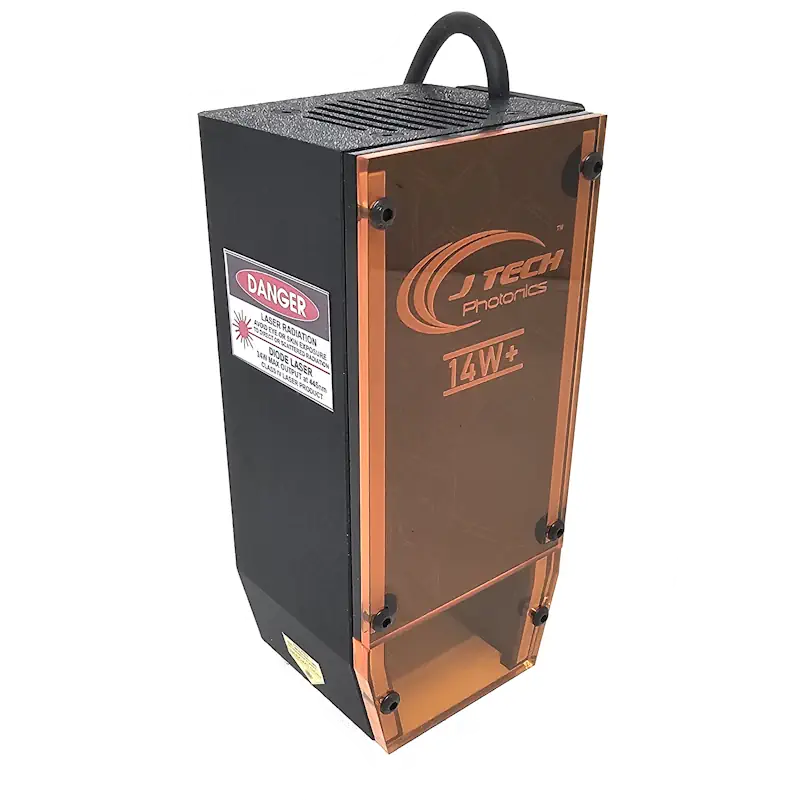

| 14W+ | Up to 14W | All-around engraving, light cutting | ⚠️ Light cutting | ✅ |

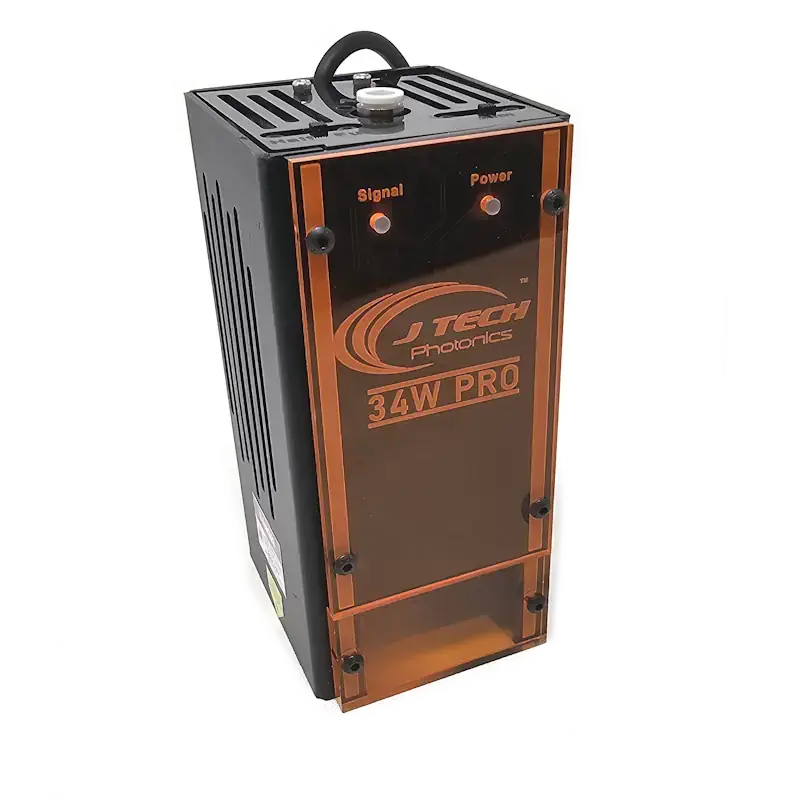

| 34W 2-in-1 PRO | Up to 34W | Cutting 1/4″ wood, production speed | ✅Faster | ✅ |

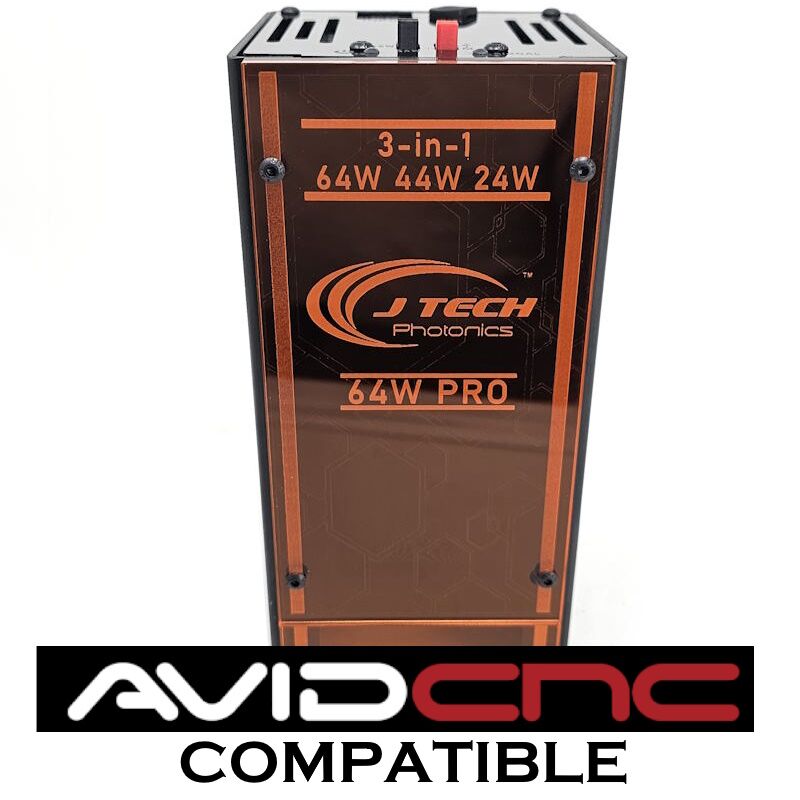

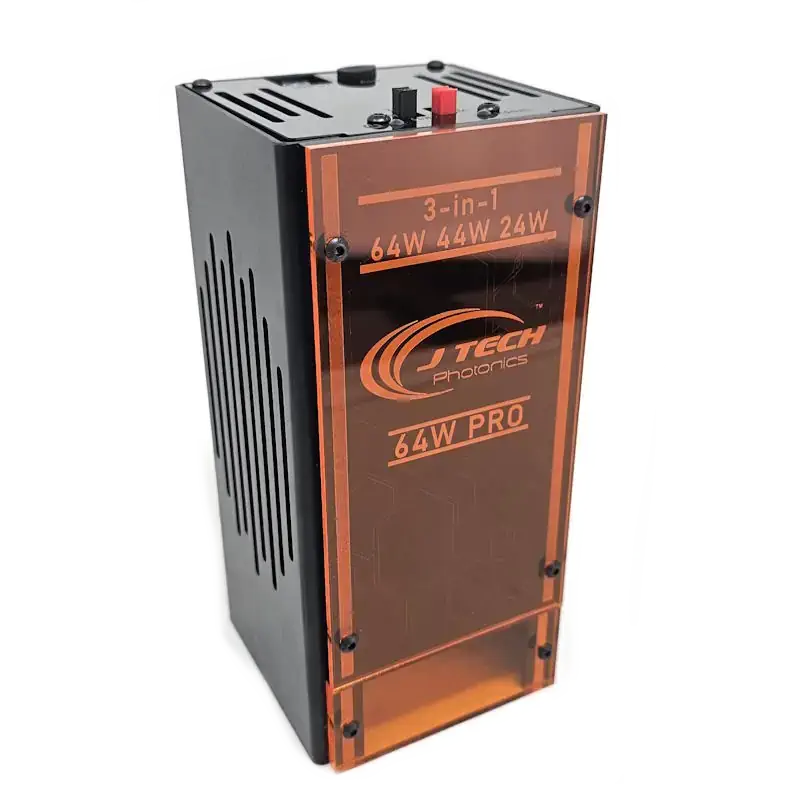

| 64W 3-in-1 PRO | Up to 64W+ | Industrial-level cutting and speed | ✅ Fastest | ✅ |
Engraving Laser Comparison
Cutting Laser Comparison
Photo Engraving Comparison
For a full detailed comparison, check out the blog post here. The short answer is no, there is not a discernable difference between any of the lasers when engraving photos.
2. Choose your mount configuration
There are four options to mount your laser to your machine.
1. Bottom of an 80mm spindle. You will need to make sure you have enough room on the bottom of your spindle to accommodate the laser.
2. DeWalt Router holder in the front. If you have the Dewalt router mount for the AVID, then you can use this mount for the laser. Not Available with the 44W Metal version.
3. The Makita and DeWalt clamp mounts fit onto the bottom of the router. Just make sure you router is pushed all the way down.
4. Generic Magnet Mounting plate. You can put this plate in front of your spindle or next to it on your Z gantry. Just fabricate a plate to put the magnet mount so it sits above the chuck when there is no laser on it and below the chuck when there is a laser on it.
3. Laser and Fan Extension Cable Length:
These laser and fan extension cables allow for longer distances from the laser driver to the laser. If you machine is large and you don’t want to mount the driver on the gantry, then these cables will allow for longer distances between the driver and the laser. This distance adds to the already 3′ laser and fan cable that comes standard.
Cable is 18 AWG with Molex Mini fit Jr. connectors on each side.
Lengths are 5′, 10′, 15′, 20 and 25′.
For the 4′ x 8′ AVID CNC machines, you will most likely need the 25′ extension cables.
4. Choose Your Power Cord:
We have options for U.S. (North America), UK (United Kingdom), EU (European Union), and AU (Australia).
The standard kit comes with:

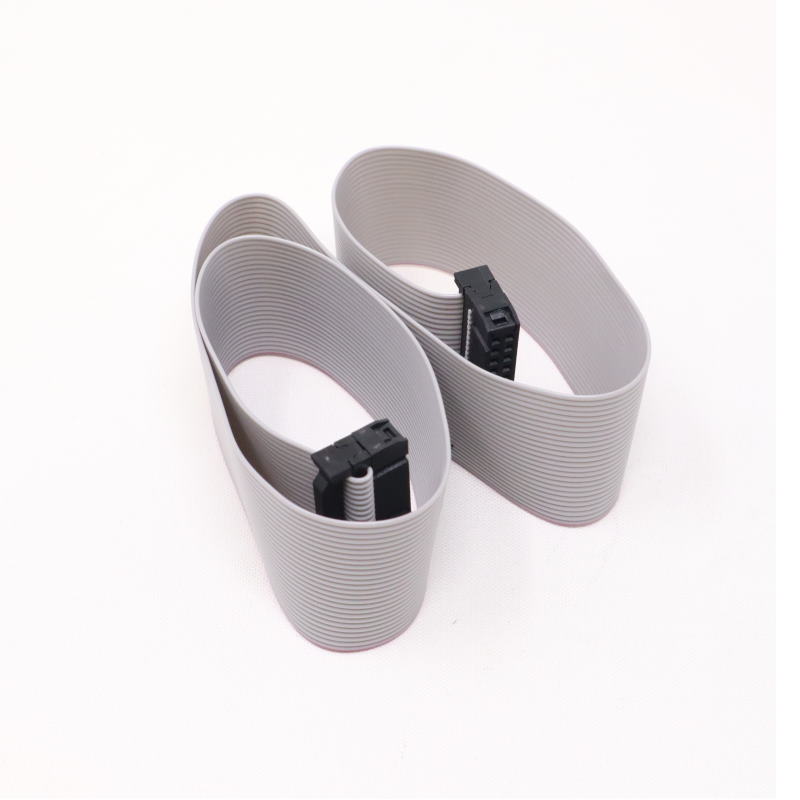

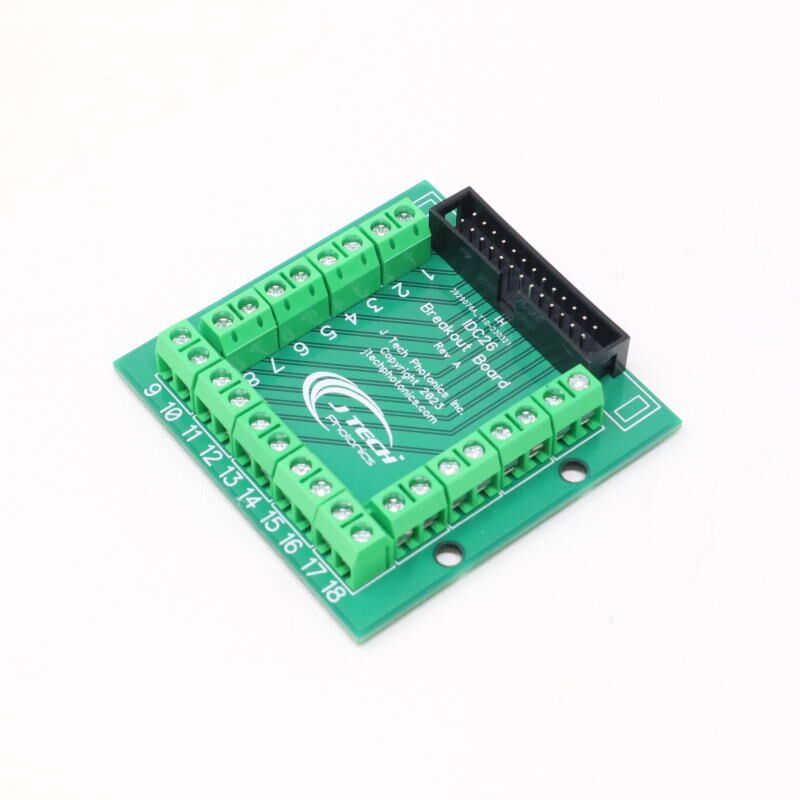

- AVID IDC 26 Breakout board. This board is specifically designed to allow for easy connection to the controller.
IDC26 Breakout Board – For AVID CNC
The J Tech laser upgrade is plug-and-play compatible with AVID CNC machines – Installation kits include everything you need:
- Mounting hardware
- Magnetic laser shroud

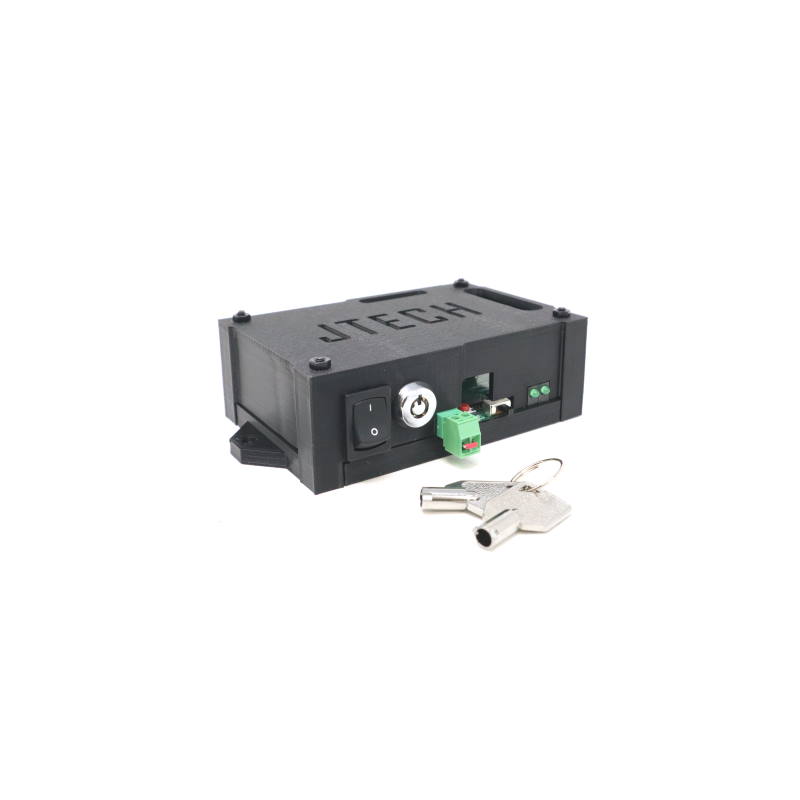

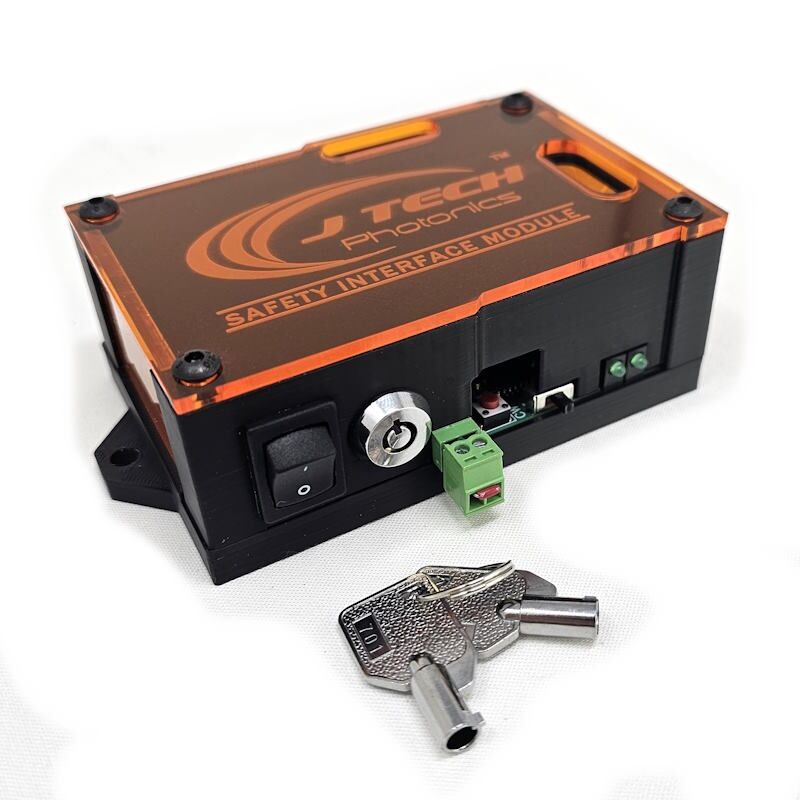

- Safety Interface Board (SI)

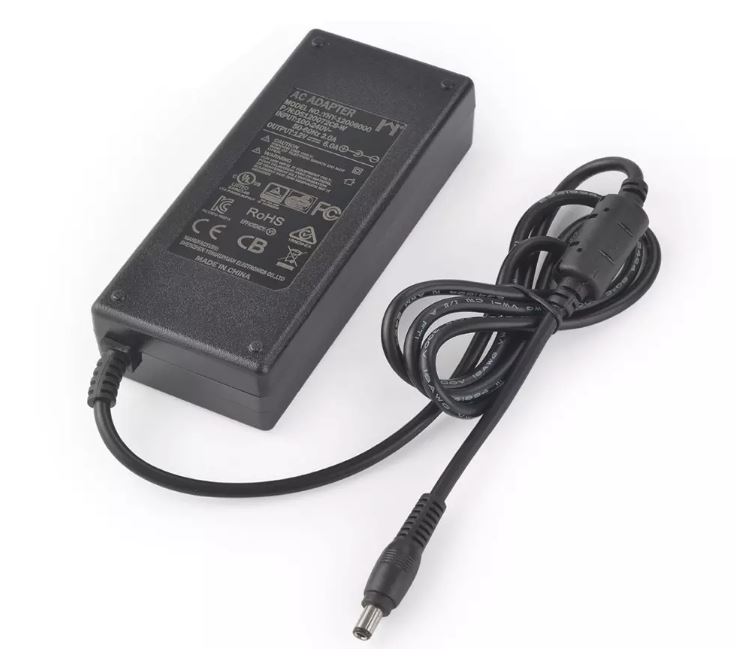

- Power supply
- Extension cables

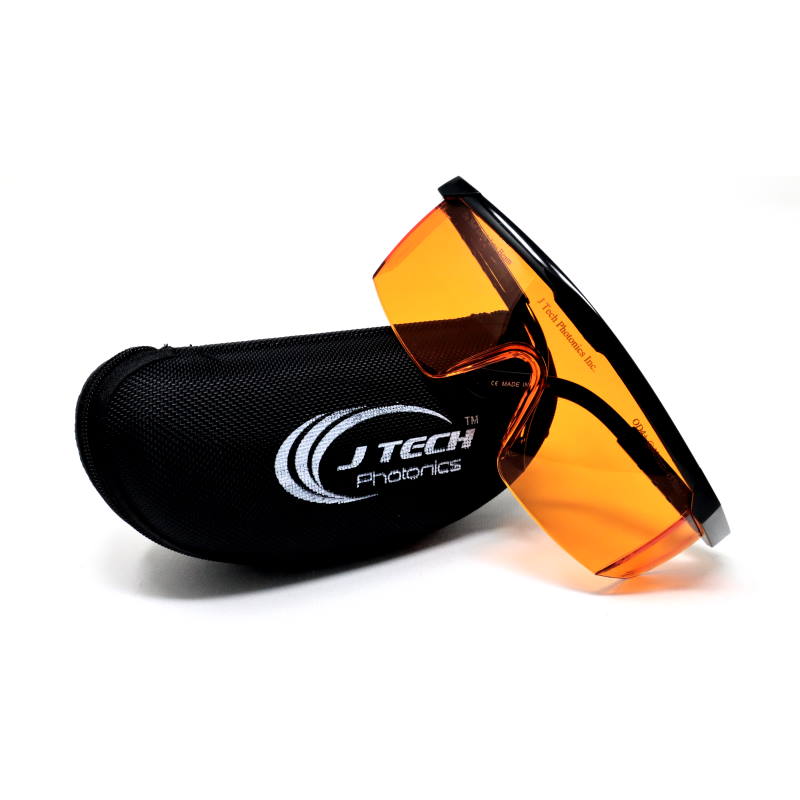

- OD4+ safety goggles
We offer direct support for upgrading these machines, and yes — our systems work perfectly with LightBurn and Vectric software packages.
Endless Application Possibilities
Upgrade your machine with a J Tech Photonics laser and unlock a world of creative and production-ready applications:
- Engrave and cut wood for signs, cutting boards, coasters, and custom décor
- Engrave and cut dark acrylic with crisp detail and smooth edges
- Mark anodized aluminum and coated metals for logos, labels, and artwork
- Personalize tumblers, cups, and drinkware using a rotary attachment
🧩 Easy Add-On for Shapeoko3
We’ve created dedicated install instructions and wiring diagrams for AVID CNC machines — including the ESS Mach3 and 4 Controllers. Your laser stays safe and off when not in use, thanks to integrated interlocks and safety board features.
🔒 Built-In Safety
J Tech Photonics prides itself on making our products the safest in the market.
Every system includes:
- Laser Enable Key
- Emergency stop/reset input
- Power Fault Protection
- Safety interlock for controller connection loss
- Emissions Indication
- Tilt Sensors (34W and 64W models)
- Compatible with ventilation and air assist systems
Shapeoko Laser Upgrade Air Assist Options
Air assist can really help with cleaner burns, faster cutting, and keeping your lens free of debris.
- The 64W, 34W and 14W+ laser comes with the integrated air assist nozzle, hose, and risers.
- For 7W+, the air assist nozzle kit is here: Air Assist Nozzle Kit
Pump not included. 55W Aquarium Pump for Cutting
🧑🏫 J Tech Has Your Back
You’re not alone — we support thousands of laser upgrade users and provide:
- Install guides, videos, and diagrams
- Email/phone support from real engineers
- LightBurn setup help
- Materials and speed guidance
Ready to supercharge your AVID CNC?
