CNC4Newbies All-in-One Laser and Mounting Kit Bundle

Description

CNC4Newbies All in One Laser Mounting Kit Bundle

All the choices to add a laser to your CNC4Newbies Machine in one place.  *Works well with the Designs by Phil DEMON controller*.

1. Pick your Laser Wattage:

There are 5 wattage levels to choose from ( 7W+, Dual PRO 14W SI, 24W Quad PRO , or the 44W OCTO PRO).  Most customers go with the highest power they can afford.  The lower power has a lower price, but will take longer to do the same burn level in an engraving.   The 7W+ laser is made for engraving fine detail, the Dual Pro 14W SI laser will be for faster engraving.  The 24W Quad Pro will be good for cutting and engraving and the 44W Octo Pro will be the best for cutting and fastest at engraving.

2.  Choose your mount configuration

There are four options to mount your laser to your machine.  You can mount it on the router/spindle holder in the front.

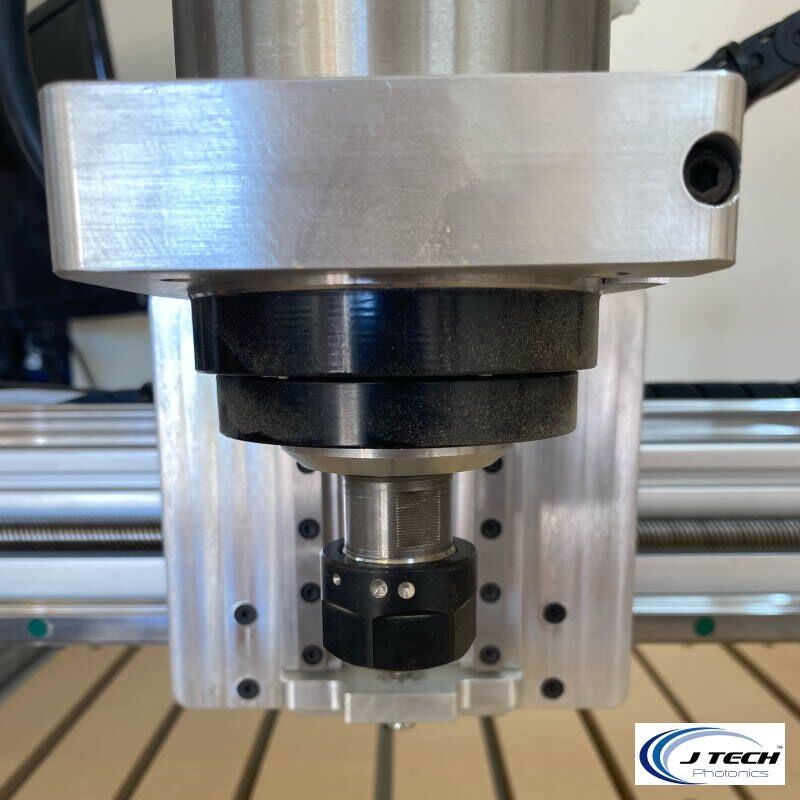

Or you can mount it to the bottom of the 80mm spindle.  You will need to make sure you have enough room on the bottom of your spindle to accommodate the laser.

The Makita and DeWalt clamp mounts fit onto the bottom of the router.  Just make sure you router is pushed all the way down.

3.  Laser and Fan Extension Cable Length:

These laser and fan extension cables allow for longer distances from the laser driver to the laser.  If you machine is large and you don’t want to mount the driver on the gantry, then these cables will allow for longer distances between the driver and the laser.  This distance adds to the already 3′ laser and fan cable that comes standard.

Cable is 18 AWG with Molex Mini fit Jr. connectors on each side.

Lengths are 5′, 10′, 15′, 20 and 25′.

For a 40″ x 40″ CNC4Newbies machine, you will need 10′ extension cables.  Measure out the distance from your gantry to where you will mount your laser driver near the controller.

4. Choose Your Power Cord:

We have options for U.S. (North America), UK (United Kingdom), EU (European Union), and AU (Australia).

The standard kit comes with:

• Laser Head with Magnetic Mount
• Laser Shroud or Magnet Base Plate
• Safety Interface Board or laser driver
• Power Cord
• Laser Safety Goggles for 445nm Lasers
• Laser Quick Connect Magnet Mount (*Metal mount for the 44W Laser)
• 3 foot Mini Molex Jr. Input Cable
• Mounting Screws
• Driver Mounting Sticky Squares
• Laser Extension Cables
• Zip Ties and Zip Tie Holders

Air Assist Option:

The 24W and 44W laser comes with the integrated air assist nozzle, hose, and risers.  Pump not included.  50W Aquarium Pump for Cutting

For 7W+ and 14W Dual PRO SI lasers, the air assist nozzle kit is here:  Air Assist Nozzle Kit

Features:

We still have all of the features that make this laser kit awesome – precision laser trimmed regulators for constant current to the laser, 0.01 tuning resolution, digital isolation, soft start, esd protection, current limiting, and the list goes on.  But NOW we have more safety in mind as well!  The US Federal Government has a list of things that are required for operating these high power class 4 lasers.  They might seem trivial, but they could save your eyesight!  Here is a run down of the new safety features to protect yourself and others:

• Key Switch – This key is needed to enable the laser.  When the key switch is turned on, the laser is enabled and the key CANNOT come out.  You can only remove the key when it is disabled.  This feature is good if you have curious children or have your laser in a shared area and want to limit use.  Just take the key out and hide it!
• Remote Interlocks – This feature allows for addition of switches to your enclosure so when it is open, the laser will automatically turn off.  Also provides for the addition of an E Stop button for the laser, which is always good for if you need to stop the laser super quick!  Add as many switches as you want to make a super safe area for your laser machine so nobody can accidentally look into the laser.
• Power Fault Protection – This one may seem like it is not needed, but hear us out.  Consider your power goes out in your area where the laser is located.  You were running your program and then everything is dark…  Power doesn’t come back on for awhile… long enough for you to forget that the laser was left ON!  You come back and are checking your laser and boom, the power is back on, right when you are looking straight at it.  Well, don’t worry because the laser will be disabled whenever the power to the driver is lost.  Press the reset button and you are back in action!
• Emission Indicator –  The small little LED on the front to let you know  your really super bright laser is on…  They require this in case you are using an infrared invisible laser.
